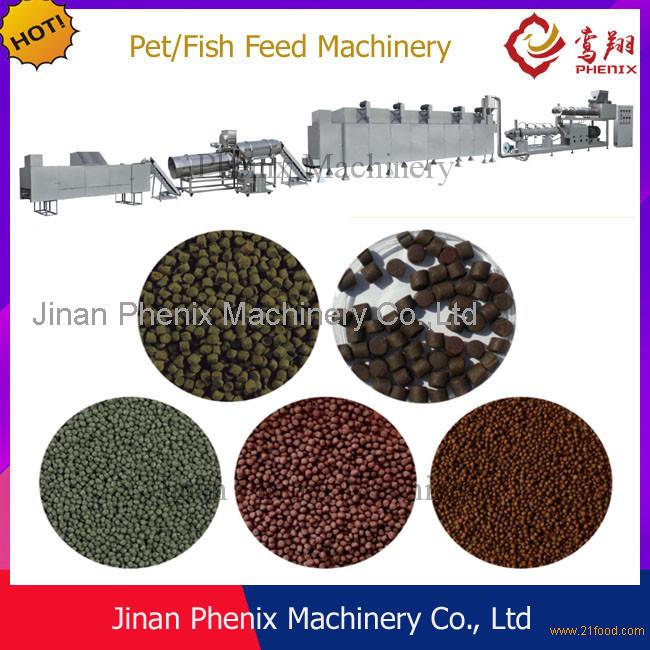

Fish feed machine

1. Description:

Fish feed machine can be used to producing floating fish feed and sinking fish feed. The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.

2. Raw materials: adopts  corn flour, soya meal, fish meal etc. as raw materials

3. Products: This line can be used to produce fish pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food.

4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h

5. Flow chart:Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: Stainless Steel #304, thickness:1.2mm；Main Motor: Siemens China brand ;Main Electric elements: Siemens or CHNT brand;Inverter: Delta brand

8. Technical Parameters

Model     Installed power      Real power     Output    Dimension

PX65      81.5kw    53kw      100-150kg/h   21000x1200x2200mm

PX70      115kw     76kw      200-240kg/h   23000x1500x2200mm

PX85      181kw     117kw     400-500kg/h   28000x3500x4300mm

PX95      135kw     100kw     1000kg/h     30000x3500x4300mm

PX115     165kw     115kw     2000kg/h     30000x3500x4300mm

9. Package: Outside package: Standard export wooden case. Inner package: stretch film
