I、Name：Auto L type film cutting and packing machine
II、Usage：L type automatic sealing and cutting packaging machine is a fully automatic unmanned packaging machine, automatic film feeding and punching device, manual adjustment of the film guide system and manual adjustment of the feeding and conveying platform, can be used with the packaging line, feeding, bagging, sealing and cutting, shrinking automatically.

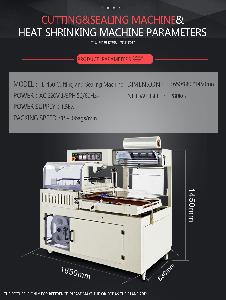

III、Main parameter：
| Name
|
Auto film cutting machine
|

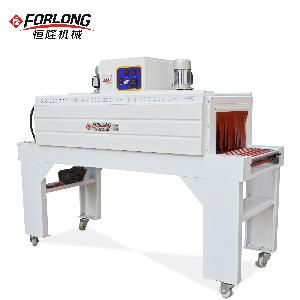

Thermal shrink wrapping machine
|
| Model
|
FL-450
|
BS-4522N
|
| Power
|
220V/1.5kw
|
380V/10kw
|
| Packing speed
|
20-40pcs/min
|
20-40pcs/min
|
| Sealing knife size/
Tunnel size
|
L550×W450(mm)
|
L1000×W450×H250(mm)
|
| Packing size
|
L+H≤400、W+H≤330、H≤120
|
W≤430×H≤220(mm)
|
| Machine dimension
|
L1700×W960×H1400(mm)
|
L1300×W715×H1455(mm)
|
| Air source
|
6-8kg
|
No need
|
| Weight
|
225kg
|
180kg
|
IV．Equipment advantages and characteristics：
Equipment advantages：
1. Efficiency：It only needs two men if adopt auto L type cutting and sealing machine. Color box packing speed is 1000-1200pcs/hour, which is equivalent to the amount of manual packaging for 5 person per hour.
2. Economy：1 set of full-automatic l-type sealing and cutting machine can save 3-5 manual labor, and the cost can be returned within half a year;Shrink film material can save 1-3 cents cost per color box.
3. 3. Purpose: using Forlong automatic L-type sealing and cutting machine to replace manual operation can not only enhance your enterprise strength, improve the production efficiency of the enterprise, but also save more costs for your enterprise; Forlong machinery is responsible for every device sold to make your packaging faster and more perfect.
Product features:
1. The complete set of machine is truly connected to the unmanned operation of the production line;
2. When the size of packaging material changes, it is very simple to adjust, without changing the mold and bag maker;
3. Automatic feeding, the length can also be automatically adjusted by the combination of electric eye and timer.Equipped with induction motor, automatic waste coiling;
4. Sealing and cutting knife has automatic protection function, which can effectively prevent miscutting of packaging;
5. Temperature controller adopts imported digital display temperature controller, built-in PID function, sealing knife temperature is very sensitive and accurate, can be set at will.Do not worry about temperature imprecision damage to the product;
1. The sealing knife is made of U.S. Dubon Teflon coated anti-sticking and high-temperature resistant aluminum alloy knife, and the sealing line is firm， no crack, no coke, no smoke, no pollution.
2. Equipped with imported horizontal and vertical inspection photoelectric, it can easily complete thin and small packages sealing and packaging operations.
3. The sealing and cutting part of the machine is equipped with plexiglass protective cover and automatic alarm function, which greatly improves the safety of operators.
