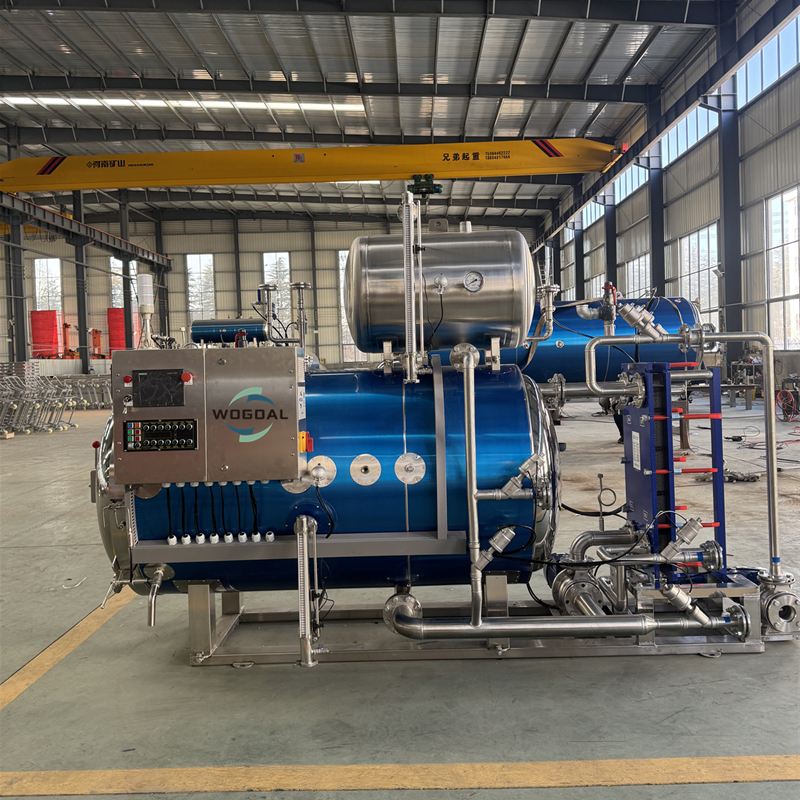

Food Processing Water Spray Retort Machine for Pouch Food,China Wogoal price supplier

Food Processing Water Spray Retort Machine For Pouched Food

Features:

Scope of application :

1, plastic container: PP bottles, HDPE bottles.

2, soft bag Packing: foil bag, transparent bag, vacuum bag, high temperature cooking bags, retort pouch.

3, Steel container: tin cans

4.galss bottles

Working principle:

First filling the retort with a small amount of process water and the water level is maintained below the basket bottom level. Then the process water is drawn from the bottom of the retort by a high capacity circulation pump and spray from nozzles located along the top and sides of the retort.

Simultaneously the steam valve opens and the steam is introduced into the retort through the steam spreader on the bottom of the retort directly heating those process water spraying from nozzles and making the temperature inside retort evenly.

And when the temperature inside retort reaches the programmed sterilization temperature, it will be kept during the sterilization process. At the same time the pressure in the retort also will be kept by adding or venting compressed air as needed. Finally thecooling water through heat exchanger will continually make those sterilization water cool down until the sterilization process is finished.

Technical Parameters:

Those retort sterilizers in the chart are standard configurations.

We also can customize the retort machine according to your specific requirements or your drawing.

Production for canned food retort machine :

a.) Design: All the machines are carefully designed by our mechanical engineers who are rich of experience in this field. We accept special design according to customer’s request.

b.) Processing & Assembling: Parts processing, assembly, testing are based on standard test.

c.) Trial Run: Each machine has to be tested before its delivery.

Service & Installation for canned Food sterilization retort :

a.) Consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Debugging of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;

e.) Training of equipment maintenance and operating personally;

d.) New production techniques and formulas;

e.) Provide 1 year complete warranty and life-time maintenance service.
