Food online > Products > Food Ingredients > Cocoa Ingredients >

Food standard rotary cocoa powder screening machine,China HENG SHUN price supplier

Food standard rotary cocoa powder screening machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Week remark: urgent o

Payment Terms: US $500 - 4,999 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

1.Food standard rotary COCOA POWDER screening machine
2.Certificate:ISO9001:2008, CE, BV
3.Direct manufacturer,no price link

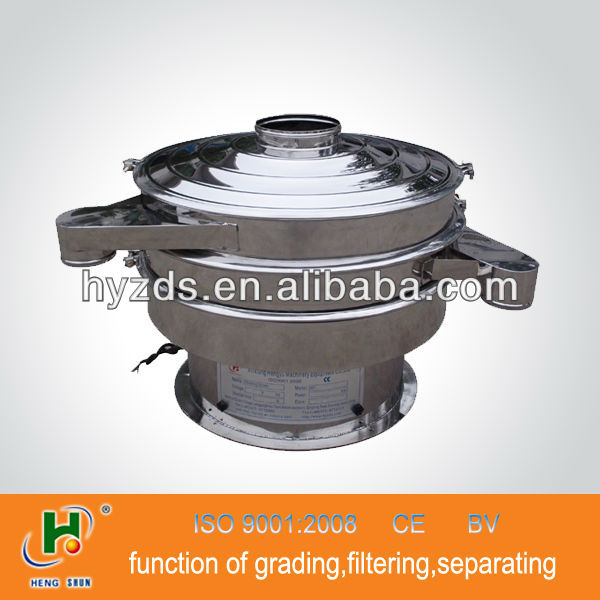

Food standard rotary cocoa powder screening machine

Introduction

The cocoa powder screening machine from Xinxiang hengyu machinery co., ltd

has absorbed advanced producing and processing technology, which designed

to grading material into different levels. The machine is enjoying a good

reputation from our customers, and special customization is accepted.

If you need more information, please do not hesitate to contact us!

The techinical parameters

Model		Power (KW)	Effective diameter (mm)	Dimensions(mm)	Layer
HY-400	-1S	0.18	360	580×580×560	1
	-2S			580×580×670	2
	-3S			580×580×780	3
HY-600	-1S	0.25-0.55	560	800×800×750	1
	-2S			800×800×890	2
	-3S			800×800×1030	3
HY-800	-1S	0.55-0.75	760	900×900×750	1
	-2S			900×900×890	2
	-3S			900×900×1030	3
HY-1000	-1S	0.75-1.5	930	1160×1160×810	1
	-2S			1160×1160×950	2
	-3S			1160×1160×1090	3
HY-1200	-1S	1.10-1.75	1130	1360×1360×885	1
	-2S			1360×1360×1050	2
	-3S			1360×1360×1275	3
HY-1500	-1S	1.50-2.20	1430	1850×1850×990	1
	-2S			1850×1850×1185	2
	-3S			1850×1850×1380	3
HY-1800	-1S	2.20-3.0	1730	2200×2200×1050	1
	-2S			2200×2200×1250	2
	-3S			2200×2200×1450	3

The features

1. Greater accuracy- Full material flow on all mesh screens providing accurate grading and separation

2. Ease of maneuverability- The separators can be installed Omni-directional wheels to be moved easily

3. Improves your product quality- eliminates oversized contamination from your powders.

4 .Seven popular sizes (400/600/800/1000/1200/1500/1800mm) to fit any requirement, space-saving thru high volume

5. Reduces cleaning downtime - The unit disassembles quickly and easily without the need for tools. All contact parts are fully washable

The function of rotary vibratory sieve

1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquid for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.

Application in

1. Chemical industry: resin pigment, medicine, grease, fire-extinguishing agent, rubber and plastic.

2. Grinding material, glass, ceramic industry: silica sand, alumina, grinding material, glass powder, refractory material.

3. Food industry: sugar, salt, alkali, gourmet powder, starch, Milk powder, bean milk, Yeasts must, pollen, food additive.

4. Paper-making industry: whitish soil slush, black and white fluid, filling fluid, waste fluid and paper-making fluid.

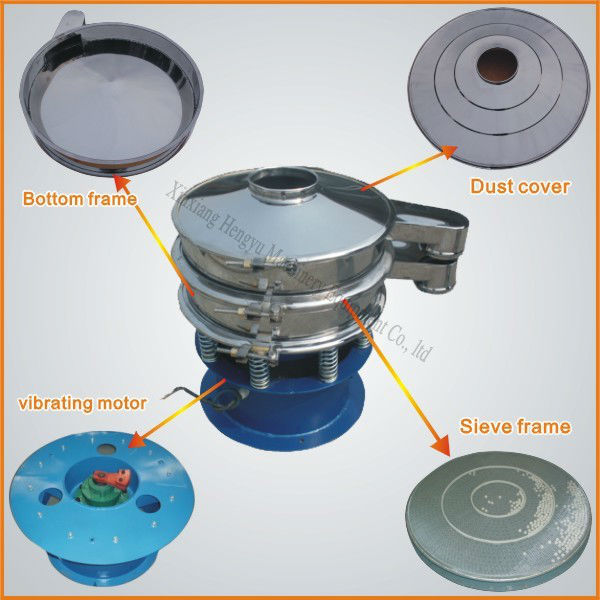

The pictures

According to your different capacities, 7 standard models of vibrating screen can be offered to you.

Condition:	New	Type:	Circular	Application:	Ore
Place of Origin:	Henan China (Mainland)	Brand Name:	HENG SHUN	Model Number:	HY-1000-1S
Voltage:	220v,380v,415v,or as your requirement	Power(W):	0.75KW	Dimension(LWH):	11601160810mm
Weight:	210kg	Certification:	ISO9001:2008, CE, BV	Warranty:	one year
After-sales Service Provided:	Engineers available to service machinery overseas	Shape:	Round	Business type:	Manufacturer
Function:	Sieving, separating, grading	Customization:	Accept	Cleaning system:	Rubber ball
Capacity:	From 300kg to 5t per hour	Screen mesh:	5 - 500mesh	Power source:	Vibration motor
Noise level:	Low 60db	Certificate of origin:	Accepted
