Free-falling dart impact tester of plastics or metals ASTM standard SYSTESTER manufactures,China SYSTESTER price supplier

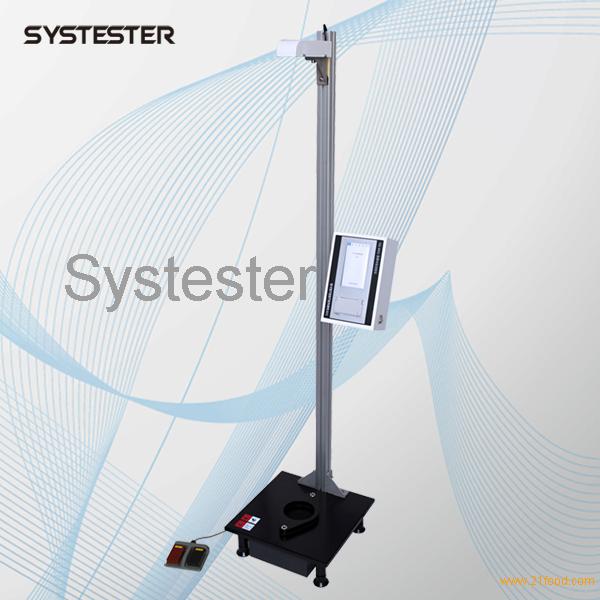

Free-falling dart impact tester of plastics or metals ASTM standard SYSTESTER manufactures

FOB Price:Price can be negotiated

Payment Terms: TT/LC

Update Time:2023-04-28

Contact Supplier

Product Description

Free-falling dart impact tester of plastics or metals ASTM standard SYSTESTER manufactures is used for determining of the energy causes the plastic film or sheets to fail under specified conditions of impact of a free-falling dart.

Free-falling dart impact tester of plastics or metals ASTM standard SYSTESTER manufactures-- Features

1.Patent technology, large size touch screen operation, Micro-printer built- in.

2. High performance pneumatic sample clamp.

3.Foot pedal operation available

4. Foot pedal operation available

5. Falling ball test available.

6. Multiple units & curve results can display.

7. RS232 communication port. (optional)

8. Designed based on various standards.

9. Result statistics.

10. Professional computer software support.(optional)

Free-falling dart impact tester of plastics or metals ASTM standard SYSTESTER manufactures

Technical indexes

Test method: Method A, method B, others

Dart mass: Method A: 50~ 2000g

Method B: 300~2000g

Unit dimension: Method A: 450mm(L)×450mm(B)×1365mm(H)

Method B: 450mm(L)×450mm(B)×2160mm(H)

Result accuracy	0.1g(J)
Sample clamp	Pneumatic
Gas source	less than 1.1MPa(provided for yourself)
Sample size	not less 150mm*150mm
Power supply	AC 220V 50Hz
Net weight	55kg

Standards

GB 9639、 ASTM D1709、 JIS K7124

Configuration

Delivery: Method A, foot pedal, touch screen, micro printer

Optional: Method B, professional computer software, communication cable, falling ball test accessories.
