Freeze dryer for FD food production

FOB Price:Price can be negotiated

Production Capacity:5 sets per month

Payment Terms: FOB Ningbo

Update Time:2025-07-10

Contact Supplier

Product Description

FDG series food freeze dryer

Freeze dryer
1.advance freeze dryer
2.steady operation freeze dryer
3.freeze dryer for many food
4.whole freeze dry line

Main application of food freeze dryer:

Vacuum freezing and drying technology is currently the most advanced technology for food dehydration processing in the world. Compared with the commonly used drying method, the freeze-dried food produced with this technology features long period of quality assurance, good re-hydration nature, good-looking color, good flavor, taste and high content of nutritious components. The dried food basically remains unchanged in its volume and shape, looks like sponge and has no shrinking. This drying technology can be widely used in process of vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage, exemplar etc.

Freeze dryer for FD food production

Main part of food freeze dryer:

FDG series vacuum cryogenic drying equipment mainly includes food pre-freezing system, drying bin system, heating system, vacuum system, refrigerating system, material conveying system, medium system, pneumatic system, cleaning and sterilizing system.

Main technical parameters of food freeze dryer:

Parameters	Model	FDG-0.5	FDG-10	FDG-20	FDG-50	FDG-100	FDG-180	FDG-200	FDG-280
Drying area (m2)		0.5	10	20	50	100	175	200	275
Mean dehydrating amount (kg/h)		0.6	12	20	50	100	175	200	275
Size of material tray (m)		310×540×30	745×635×30	435×555×30	540×635×30
Number of material tray (pcs)		3	21	80	144	288	504	576	792
Size of pot (M)		1.5×1.6×1.6	φ1.4×2.1	φ1.8×2.4	φ2.4×4.8	φ2.4×8.9	φ2.4×14.8	φ2.4×16.6	φ2.4×21.9
Operation vacuum (pa)		13.3~200		26.6~200
Heating plate T (°C)		Normal temperature~+120°C
Electric heating (Kw)		2	21	40
Steam consumption (Kg/h 0.7Mpa)					140	270	470	540	750
Cold load consumption (Kw)		1.5	21.6	36	90	180	310	360	490
Installed power (Kw)		6.5	55.8	104.5	41.2	69.7	102.5	117.5	125.5

Parameters	Model	FDG-0.5	FDG-10	FDG-20	FDG-50	FDG-100	FDG-180	FDG-200	FDG-280
Drying area (m2)		0.5	10	20	50	100	175	200	275
Mean dehydrating amount (kg/h)		0.6	12	20	50	100	175	200	275
Size of material tray (m)		310×540×30	745×635×30	435×555×30	540×635×30
Number of material tray (pcs)		3	21	80	144	288	504	576	792
Size of pot (M)		1.5×1.6×1.6	φ1.4×2.1	φ1.8×2.4	φ2.4×4.8	φ2.4×8.9	φ2.4×14.8	φ2.4×16.6	φ2.4×21.9
Operation vacuum (pa)		13.3~200		26.6~200
Heating plate T (°C)		Normal temperature~+120°C
Electric heating (Kw)		2	21	40
Steam consumption (Kg/h 0.7Mpa)					140	270	470	540	750
Cold load consumption (Kw)		1.5	21.6	36	90	180	310	360	490
Installed power (Kw)		6.5	55.8	104.5	41.2	69.7	102.5	117.5	125.5

*Note: for FDG-50 and above models, the power of Refrigeration units are NOT included in the installed power.

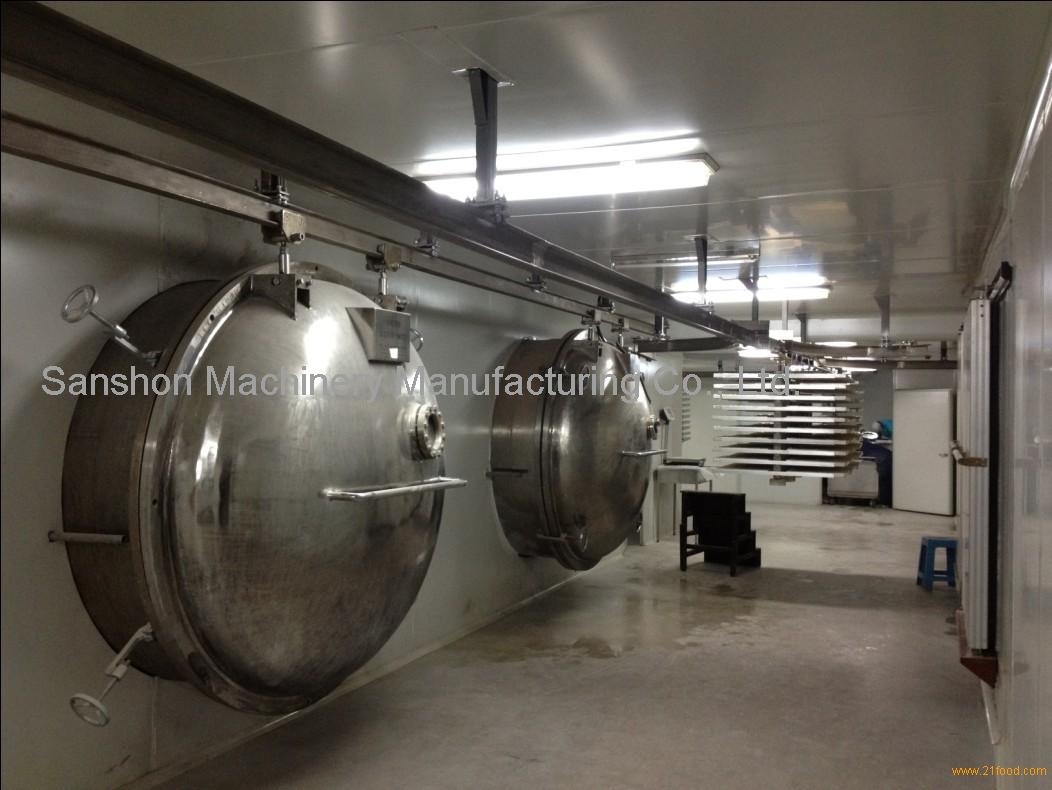

Sample Production Line plan layout

Freeze dryer for FD food production
