Friction Tester MCJ-03 is used for test surface abrasion resistance for printing inks, PS version of the photosensitive layer, paper packaging, print, varnish and related products. Effective analysis problems like poor print rub resistance,ink layer falls off, PS version of the seal force low resistance issue, coating hardness etc..
Friction Tester MCJ-03 adopt latest MCU control system, the user simply clamping sample to be tested, the instrument will automatically complete the whole test process. It can adjust CVT test speed and meet the requirements of different standards on the test speed. Friction tester is widely used in printing, packaging enterprises, general administration of quality supervision, inspection institutions and other units.

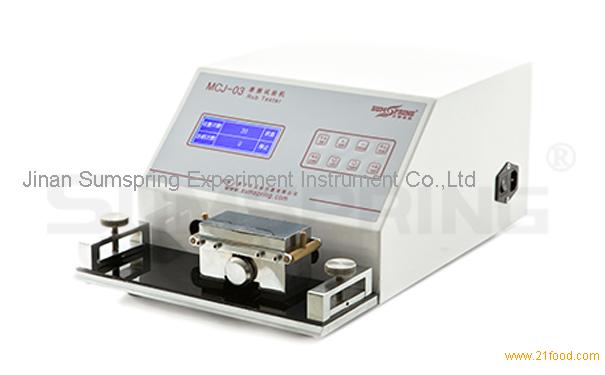

Friction Tester MCJ-03
Test principle
Friction test on printing ink or light oil surface by cleaning offset paper under certain pressure. Test sample surface printing ink density for a certain numbr of times,comparision with the former ratio is the ink film abrasion resistance.
Application
| Product
|
Name
|
Application
|
|
|
Print
|
Friction tester test surface layer resistance for printing ink, PS version of the photosensitive layer, paper packaging, printing, light oil and related products. Analysis anti - wipe performance, ink layer off, PS version of the resistance for printing products.
|
|
|
Ink
|
Test surface abrasion resistance for printing inks
|
|
|
Paper packaging
|
It is used for test surface layer resistance for printing ink, PS version of the photosensitive layer, paper packaging, printing, light oil and related products .Analysis anti - wipe performance, ink layer off, PS version of the resistance for printing products.
|
|
|
Containers
|
Friction tester test surface layer resistance for printing ink, PS version of the photosensitive layer, paper packaging, printing, light oil and related products . Analysis anti - wipe performance, ink layer off, PS version of the resistance for printing products.
|
Technical feature
1.Microcomputer control, PVC operation panel
2.Friction tester with membrane switch and LCD display, user quickly and easily operate and view data
3.Key input parameters with power off memory function
4.Embedded Standard friction plate to ensure uniformity of friction area
5.Test speed can be set to meet different customer requirements
Main Specification
| Technical parameter
|
|
| Friction Pressure
|
20±0.2N（Different Pressure Customizable）
|
| Friction Speed
|
0—60cpm (Standard：43cpm)
|
| Friction Area
|
155(L)mm×50(B)mm
|
| Friction Stroke
|
60mm
|
| Friction Times
|
0～999999 Times
|
| Specimen Size
|
230(L)mm×50(B)mm
|
| Machine size
|
490mm×320mm×200mm
|
| Weight
|
23kg
|
| Environment requirements
|
|
| Environment temperature
|
15℃-35℃
|
| Relative humidity
|
No more than 70%，no dewdrop
|
| Power supply
|
220V,50Hz
|
Standards
GB/T7706-2008
Configuration
Friction tester host, standard friction block
Jinan Sumspring Experiment Instrument Co., Ltd is a high tech innovation enterprise focus on laboratory analysis instrument research ,development and sales. Founded in 2007, our company focused on quality control unit, food industry, pharmaceutical industry, packaging and printing industry, adhesive industry, household appliances and other packaging materials and provide first-class test equipment and comprehensive quality control solution.
Sumspring technical team has been independent research,development, innovation and production equipment to meet requirements both domestic and abroad. it is also takeg ISO, ASTM, TAPPI and other international standard specifications into consideration . A number of new technologies, new invention patent certificate, have complete independent intellectual property rights.
Sumspring has a high-quality R & D team and production team, the instrument designed from the beginning to read a variety of domestic and international testing standards, to meet the equipment used in all areas of domestic and international packaging, food, pharmaceutical, industrial and other industries.
Sumspring laboratory has a professional technical service team, with independent research and development of more than 40 sets of advanced equipment, testing tools, and other accessory. Not only provide accurate and reliable test data objectively and fair, also establish learning exchange platform for institutions, research institutes , medium and large enterprises.
Sumspring establish product quality risk management and control system for the production of enterprises, government regulators to help the development of relevant standards and regulations. We are also concerned about the international advanced packaging test methods to help domestic enterprises and government departments to better enhance the production and management levels. Contribute to the quality and safety of the food and drug packaging industry.
