FRP 300 LPH Reverse Osmosis Systerm for Cookie Production Line,China OEM price supplier

RO water system description

RO water purifier system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.

RO water system  Parameter

Reverse Osmosis system substantially removes most suspended and dissolved matter from water.
Capacity of pure water: 250-100 000 LPH
Electrical power: AC 220V 18A/ 380V 9A 50Hz
Multi-phases pump: CDL2-180/2.2 KW 1 item
Beforehand filter: 2 itmes
PP sediment membranes filter: 3 items
Booster pump: 1 item

Rated power: 2.0Kw/H

Desalting rate: 97-98%

Water recovery rate: 50-70%

Conductivity of raw water:  ≤400μs

Conductivity of pure water: ≤10μs

RO water system process

RO water system function

1. Automatically and manually wash RO membrane,

2. Manually wash RO memebrane with chemicals on machine,

3. Machine automatically stops when high water level of purified water, and runs when low level,

4. Multi-stage pumps protect the machine when lack of water,

5. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc

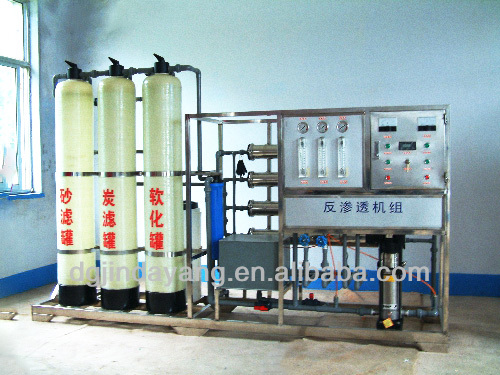

RO water system Component  list

Standard Features
Stainless Steel 304 Frame
Sand Filter FRP Tank with Mechanical Control Valve
Carbon Filter FRP Tank with Mechanical Control Valve
Water Softener FRP Tank with Mechanical Control Valve
Thin Film Composite Membranes
Stainless Steel 304 RO Vessels Seamless
Horizontal Feed Pump
Vertical High Pressure Pumps
PLC Control
Power On/Off Switch
5 Microns Pre-filter
Product Water Flow Meter
Concentrate Water Flow Meter
High Pressure Pump Inlet Pressure Gauge
High Pressure Pump outlet Pressure Gauge
Concentrate Outlet Pressure Gauge
Low Pressure Switch
High Pressure Switch
Heavy-duty PVC Piping
Level Control On/Off
Automatic Flush
Low Pressure Shut-Off
Optional UV Sterilizer , Ozone and SS Jacket
NOTE: 110V/60Hz and 220V/50Hz Available. Standard Poly-Wood Package

RO water system application

The daily Drinking Water for community, school, hotel, factories etc
Desalination of water used in production techniques
Water used in Beverage ,food industry etc
Mobile working organizations such as ocean voyages, drilling units, field exploration etc
Daily drinking water used in islands, military  posts, high saline and alkaline lands, sea water encroached areas, also can be applied in industry, electronic field, food etc
