fruit juice pasteurization machine,China KQ price supplier

fruit juice pasteurization machine

FOB Price:Price can be negotiated

Production Capacity:10 Unit/Units per Week

Payment Terms: US $3,800 - 40,000 / Unit

Update Time:2022-02-11

Contact Supplier

Product Description

Tubular UHT Sterilizer
Good Pasteurizer effect
Fully Automatic
small energy consumption

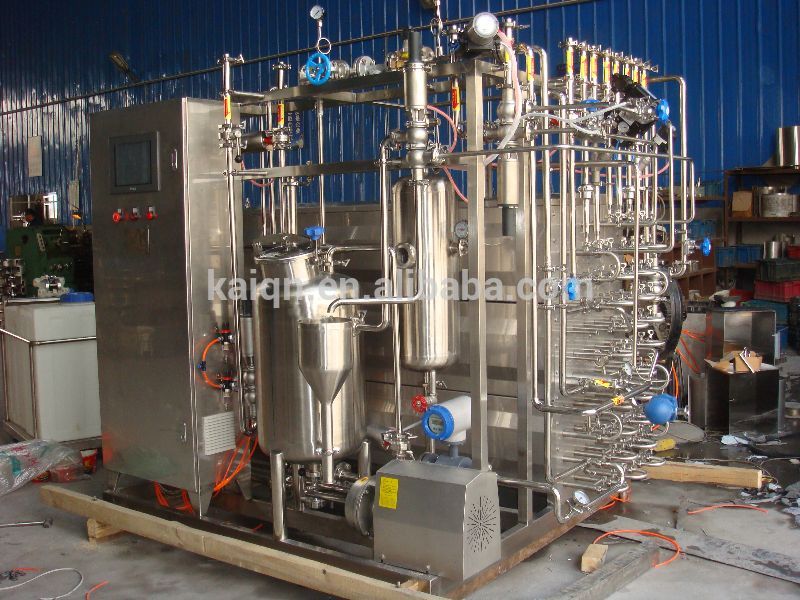

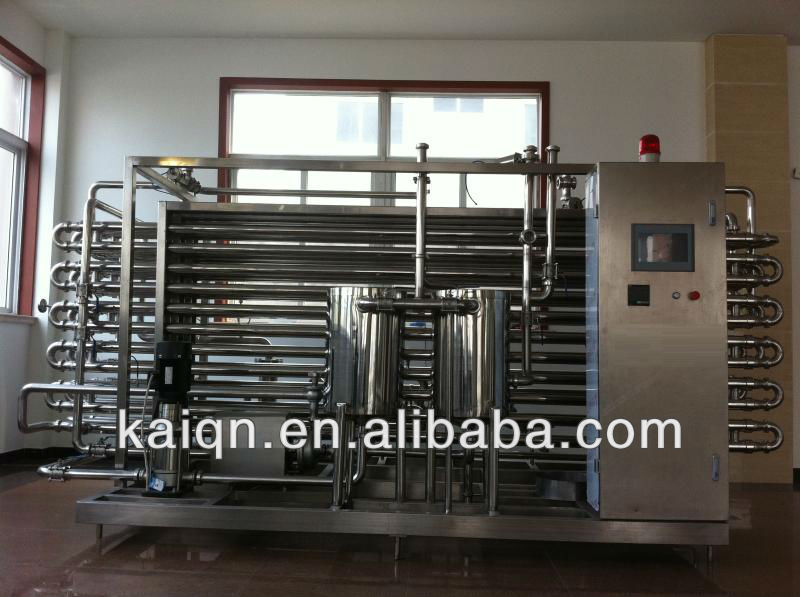

UHT Tubular Sterilizer

Compared to other sterilizers, the UHT Tubular Sterilizer has the following characteristics:

1. High heat effect: 90% of the heat can be recycled after heating the material.

2. The temperature gap between the heating medium and the material is small, thus a gently heating is possible. The heating pipes are in waves. The material and the heater are both in flow stage.

3. High fully automatic processing: can automatically be controlled and record from CIP cleaning to pipe sterilizing and the material sterilizing.

4. Reliable Sterilization temperature control and precision: Automatically control the affecting sterilization temperature system such as the steam pressure flow, and material flow.

5. The inside of the pipes are polished with advanced technology. The pipes are automatically jointed. In order to ensure a fully aseptic condition, the UHT Tubular Sterilizer adopts an automatic cleaning system with a whole process sterilization.

6. Strong and reliable safety and productivity system. The steam, hot water and material flow pressure are all under a fully automatic protection and alarm system.

7. The main fittings such as material pump, hot water pump, valves, electric and control equipments, and all other processing equipments are all world famous brands.

This pasteurizer can be combined with a special yogurt sterilizer if requested.

It fits to various aseptic packaging such as: Aseptic carton, plastic film, PET bottles, etc. especially for liquid milk production

Model	OR-1T	OR-2T	OR-3T	OR-4T	OR-5T	OR-6T	OR-8T	OR-10T
Production capacity (T/H)	1	2	3	4	5	6	8	10
Heat exchanging area (m2)	20	28	35	45	52	60	75	88
Material inlet temperature (°C)	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15
Material outlet temperature (°C)	≤25	≤25	≤25	≤25	≤25	≤25	≤25	≤25
Designed temperature (°C)	150	150	150	150	150	150	150	150
Heat preservation time	5s	5s	5s	5s	5s	5s	5s	5s
Inlet temperature of ice water (°C)	≤2	≤2	≤2	≤2	≤2	≤2	≤2	≤2
Multiple of ice water	3	3	3	3	3	3	3	3
Multiple of cooling water	2	2	2	2	2	2	2	2
Multiple of hot water	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Steam inlet pressure (Mpa)	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
Maximum steam consumption (kg/h)	200	250	330	410	480	550	650	780
Weight (kg)	1600	2000	2400	2600	2800	3000	3800	4200

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	KQ
Model Number:	1000L	Type:	Other	Voltage:	380V50HZ,380V,380V50HZ
Power(W):	4.5KW	Weight:	1680KG	Dimension(LWH):	330018002000
Certification:	CE	Warranty:	one year	After-sales Service Provided:	No overseas service provided
Processing::	Sterilizer,polish	Sterilizing time:	adjustable on PLC touch screen	Processing Types:	Milk
