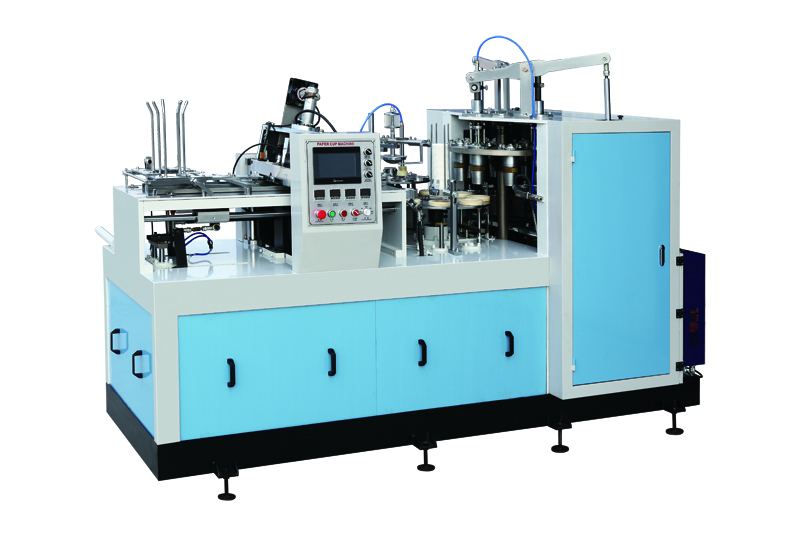

Our newly designed FUHN-N12 paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
Technical specification
Model
|
FUHN-N12
|
Paper Cup Size
|
3-12oz(Mould changeable)
|
Raw Material
|
180-300g/?(One-side or Two-side PE (polyethylene) film coated / laminated paper)
|
Suitable paper weight
|
180-300 g/?
|
Productivity
|
60-75 pcs /Min
|
Power Source
|
220V/380V 50Hz
|
Total Power
|
3.5 KW
|
Total Weight
|
2500KG
|
Package Size(L x W x H)
|
2600x1200x1750mm(LxWxH)
|
Working Air Source
|
0.4-0.5m³/min
|
Making Double PE coated paper cups, need to buy an air compressor
|
Established in 1990, Ruian Fuhang Machine Factory has been the symbol of high quality and excellent service in machinery areas for many years. Our factory is located in SHANGWANG INDUSTRIAL,Ruian City, zhejiang province , China. The nearest airport is Wenzhou airport, It is about 40 km away from Wenzhou Airport. Our office address is Room 1504, Block 10, Zhongrui jingyuan , anyang street , ruian city, zhejiang province, China.
We have four factoies Manufacturing machines and cooperation with more than 100 factories . Our products like gravure printing machine , slitting machine, forming machine , flexo printing machine, paper bag machine , paper tube making machine,label machine etc. Accredited by ISO9001, CE certificates.
