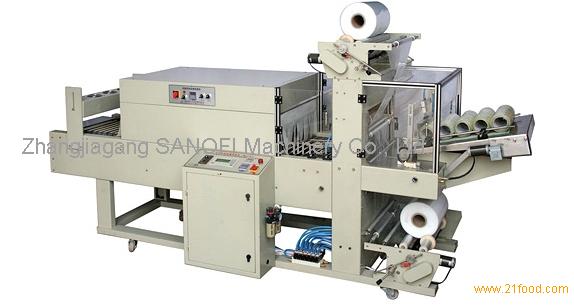

Full Aotomatic Tapes Shrink Wrapping Machine
1. Application: different kinds of tapes
2. High performance
3. ISO, SGS,CE
Full Aotomatic Tapes Shrink Wrapping Machine
Technical data BMD-750B
|
Sealing type
|
sleeve sealing |
Power supply
|
380V/50-60Hz/3phase |
Max product size
|
400(L)*200(W)*200(H)mm |
Max Packing capacity
|
20 packs per minute |
Film type
|
polyethylene(PE)film |
Max film size
|
500(width)*280mm(outer diameter) |
Power consumption
|
12kW |
|
1250mm(L), entrance 530(W)*220(H)mm |
|
variable,40m/min |
Tunnel conveyor
|
chains with rotating silicon coated rods |
Working height
|
850-900mm |
Air pressure
|
≤0.5MPa(5 bar) |
P L C
|
SIEMENS S7 |
Sealing system
|
permanently heated seal bar coated with Teflon |
Operating interface
|
Eview displayer |
Machine material
|
carbon steel |
Weight
|
600kg |
