Full-Automatic Rotary cocoa powder filling machine/ Filling and packing machine/ Auger powder filler,China JNEPACK price supplier

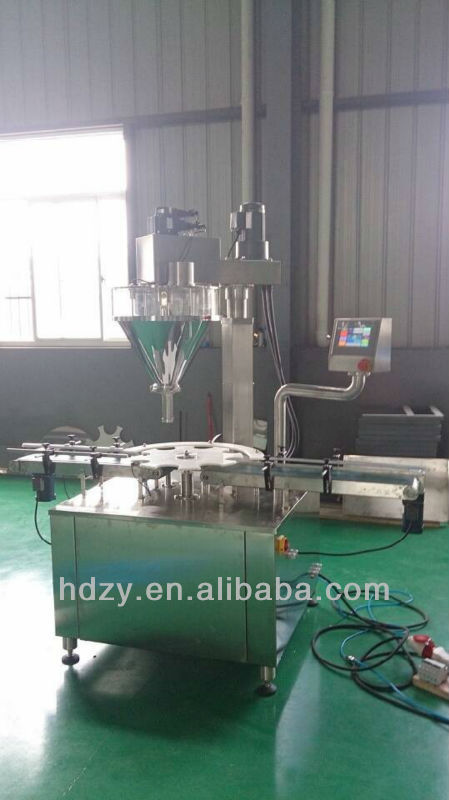

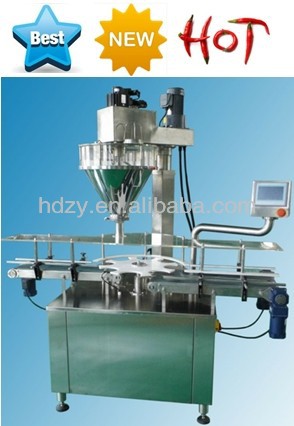

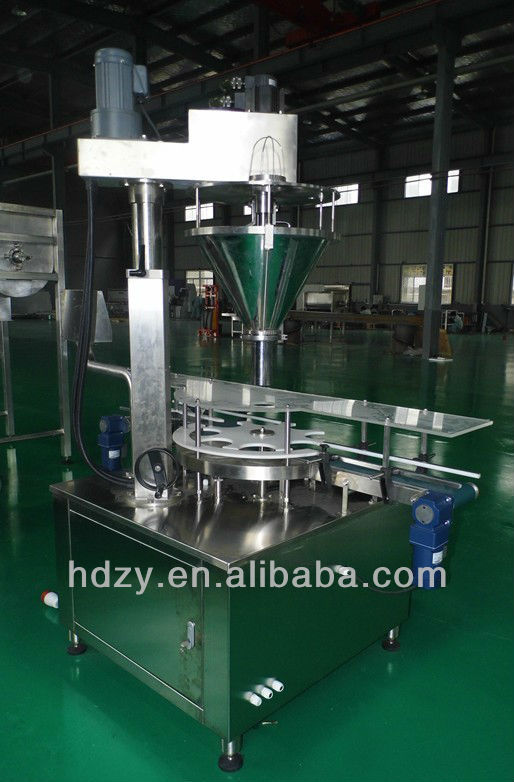

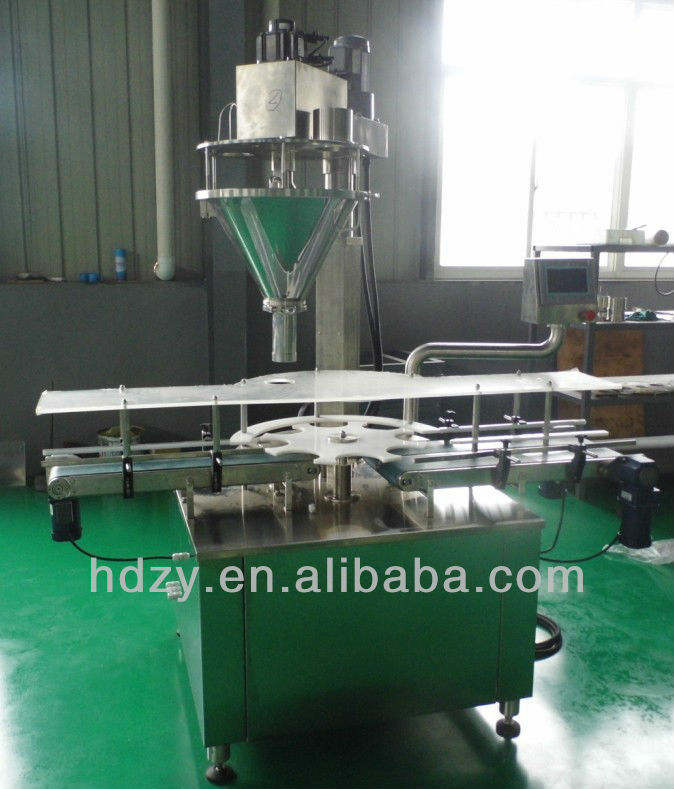

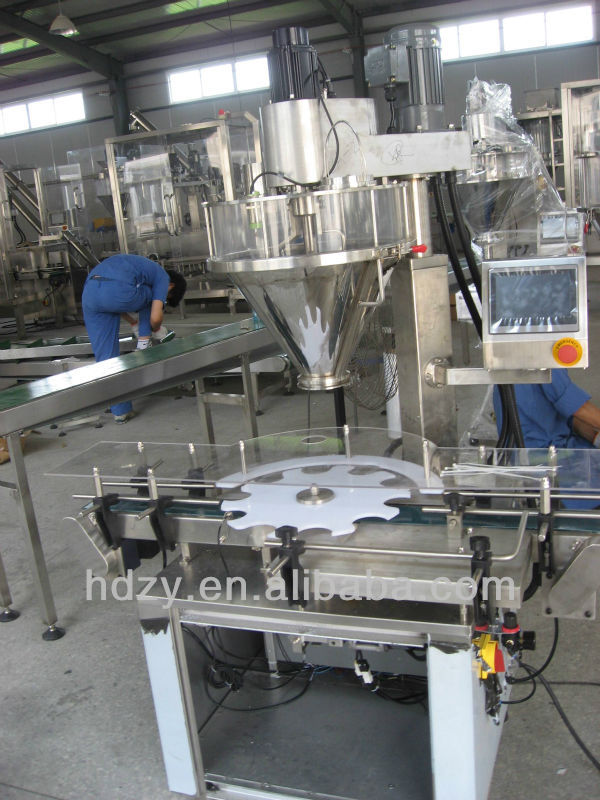

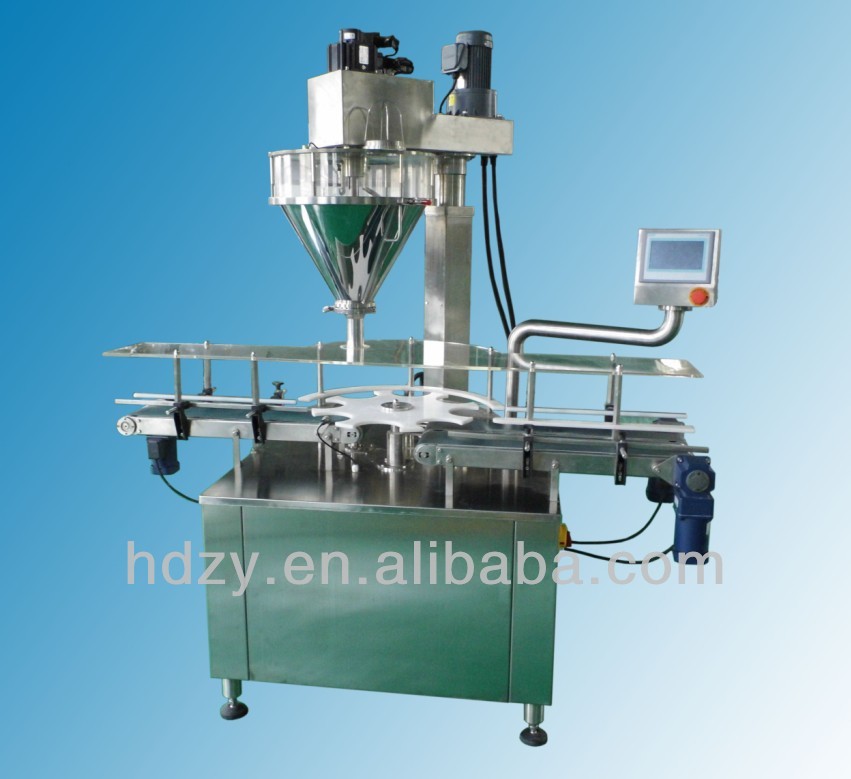

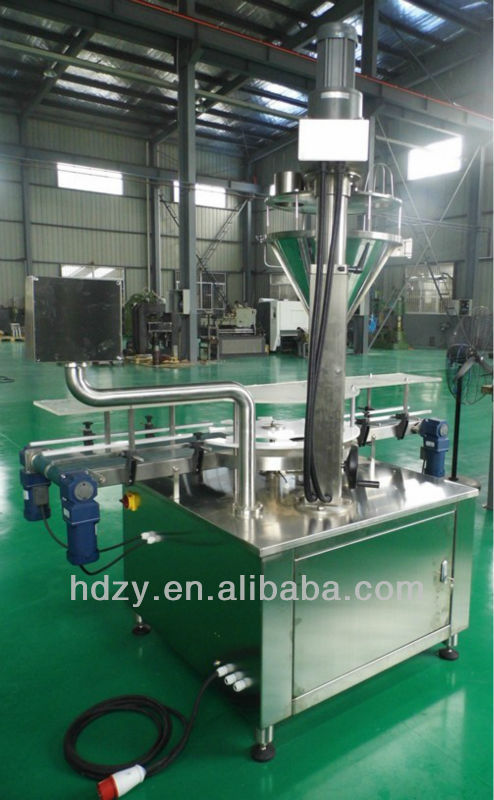

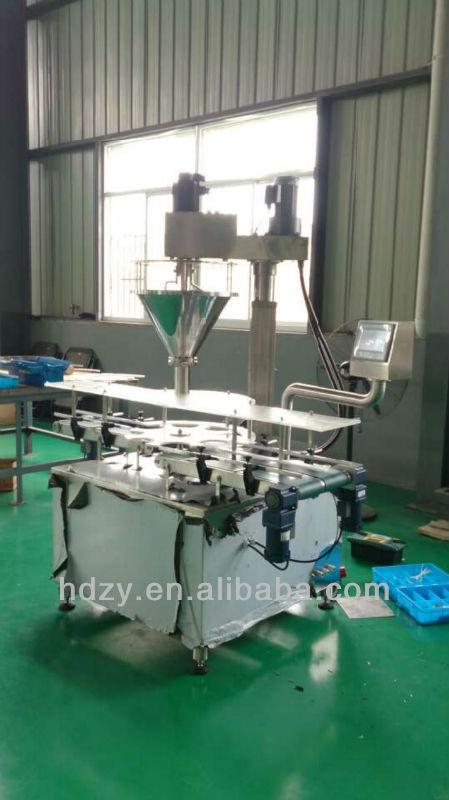

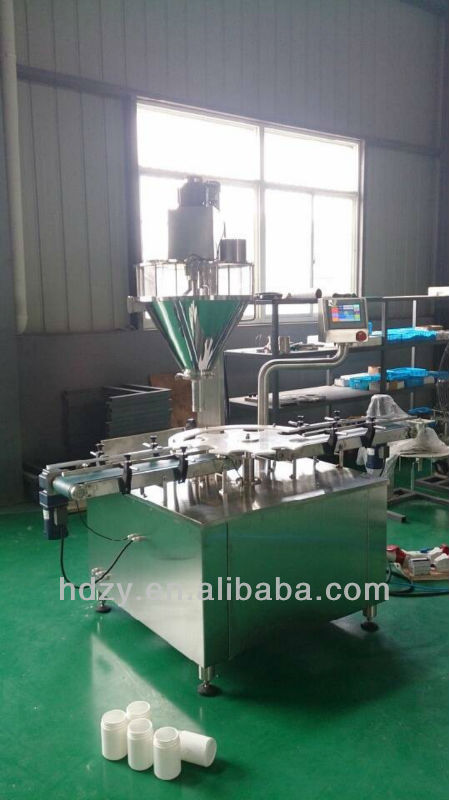

Full-Automatic Rotary cocoa powder filling machine/ Filling and packing machine/ Auger powder filler

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Update Time:2023-08-23

Contact Supplier

Product Description

1:No Bottle, No Filling" System.
2: With inline filled cans checking weigher and reject Conveyor
3: High speed & High quality

Descriptive abstract

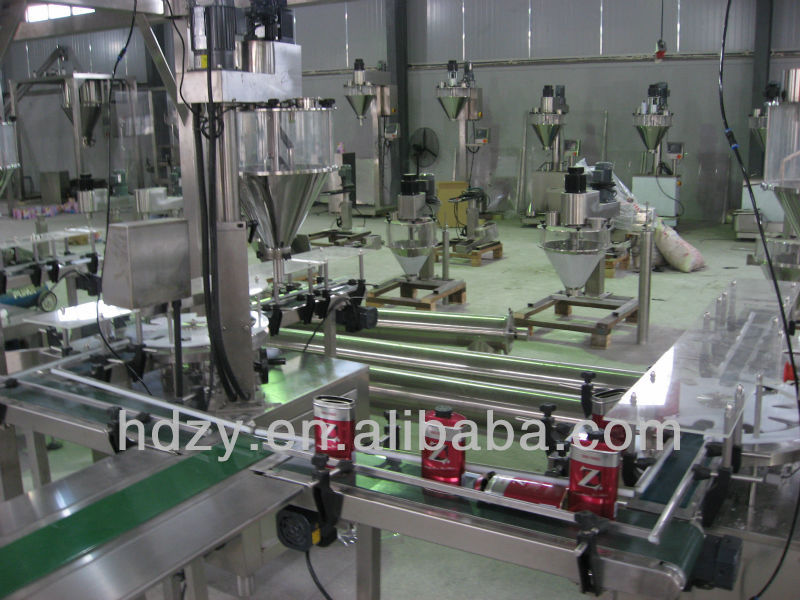

This series Filling Machine can do work of dosing, can/bottle holding, and filling, etc, it canconstitute the whole set can/bottle filling work line with other related machines, and suitable for filling kohl, glitter powder, pepper, cayenne pepper, milk powder, rice flour, albumen powder, soy milk powder, coffee powder, medicine powder, additive, essence and spice, etc

Technical data

Model	JN-SR-2A	JN-SR-2B
Measuring mode	Auger dosing model+on line weighing feedback	Auger dosing model+on line weighing feedback
Container Size	φ20-85mm, H 15-150mm	φ30-130mm , H50-260mm
Filling Weight	1 – 500g (change auger accessories)	10 – 5000g (change auger accessories)
Filling Accuracy	≤ 100g, ≤±2%; 100 – 500g , ≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	20 - 50 bottles/min	20 - 50 bottles/min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Air Supply	6 kg /cm ² 0.05m ³ /min	6 kg /cm ² 0.05m ³ /min
Total Power	1.8Kw	2.3Kw
Total Weight	250kg	350kg

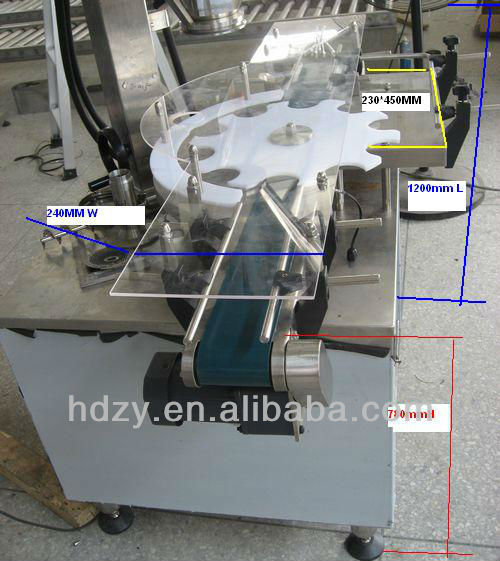

Overall Dimensions	1400×720×1800mm	1800×1000×2000mm
Hopper Volume	Level split hopper 35L	Level split hopper 50L

Main features

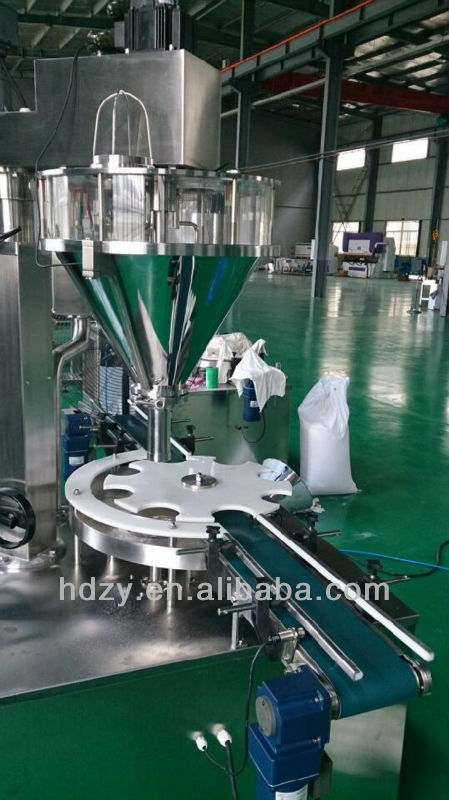

1.Stainless steel structure,with level split hopper, easily to clean…
2.Panosonic Servo-motor and servo drive controlled anger

3.Panosonic Servo control turn-table with stable performance

4.Simens PLC, touch screen and weighing module control

5.Adjustable handwheel up/down the auger filler head to meet different can/bottle head

6.With pneumatic can lifting device to assure the material not spilling out when filling.
7.Weight-feedback function can detect each weight first adjust the next filling then auto reject unquality weight, to assure each product be qualified

8.Can save 10 sets parameter formula for later using

9.When changing the auger accessories, it is suitable for materials ranging from super fine powder to small granula.

10.2 pneumatic vibrator K10 under the filling position to get more powder for vibrating

Free flow device for powder and granular material using with same mmachine

Type:	Filling Machine	Condition:	New	Application:	Food,Medical,Chemical,All Powders, granules
Packaging Type:	Cans,Bottles	Packaging Material:	Metal	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V	Power:	2.3kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JNEPACK	Model Number:	JN-SR-2B
Dimension(LWH):	180010002000mm	Weight:	350kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Measuring mode:	Auger dosing model+on line weighing feedback	Hopper Volume:	Level split hopper 50L
