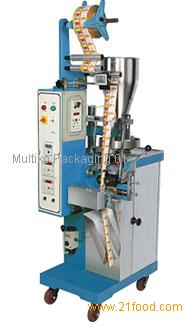

Fully automatic ffs machine for packing granules
Fully Automatic Vertical Form Fill Seal Machine with cup filler and continuous type sealer for granules / free flowing powder.
Model: MK101
Description:
The vertical form fill seal machine with cup filler is best and most economical solution for packaging need of many industries. Our machine form bags, sachets or pouches using lay flat flexible rolls, and fill the material (product) followed by sealing / closing. This machine is used to make center sealed, three side sealed and four side sealed pouches / sachets / bags.
Specification:
| Filling range |
0.5 to 10 gms, 10 to 50 gms, 50 to 100 gms, 100 to 250 gms |
| Speed / output |
20 to 70 bags / sachets per minute |
| Sealing Type |
4 Side Seal, 3 side Seal, Center Seal (pillow pack) |
| Filling System |
Volumetric Cup Filler |
| Filling Accuracy |
+/- 2 % Depend on the nature of products |
| Film Roll Size |
OD 250 to 300mm max. |
| Packaging Material |
Any heat sealable film, laminated films |
| Film Size |
Max. Width: 50mm-350mm |
| Power |
0.5 HP Motor, 220V Single Phase, 50Hz |
| Net weight of m/c |
380 to 450 Approx. |
| Dimensions |
1200mm x 840mm x 1960mm (L x W x H) |
Features:
Applications:
MK-101 VFFS packaging machine is higly suitable to pack various Granules, Free flowing powders, tea dust, detergents, pharmaceutical and agricultural powders / granules, tobacco, coffee, pepper, ORS powder, Ultra marine blue powder, dyes powder, herbal powder, henna powder, instant drink powder, sugar, salt etc in heat sealable laminated pouches / bags/ sachtes.
Multiko Packaging is an emerging company with highly experienced management in the field of packaging machinery and packaging materials. Multiko Packaging is ideally located in Ahmedabad, the commercial and Industrial capital of Gujarat, India. The company is also having association with leading companies which manufacture packaging and packaging-related converting machinery, commercially-available packaging machinery components, containers and materials in India, Taiwan and China.
Multiko packaging has its own exporting unit to provide most simplified and best quality packaging solutions. The company is positioning itself as international market player and is the result of an exceptionally comprehensive product range, an ability to tailor machines to individual applications.
Our company designs, manufactures and incorporates complete end-of line packaging systems, Vertical form fill seal machines, flexible packaging materials, semi automatic filling machines and bag closing machineries, conveying systems, labeling machines, bag making machinery and their associated system controls.
We supply leading-edge packaging machinery, labeling machines, Packaging materials, turnkey packaging solutions and filling technology products with world class service and unrivaled 24 hour help line at a price which satisfies our customer’s required return on investment.
Our services include Equipment selection, Turnkey project execution, Installation and after sales service. We are ideally located in Ahmedabad, the commercial and Industrial capital of Gujarat, India
