FZ-400 Automatic large scale 1.3T tofu per hour tofu making machine,China fuzheng price supplier

FZ-400 Automatic large scale 1.3T tofu per hour tofu making machine

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month tofu factory

Payment Terms: US $8,000 - 15,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

1,steel 304
2,high efficiency tofu production 1.3T /hr
3,manufacturer with 12 year experience,good price and quality.

High effciency Tofu making machine FZ-400

Main technical data:

soybean capacity:375 kg / hr, soymilk output:3.5T /hr.
Voltage: 380V/50Hz,
Heating Power: Steam heating
Grinder stone:corundum
Grinding Power:1.5kw*3
Filter:100 mesh
pump power: 270w
Boiling pan capacity:210L*2
Weight:650kg
Size : 210*160*120cm

Technical Data	Voltage	Heating Power	Grinding Power	Pump Power	Boiling pan capacity	Weight	Size

FZ-400	220/380V 50Hz	steam	1.5kw	270w	210L	650Kg	210160120cm

Structure:

The complete set of FZ-400 equipment stainless steel structure , composed of the grinding and

separating machine ,cooking and steam heating system composed of suction pump ,steam boiler ,

cooking barrel and electric control system.The grinder and suction pump controlled

respective. And the cooking barrel equipped with a thermometer, operate simple.
Technique of production flow
After a good soaking Soybeans will be automatic pulp refining slag separation, through the

pump into the boiling beverage barrels automatically cooked pulp slurry, and then through

the manual bean paste into the brain, and last suppress the molding.
Is suitable in the supermarket, the chain store, the cafeteria, the restaurant manufactures

the hot fresh soybean milk,the peanut thick liquid, the legume flower, tofu and so on ideal

equipment.

Company Information

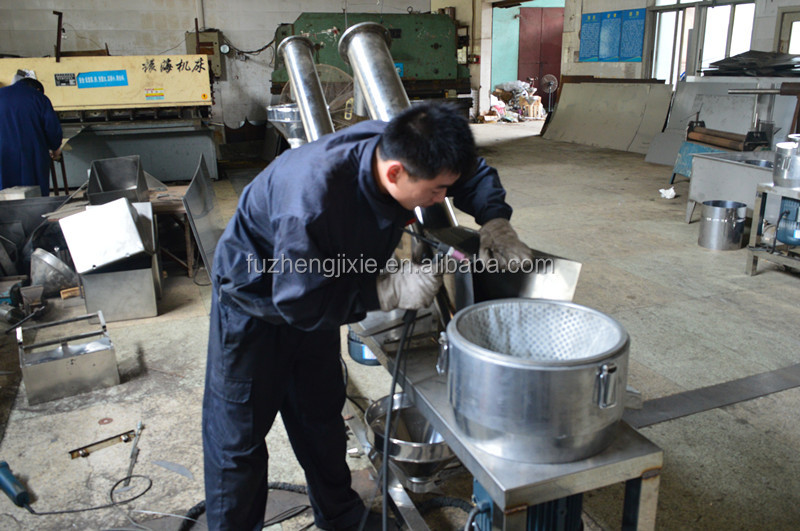

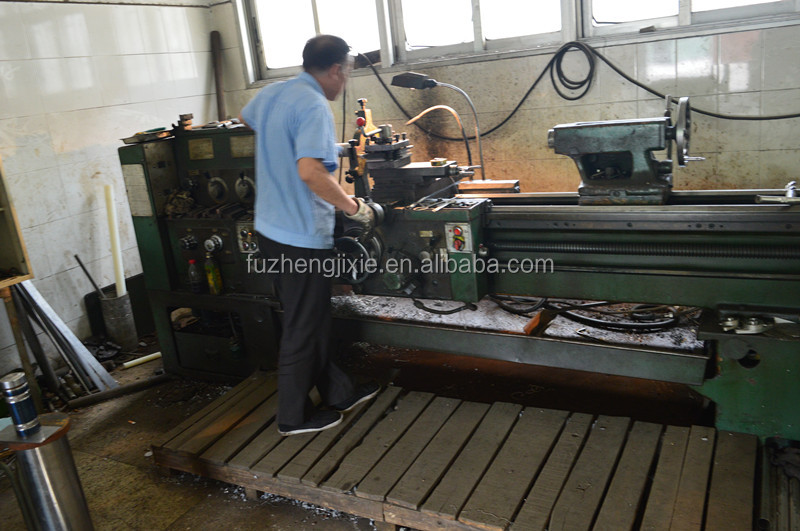

OUR WORKSHOP

TOFU SAMPLE

We are mamufacturer with 12 year experiences and sure to give you a good price and after-sale services ! Send us an message ,we must reply to you with 24 hours ! Looking forward for our coroperation !

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	fuzheng
Model Number:	FZ-400	Type:	tofu making machine	Voltage:	220/380v
Power(W):	4500	Weight:	860kg	Dimension(LWH):	230018001600cm
Certification:	CE ISO	Warranty:	5 year	After-sales Service Provided:	Engineers available to service machinery overseas
soymilk heating:	steam heating	capacity:	1.3T tofu /hr	Sauce pan capacity:	180L
Pump power::	270w	wooden package:	YES	OEM ODM service:	YES
Certificate:	CE ISO
