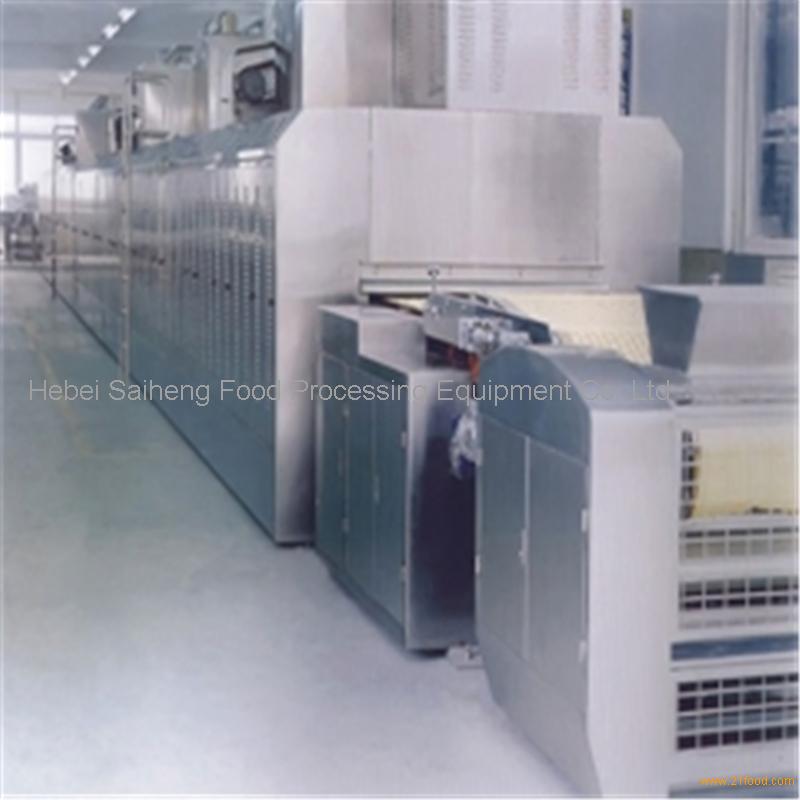

》TUNNEL GAS OVEN
The oven includes drive drum,main drive and oven tension and tracking drum.
》Driving part:
Discharge height:900-1040mm Speed:10-20m/min Power:4kw
Gross weight:2800kgs
》Tension part:
Power:2.2KW Gross weight:2500kgs
1、The machine is heated with gas(LPG or natural gas).Rapid heating up and energy saving.
2、The oven is grouped into heat control zones. The top and bottom heat are independently adjustable and preset. The measured temperature and preset temperature will be displayed in digital form.
3、To allow independent movement of the chamber to relieve stresses when expanding or contracting.
4、High-quality thermal insulating material is used to get good insulation and efficient fuel usage.
5、Steelwork, ducts and chambers paint with high temperature (400゜C) silvery paint. Outer covers paint with hard finish gloss paint.
6、Oven steel band level:1100mm
7、Fully automatic PID temperature control and automatic constant temperature.
8、Highest temperature:360゜C
9、Great control flexibility and prefect safety precautions.
10、Available in Lengths from 30 to over 150 meters.
11、Programmable logic controllers (PLC) and touch-screen control system are used.
12、It can meet the technological requirements for production of different biscuits.
Web: http://www.shjxv.com
QQ ： 3513304763
Wechat： SH18033880716
Mobile： 8618033880716
Imo: 8618033880716
Skype: 8618033880716
Facebook: 8618033880716
WhatsApp:8618033880716
E-mail: paloma@shjxv.com
Contact: Miss Li
》Parameters：
| TYPE |
Length:m |
Heating Zones |
Power:kw |
LPG Consumption:kg/h |
Natural Gas Consumption:kg/h |
Shift output:t |
| SH1200 |
64.1 |
5 |
27 |
58 |
70 |
11-12 |
| SH1100 |
55.1 |
4 |
22 |
48 |
58 |
8-9 |
| SH620 |
46.1 |
4 |
22 |
38 |
46 |
4-5 |
| SH560 |
40.1 |
3 |
17 |
30 |
36 |
3-4 |
Shenghua Group Hebei Saiheng Food Processing Equipment Co.,Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine. The company’s main products: biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment. "Good quality is the key to survive, Good credit standing is the key to develop" is the enterprise purpose of SaiHeng. With the management philosophy of "quality, service, innovation", under the efforts of SaiHeng people, the company achieves a rapid improvement in sales value year after year. The company’s products are exported to Britain, Japan, Ireland, France, Africa and other parts of the world.
Nowadays, food safety is becoming a more and more serious problem, China's food machinery equipment upgrading has become a big trend. On the existing technology, Our company constantly introducing foreign advanced technology and continue innovation to make the company’s produced equipment gradually in the leading level in the food machinery industry at home and abroad. The whole production line operation, improves the degree of automation, reduces the repair rate, and the production has improved a lot.
