GFG Series desiccated coconut fluid bed dryer,China Changjin price supplier

GFG Series desiccated coconut fluid bed dryer

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Update Time:2023-08-01

Contact Supplier

Product Description

GFG Series desiccated coconut fluid bed Dryer
1.suitable for powder with good fluidity
2,fast drying speed
3.widely used

GFG Series desiccated coconut fluid bed dryer

Principle
When air is purified and heated, it is introduced from the bottom of exhaust fan and passes through screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and raw material is dried quickly

Features
1. The structure of fluid bed is of round so as to avoid dead corner.
Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow. (Small Machine does not support stirrer)
2. The granule is discharged through the method of turning over. In this way, it is very convenient and quickly. Discharging system can be designed by requirement.
3. It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in cleaning. It is ideal equipment that is in conformity with the requirement of GMP.
4. The drying speed is fast and temperature is uniform. In general the drying time is 20-30 minutes.

Technical Parameter

Item			Type
Input capacity (kg)			60	100	120	150	200	300	500
Fan	Amount of air(m3/h)		2361	3488	4000	4900	6000	7800	10800
	mmAir pressure(H2O)		594	533	533	679	787	950	950
	Power (kw)		7.5	11	15	18.5	22	30	45
Stirring power (kw)			0.55	0.55	0.55	0.55	0.75	1.10	1.50
Stirring speed (rpm)			11
Steam consumption (kg/h)			140	170	170	240	280	360	451
Operation time (min)			15-30 (depends on raw material)
Height		Round (mm)	2700	2900	2900	2900	3100	3600	3850

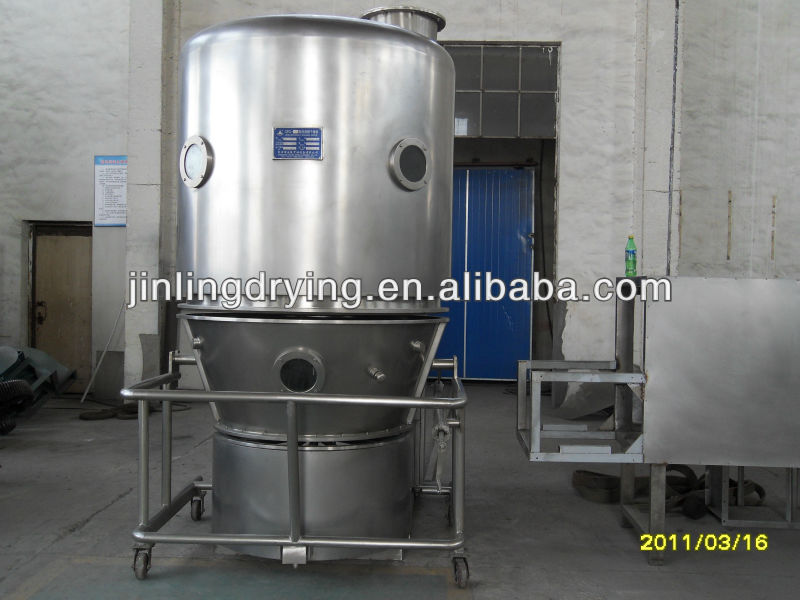

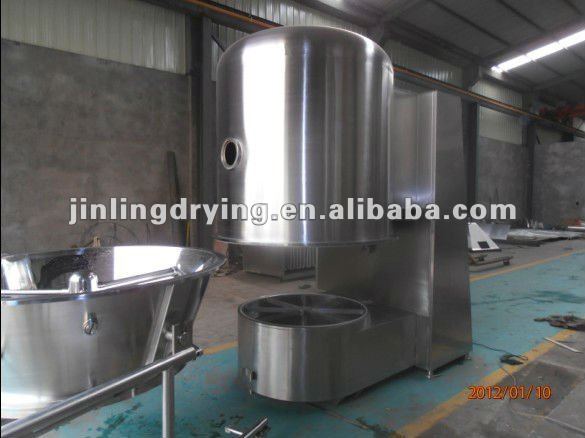

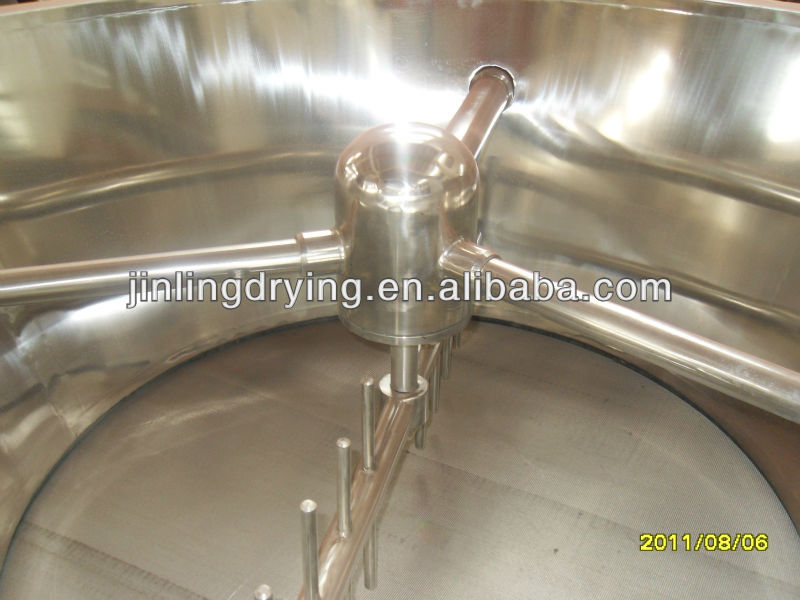

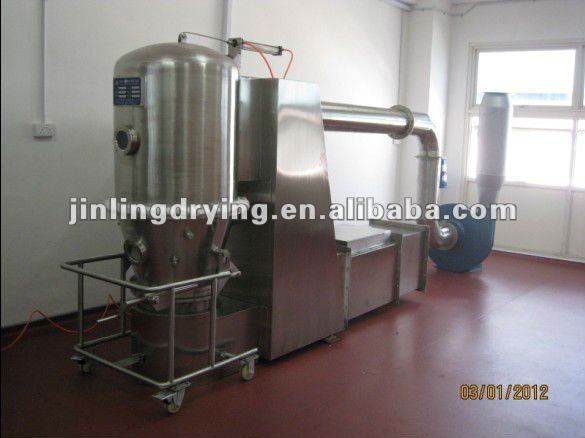

Detailed pictures

About our company

Our company is leading company professionally engaged in design, manufacture and sells drying, granulating equipments in food, agriculture, and pharmaceutical industries for more than 15 years.

We have advanced technology (we were granted the honor of National High Tech Enterprise), good quality (ISO 9001:2008 Certificate, CE Certificate), perfect after sell service (free for one year at site) and competitive price (1/5 of European equipments). Our equipments are sold every place in China and exported more than 30 countries in the world.

We successfully cooperated with some world famous TOP500 companies such as BASF, Ciba, Unilever, CNPC etc.

Production flow

Certifications

Condition:	New	Type:	Fluid Bed Drying Equipment	Place of Origin:	Jiangsu China (Mainland)
Brand Name:	Changjin	Model Number:	GFG	Voltage:	220-440V
Power(W):	7.5-45KW	Dimension(LWH):	2.7-3.85M	Weight:	100-10000KG
Certification:	CE IS9001	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
