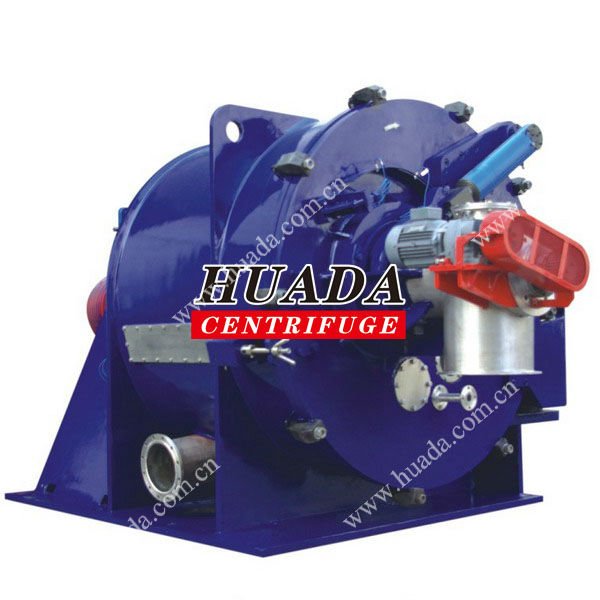

GKH Horizontal Siphon Peeler Starch Centrifuge

Siphon Peeler

Centrifuge

Process | Applications| Design Features| Technical Parameters

Process

GKH Siphon peeler centrifuge is designed on the common peeler centrifuge basics. By the siphon to increase the force pushes the clarified liquid passing through the filtration medium into the liquid chamber. The liquid is drained out of the basket through the sucker. Adjusting the position of sucker could change the liquid level in the suction chamber to adjust the force of filtration, speed, output, dryness of the solid cake and effectiveness of cleaning.

Applications

GKH Siphon peeler centrifuges are suitable for massively processing of the highly sticky slurry with free moisture solids cake. It can be applicable to separating amylum, sodium bicarbonate and calcium phosphate.

Design Features

GKH Peeler centrifuge offering siphon pushing force which makes filtration faster. Back washing device is available for washing and regeneration of filtration medium. Skimming device is also available to suit for separation of colloid materials containing protein.

Advantages of peeler centrifuge

Feeding phase

As it can freely regulate the filtration rate, the filtration rate is reduced during feeding phase to prevent uniform distribution of the cake.

Filtration phase

Siphon pipe is lower level. With the column height Hu of additional liquid, the filtration rate is increased, and thus the processing capacity is increased by 50% within the same time.

Washing phase

Inlet of the siphon pipe is in higher level with less filtration pushing force being generated. The washing liquid flows slowly to extend the time of the washing liquid staying in the filter cake, thus reducing loss of the washing liquid and bringing about better effects of washing.

Dry spinning phase

The inlet of the siphon pipe is at the bottom with the maximum filtration pushing force, therefore moisture contained in the filter cake can be removed easily, and the moisture of the filter cake is reduced.

Back-washing function

After the scraper discharges the material, the siphon can inject washing liquid into the suction chamber from the outside, and then reversely force the liquid to flow into the basket for washing. Achieve good performance of washing the filter cloth with strong ability to regenerate.

Diagram for peeler centrifuge

Technical Parameters

Processing capacity and centrifugal effect of amylum(For Ref.)
