glass/PET bottle juice filling machine,China BIEVO price supplier

glass/PET bottle juice filling machine

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month for juice fillin

Payment Terms: US $10,000 - 150,000 / Set

Update Time:2025-04-29

Contact Supplier

Product Description

juice filling machine
Full automatic
PLC control
stainless steel

glass/PET bottle juice filling machine

Product Description

glass/PET bottle juice filling machine

The series equipment is used for the production of green tea, black tea and fruit juice. It integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful, operation and maintenance is convenient.

High speed filling valve, guarantees liquid has precise level and no waste is incurred
The advanced programmed controller (PLC) is adopted to control the machine to run automatically.
It integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.

glass/PET bottle juice filling machine

Main Feature:

This machine has a compact structure, perfect control system, easy to operate and highly automated.

The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
Equipped with perfect clean management system to ensure the bottle clean.
Only by changing the star-wheel, can realize to fill the changed bottle shape.
The machine adopts perfect overload protective device can ensure the operator and machine safe.
This machine adopts adjustable frequency converter.
The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
The electric components and pneumatic components are all introduced from world famous brand products.

Application

• Tea
• Fruit juice (with or without pulp)
• Isotonic drinks
• Functional beverages

Containers
PET and glass bottles

Model	RGZ18-18-6	RGZ24-24-8	RGZ32-32-8	RGZ40-40-10
Production Capacity 500ml	5000BPH	8000BPH	12000BPH	15000BPH
Suitable Bottle Types(mm)	Round or square square shaped bottle
PET Bottle Dimension(mm)	Bottle diameter:50-110 Height :150-330mm
Cap Type	plastic screw Cap
Filling Precision	within ±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity(L)	4.3	6.5	10	12
Overall Size(LWH)(mm)	3170×2070×2400	4070×2350×2400	5100×2600×2400	6250×3050×2400
Total Weight(kg)	4000	5000	6000	7000

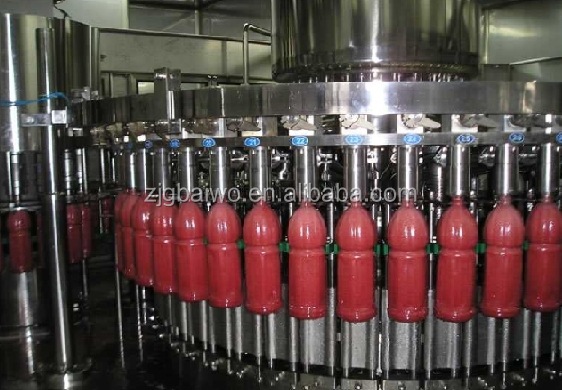

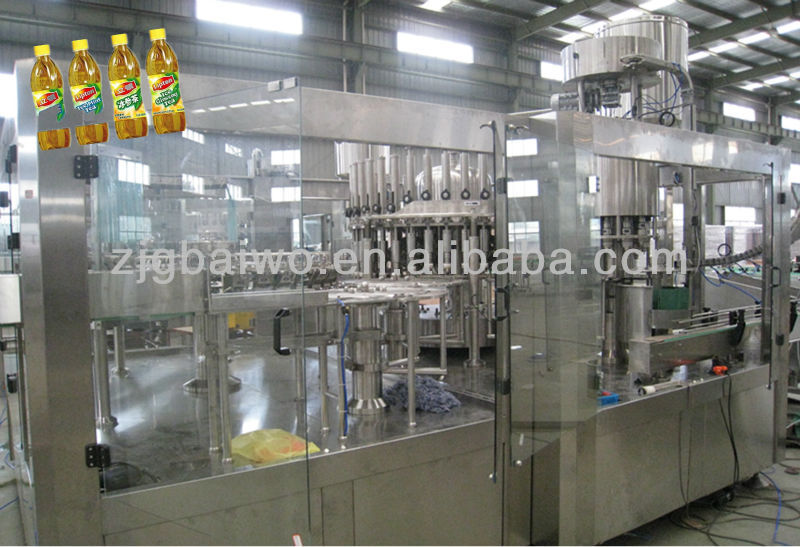

Pictures Show

Factory&Packaging

We also supply you the whole beverage line from Water Treatment to final pacinking. With high machine quality and good service, we are your best choice.

Services and Customer care

NOTE : We provide custom engineers to support the installation and operater training in customer's factory, and provide spare wares and aftersale support.

Company Profile

Bievo is a China based company with a worldwide reputation for service and support of bottle Filling Machinery for the beverage industry. The company was founded in 2003, and rapidly developed a strong reputation for innovative solution, engineering excellence and customer service.

The company philosophy and the success of our customer services are based simply on the promise to do what we say, when we say.

Bievo has an active product development program designed to ensure that the company remains at the forefront of equipment and process developments and is proud of its reputation as a customer-focused business, with the highest level of customer service.

How to buy your drink production line?

In order to buy a drink production line fit to your need, you could ask yourself the following questions:

1.What kind of products will you produce ?

2. What is the capacity(per hour) you want ?

3. What kind of package, plastic bottle, glass bottle; volume, height, opening diameter, diameter of bottle or others, please inform us the details.

4. Sole machine or whole production line?

Then please tell us the answers, we give your a proper design and best price.

If you have any questions, never hesitate to contact me please.

Skype: bievosales

Tragemager: cn220000179

Sincere service for you. Welcome to BIEVO!

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	BIEVO
Model Number:	RGZ	Voltage:	220V/380V	Power(W):	4.68KW~9.2KW
Weight:	4000~7000kg	Dimension(LWH):	317020702400mm	Processing Types:	juice/tea
Processing:	Filling Machine,Other	Certification:	CE,ISO	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas	type:	juice filling machine	material:	stainless steel
Control:	PLC	Driven Type:	electric	Automatic Grade:	Automatic
capacity:	2000-20000BPH
