COCONUT WATER filling machine
1. Vol: 200-2000ml
2 .Capacity: 1000-20000bph
3 .SUS304
Good quality coconut water filling machine
Description
1.This machine is used to fill juice, tea and other non-gas beverage.
2.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
3.The automatic juice packaging and bottling machine was equipped with suspension type air conveyor and frequency control of motor speed.
4.This machine is comprised of rinsing, filling and capping system. Rinsing : grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling : hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping : magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
5.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the automatic juice packaging and bottling machine manufacturer from China.

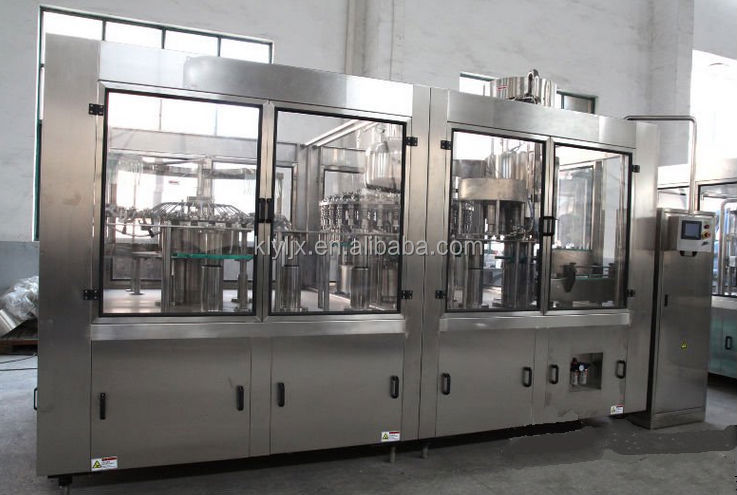

The whole machine image
Inside
Washing the bottles before filling

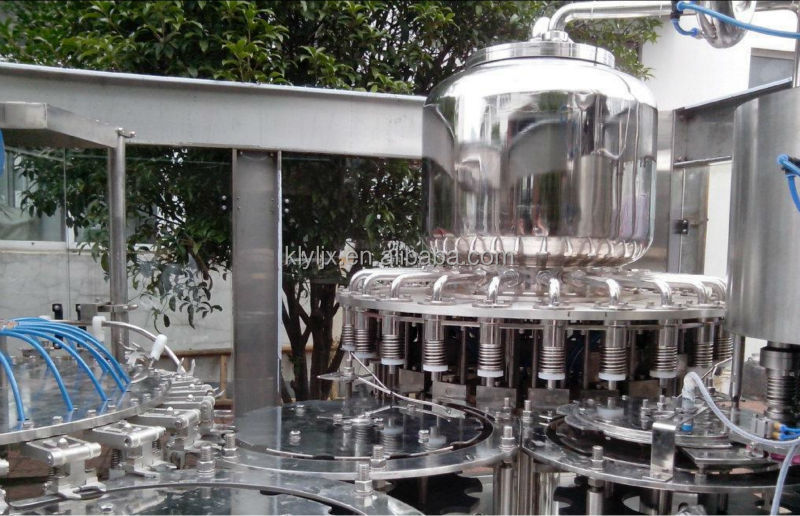

Filling the juice or tea into the bottles
Capping part
Technical Date
| Model | RXGF8-8-3 | RXGF12-12-5 | RXGF16-12-6 | RXGF-16-16-6 |
| Production capacity (500ml)(b/h) | 1500-2000 | 2000-2500 | 3000-4000 | 4000-6000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 600 | 700 | 800 | 1200 |
| Spraying position | 5 | 5 | 5 | 5 |
| Dripping bottle position | 3 | 3 | 3 | 3 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.1 | 0.1 | 0.1 |
| Power(kw) | 2.2 | 2.2 | 4.4 | 4.4 |
| Weight(kg) | 2000 | 2100 | 2200 | 2800 |
| Dimensions(L×W×H)(mm) | 2000*1600*2200 | 2100*1650*2200 | 2230*1630*2250 | 2360*1830*2250 |
| Model | RXGF-16-16-6 | RXGF24-24-8 | RXGF32-32-10 | RXGF40-40-12 |
| Production capacity (500ml)(b/h) | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 1200 | 1800 | 2400 | 3000 |
| Spraying position | 5 | 8 | 12 | 16 |
| Dripping bottle position | 3 | 4 | 7 | 9 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.4 | 0.5 | 0.5 |
| Power(kw) | 4.4 | 5.2 | 6.2 | 7.8 |
| Weight(kg) | 2800 | 4500 | 6000 | 7000 |
| Dimensions(L×W×H)(mm) | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |

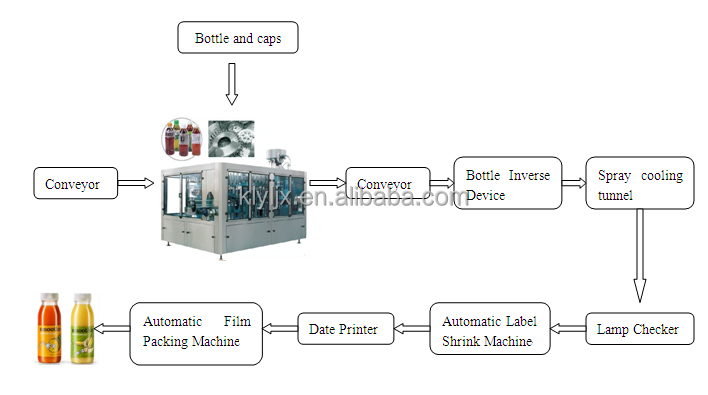

Flow chat
1. Stable high quality of machines
2. Competitive price
3. Fast, effective and efficient service
4. Quality-packaging
5. 1-year-warranty
Any question about this machine, contact with us please, sincere service for you. And welcome to KELEI.
| Type: |
Filling Machine,Hot filling machine
|
Condition: |
New
|
Application: |
Beverage
|
| Packaging Type: |
Bottles
|
Packaging Material: |
Plastic,Wood
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
380V
|
Power: |
5KW
|
| Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
KeLei
|
Model Number: |
RCGF
|
| Dimension(L*W*H): |
up to the capacity
|
Weight: |
up to the capacity
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Name: |
Coconut water filling machine
|
Machine material: |
Stainless steel
|
Processing Type: |
Plastic bottle, glass bottle
|
| Production Capacity: |
1000-20000BPH
|
Control: |
PLC
|
Spare parts brand: |
Siemens, Weinview, Mitsubishi
|
| Function: |
Beverages filling machine"> Juice ,tea beverages filling machine
|
guarantee time: |
1 year
|
filling type: |
Washing-filling-capping 3 in 1
|
