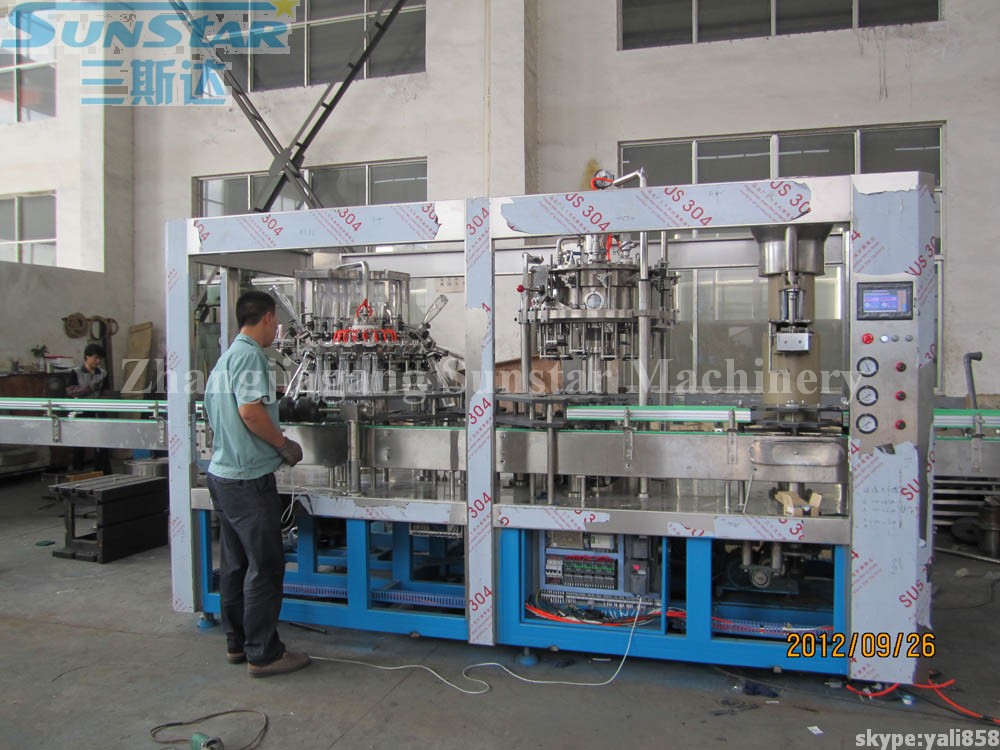

Grape/White/Red Wine Filling Corking Bottle Rinsing Machine 3in1

FOB Price:Price can be negotiated

Production Capacity:200 sets per year

Payment Terms: T/T Or L/C

Update Time:2022-05-30

Contact Supplier

Product Description

Grape/White/red wine Filling Corking Bottle Rinsing Machine 3in 1:

Grape/White/Red Wine Filling Corking Bottle Rinsing Machine 3in 1----The machine was combined with glass botttle rinsing machine, grape wine, red wine, white wine Filling Machine and corking machine into one body. The grape wine filling corking bottle rinsing machine was used forwashing glass bottle, filling grape wine into glass bottle and corking the cork into bottle. The filling machine is suitable for filling grape wine, white wine, red wine etc wine into glass bottle and seal it by cork. The wine filling machine is automatic and was controlled by PLC. 4) The applicable bottle type can be adjusted freely and conveniently, and easily operation;

Maine feature:

1) Enter and out of the bottle by screw, suitable for glass bottle
2) The filling type is adopted new type negative pressure filling, making the filling quickly and steadily;
3) That's why the machine has more capacity and benefit compared other machine with same specification;
4) This machine is adopted advanced programmable controller PLC, and make the machine running automatically, and bottle input Conveyor adopts transducer with speed adjustable, and bottle output conveyor adopts speed adjustable motor;
5) Cooperation with transducer of main machine makes the bottle running smoothly and reliably;
6) It is convenient to operate with high automation because of every part of machine is inspected to run by photoelectric detector;
7) The machine is idea-preferred equipment for beverage makers.

Technical parameter:

Model:	JCGF 16-12-1	JCGF18-18-4	JCGF24-24-6
Capacity :500ml	3000	5000	6000
Bottle shape:	roud
Glass bottle: (mm)	(Bottle Diameter):φ50-.φ 100mm (Height):150 -320mm
Cap type:	cork
Filling precision:	± 3mm
Filling pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25
Filling volume :(L)	0.3 -1L

Grape wine filling machine, white wine filling machine, grape wine corking machine, bottle rinsing machine, wine corking machine, red wine filling machine, wine filling machine.
