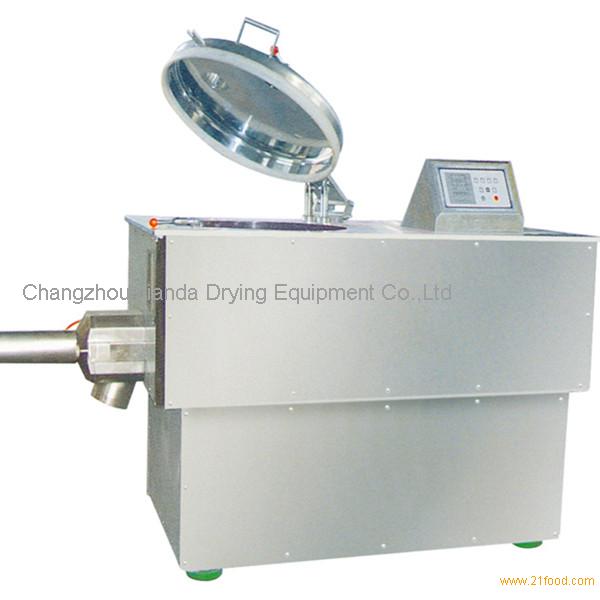

GSL Series High Effect Damp Mixing Granulator

FOB Price:Price can be negotiated

Payment Terms: T/T,L/C,D/P,D/A

Update Time:2013-06-04

Contact Supplier

Product Description

Le="color: #ff99cc; font-size: 12pt"> Application

It is suittable for pharmaceutical industry, foodstuff industry, chemical industry and so on, The granule is made from powder to damp granule in which the adhesive should be injected in it.

Features

The machine adopts horizontal cylinder structure, its structure is reasonable, no deed corner.

Air filled seal shaft for to drive. When washing , it can be changed to water.

Fluidized granulation, the granule is around ball shape. Its fluid is good.

Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.

The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process , 4-5 times of efficiency is raised.

Dry mixing ,humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.

The whole operat ion has strict safe and protect ivemeasures.

Principle

The powder raw material and adhesive in a cylinder are fully mixed to a humid soft material by mixed oar at the bottom. .Then it is cut by high-speed cutter and become uniform damp granules.

Technical Parameters

TECHNICAL PARAMETERS(STANDARD TYPE)

item		Model
Name	unit	10	50	150	200	250	300	400	600
Capacity	l	10	50	150	200	250	300	400	600
Output /batch	kg/batch	3	15	50	80	100	130	200	280
Mixing speed	r.p.m.	300/600	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Admix power	kw	1.5/2.2	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Cuting speed	r.p.m.	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
Cuting power	kw	0.85/1.1	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Compressed air consumption	3	0.6	0.6	0.9	0.9	0.9	1.1	1.5	1.8
Compressed air consumption	m /min	0.6	0.6	0.9	0.9	0.9	1.1	1.5	1.8
Weight	kg	250	500	800	1000	1300	1800	2200	2600

Drawing of Flow Plan Overall Dimensions

TECHNICAL PARAMETERS

Model	A	B	CxD	E	F
10	270	750	1000x650	745	1350
50	320	950	1250x800	970	1650
150	420	1000	1350x800	1050	1750
200	520	1100	1650x850	1450	2050
250	550	1100	1650x850	1450	2050
300	550	1150	1700x900	1500	2200
400	670	1150	1860x1050	1650	2350
600	750	1250	2000x1050	1800	2400
