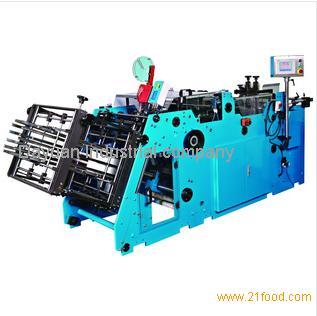

hamburger box forming machine(clamshell box)

FOB Price:Price can be negotiated

Production Capacity:10 sets per month

Payment Terms: TT or LC

Update Time:2013-04-01

Contact Supplier

Product Description

Le="font-weight: bold; font-size: 9pt; color: rgb(53,53,53); line-height: 17.25pt; font-family: Arial; text-align: left"> The work principle:

Feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain, and then sent to shaping mould. During this procedure, cardboard has been glued, and the position of gluing can be adjusted by yourself. Furthermore, the volume of gluing can be measured while in progress without stopping work. After glued, the shaped cardboard will be conveyed to collector to be autocalculated as the preconcert quantity and automark without stopping produce.

Characteristics:
· High efficiency: Produce as many as 180 pcs per minute and finished products are counted automatically.
· Small size and convenient installation.
· Low power load: approx. 8 KW; frequency conversion speed adjusting, smooth and stable and high precision.
· Adopt PLC: High automation, simple operation and adjusting, low rate of fault, and maintenance is convenient.
· Adopt servo control system: Move precisely, smooth, stable and less vibration.
· Inexpensive.
Model ：
L800-A (single head);
Production speed ：
The highest speed can be 180 pcs per minute
Raw materials ：
cardboard: from 200g/m2 ; corrugated thickness: up to 1.5mm.
Customers need to purchase separately ：
● Thermo sol spraying system
● Vibrating motor
● Air compressor/ dries
● 380V power supply, 15KW

The specifications of the products they produce:
Box length: L 100-450mm angle: 5 ° -40 ° ;
Box width: B 100-580/385mm
Edge height: H 15-200mm
Covering area: 1.2M × 4M
Packaging dimensions: (1) Length: 2.95M Width: 1.32M Height: 1.50M
(2) Length: 1.25M Width: 1.10M Height: 0.85M
Weight ： approx 2 tons
