Heat Gradient Tester

FOB Price:Price can be negotiated

Update Time:2023-04-28

Product Description

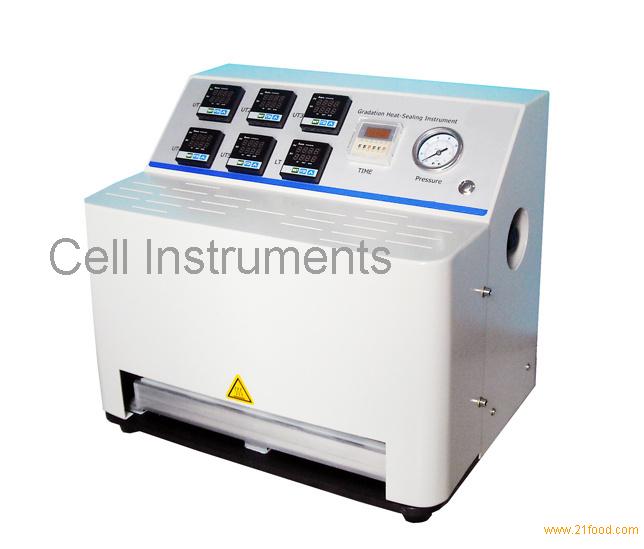

Heat gradient tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc.The HTT-01 is the gradient model that can measure five groups of sealing temperature at the same time.

It has the following features:

1.Five groups sealing temperature can be measured with one test

2.precise dwell time and sealing pressure control

3.P.I.D. sealing temperature control

4.Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5.Independent upper and lower sealing jaw heating

6.Sealing jaw customization available in term of dimension, shape and surface

Heat gradient tester Technical Data

Sealing temperature Room Temperature ~ 250℃

Temperature Gradient ≤20℃

Deviation ±0.2℃

Dwell time 0.1 s~990H

Sealing pressure 0.15 MPa ~ 0.7 MPa

Sealing Jaws 40mm×10mm×5(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws

Gas Pressure 0.5 MPa~0.7 MPa of Air

Dimensions 455mm (L) *320mm (W) *440mm (H)

Port Size Ф6 mm PU Hose

Standards

ASTM F2029, QB/T 2358, YBB 00122003
