10 Hopper 304SS Automatic Combination Multihead Computer Weighing Machine BT-10-2B-01X
Application For Small Dry Granule
CE
High Accuracy and Speed 10 Hopper 304SS Automatic Combination Multihead Computer Weighing Machine For Chicken feet BT-10-2B-01X

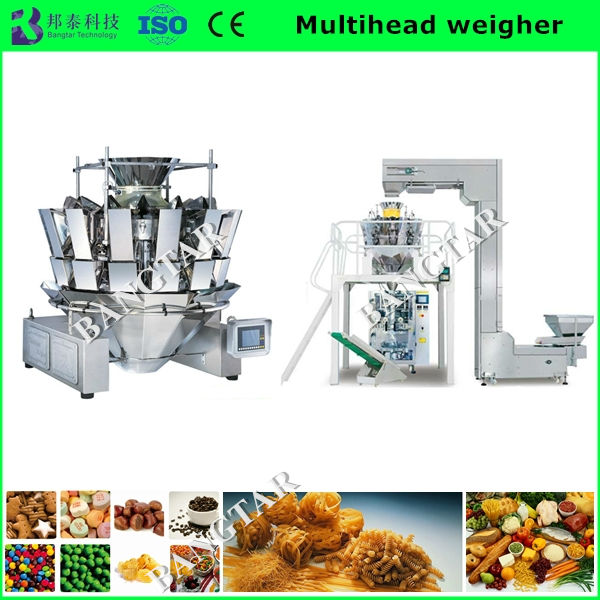

Standard 10-heads multihead weigher 1.3/2.5L hopper
Special Features:
A) High running stability, best sale for 10 years.
B) Full stainless steel construction, waterproof, dustproof, rustproof.
C) Simple operation, 10.4" color touch screen with 3 language.
D) 1.3L, 2.5L hopper for optional
Main Features:
A) The most efficient and accurate weight calculation by computer when compared to manual process.
B) Stagger dump avoid materials pile up.
C) User friendly touch screen quipped with multiple language.
D) Adjustable backlight control for vision protection
E) Compatible with single Packaging Machine for automatic weighing.
F) Instant hopper vibration index for better control.
G) 99 preset programs for multiple tasks.
Application:
It is suitable for weighing of small dry granule and irregular shape products, such as candy, peanut, pistachio nuts, green beans, jelly, rice grains cereal, small cookies/ biscuit, coffee beans, etc. it`s also suitable for small hardware, plastic & rubber parts etc.
Technical Parameters:
Name | Standard 1.3L 10 heads multihead weigher | Standard 2.5L 10 heads multihead weigher |
Model | BT-10-2B-01X | BT-10-2B-03X |
Weighing range | 25g-500g*n | 25g-500g*n |
Weighing accuracy | ±0.5g-2g | ±0.5g-2g |
Max. speed | 70 batch/minute | 70 batch/minute |
Electric requirement | 220V/ 50Hz/ 1.5kW | 220V/ 50Hz/ 1.5kW |
Hopper volume | 1.3L | 2.5L |
Display | 10.4 inch color touch screen | 10.4 inch color touch screen |
Packing size | 1436*1086*1258mm | 1436*1086*1388mm |
Specification of other models:
Model | BT-10-2B-06Y | BT-10-4A-10Y | BT-10-2B-3XN | BT-10-2B-13X |
Max. Weighing Speed | 60WPM | 70WPM | 70WPM | 70WPM |
Weighing Accuracy | ±1-3g | ±0.5-2g | ±0.5-2g | ±0.3-0.8g |
Hopper Volume | 5.5L | 4L | 2.5L | 0.5L |
Waterproof Grade | IP64 | IP66 | IP64 | IP64 |
Application | Frozen vegetable fruit | Dry or frozen granule | Noodles | Powder |
Automatic Weighing Packaging Line:
This Production line can be fully automatic operated, it can achieve product packaging line work, and improve production efficiency and reduce product cost.
Components: Viberation Feeder, Z shape/ Inline Conveyor, Platform, Packaging Machine.
Quick Inquiry:
Type: |
Other
|
Condition: |
New
|
Application: |
Food,Commodity,Medical,Chemical,Machinery & Hardware
|
Packaging Type: |
Stand-up Pouch,Film,Pouch
|
Packaging Material: |
Plastic,Paper
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220V/50Hz
|
Power: |
1.5kW
|
Place of Origin: |
China (Mainland)
|
Brand Name: |
Bangtar
|
Model Number: |
BT-10-2B-01X
|
Dimension(L*W*H): |
1436*1086*1258mm
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Range of weighing precision: |
25g-500g*n
|
Weighing accuracy: |
±0.5g-2g
|
Maximum weighing speed: |
70batch/minute
|
Hopper volume: |
1.3L
|
Display: |
10.4" color touch screen
|
Material: |
Stainless Steel
|
Waterproofing grade: |
IP 64
|
Preset number for product: |
99 kinds
|
![]() |
![]() |
![]() |
![]() |
