High Accuracy automatic Cocoa Powder Auger Filling Machine, auger powder filling machine for 100g-10,China TOPSPACK price supplier

High Accuracy automatic Cocoa Powder Auger Filling Machine, auger powder filling machine for 100g-10

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month

Update Time:2023-01-19

Contact Supplier

Product Description

High Efficiency, Corrosion Resistance
1. high-accuracy & high efficiency
2. store 10 product parameters
3. durable & stable

Descriptive abstract:

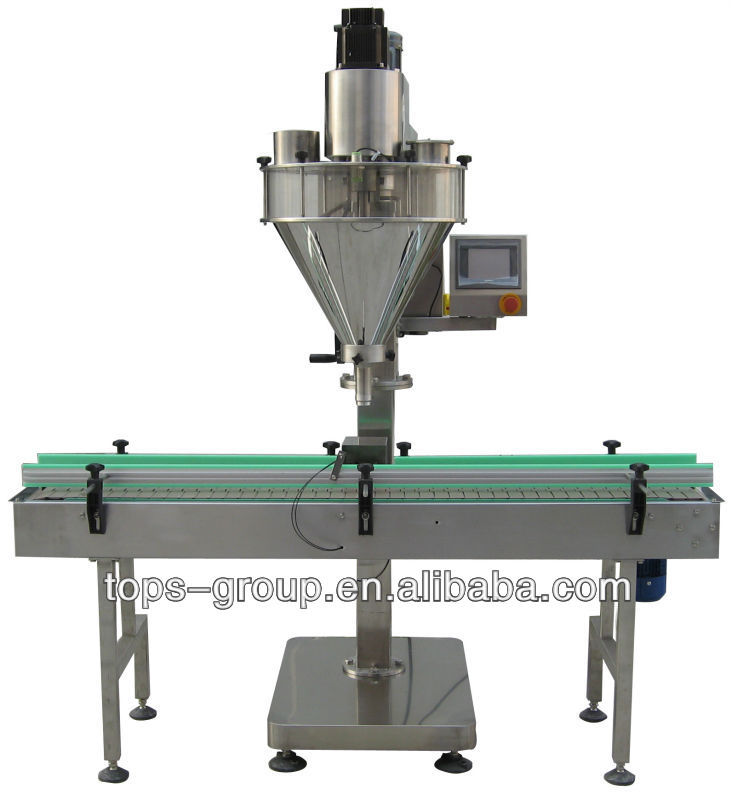

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain Conveyor mounted on a sturdy, stable frame base, and all necessary Accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Main features:

Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
Servo motor drive screw.
PLC, Touch screen and weighing module control.
To save all product’s parameter formula for later use, save 10 sets at most.
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Include handwheel of adjustable height.

Technical parameter:

Model	TP-PF-A22
Dosing mode	With online weighing and container lift-fall function
Filling weight	100g - 10kg
Filling Accuracy	100-1000g, ≤±2g; ≥1000g,±0.2%
Filling Speed	5 – 30 bottles per min
Power Supply	3P AC208-415V 50/60Hz
Air Supply	6 kg/cm2 0.05m3/min
Total power	2.7Kw
Total Weight	450kg
Overall Dimensions	3000×970×2300mm
Hopper Volume	70L

Filling Machine, auger powder filling machine for 100g-1000g" data-width="317" data-height="399" ori-width="735" ori-height="800" />

Our Promise

Top and consistent quality, Reliable and excellent after-sale service!

Type:	Filling Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:	Cartons,Case	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V 50/60Hz	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	TOPSPACK	Model Number:	TP-PF-A22
Dimension(LWH):	30009702300mm	Weight:	450kg	Certification:	CE Certificate
Model:	TP-PF-A22	Dosing mode:	With online weighing and container lift-fall function	Filling weight:	100g - 10kg
Filling Accuracy:	100-1000g, ≤±2g; ≥1000g,±0.2%	Filling Speed:	5-30 bottles per min	Power Supply:	3P AC208-415V 50/60Hz
Air Supply:	6 kg/cm2 0.05m3/min	Total power:	2.7KW	Total Weight:	450kg
Overall Dimensions:	30009702300mm
