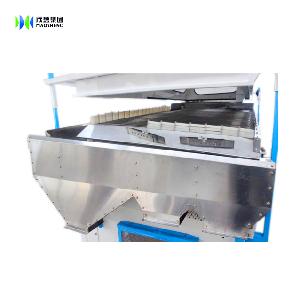

High Capacity Three Layers Paddy Rice Corn Maize Bean Destoner Cleaning Machine Gravity Separator Machine,China price supplier

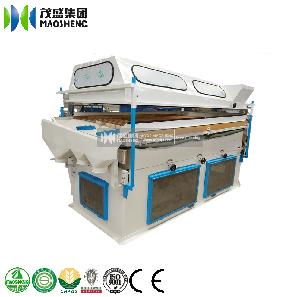

5XZ Gravity Separator :

1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities, and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).

Gravity Separator, also known as gravity separation table, specific gravity separator, or density separator, is key processing machines for the perfect separation of products which are already treated by air screen cleaner and indented cylinder.

Wide Application of 5XZ Seed Gravity Separator:

5XZ series gravity separator is widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.

Paddy Separator Machine Grain Seed Cleaning Machine Beans Gravity Table.

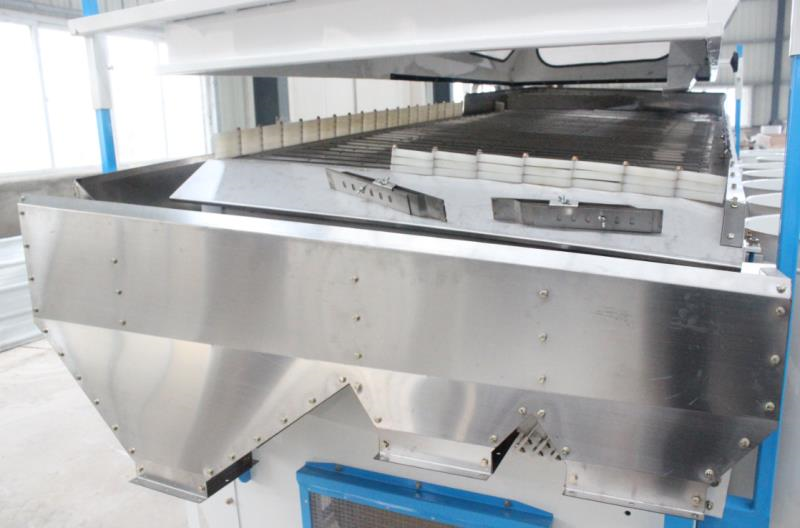

Variable Screen Configuration:

Working Principle Of 5 XZ Gravity Separator:

Seeds and grains can be separated and graded by the suspension and friction characteristics.

Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.

Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.

Advantages of 5XZ Gravity Separator:

Hyde 5XZ seed gravity separators are designed with accuracy in separation of as slight as 0.5% difference in specific density.

Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.

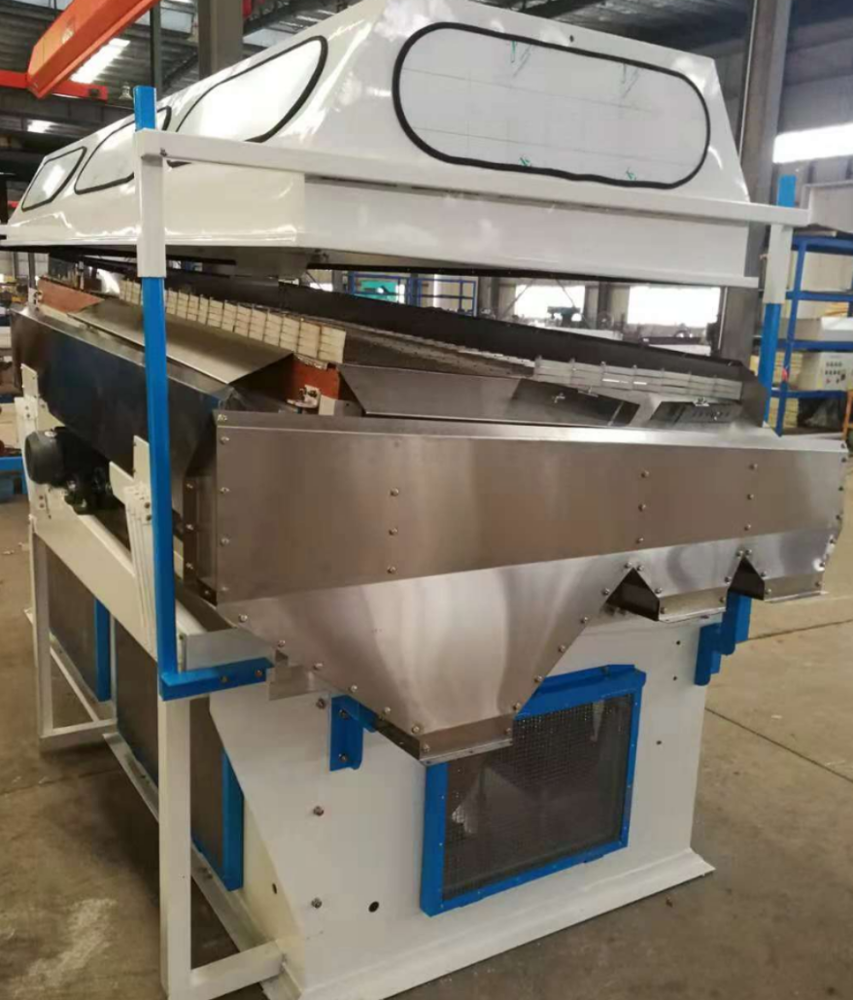

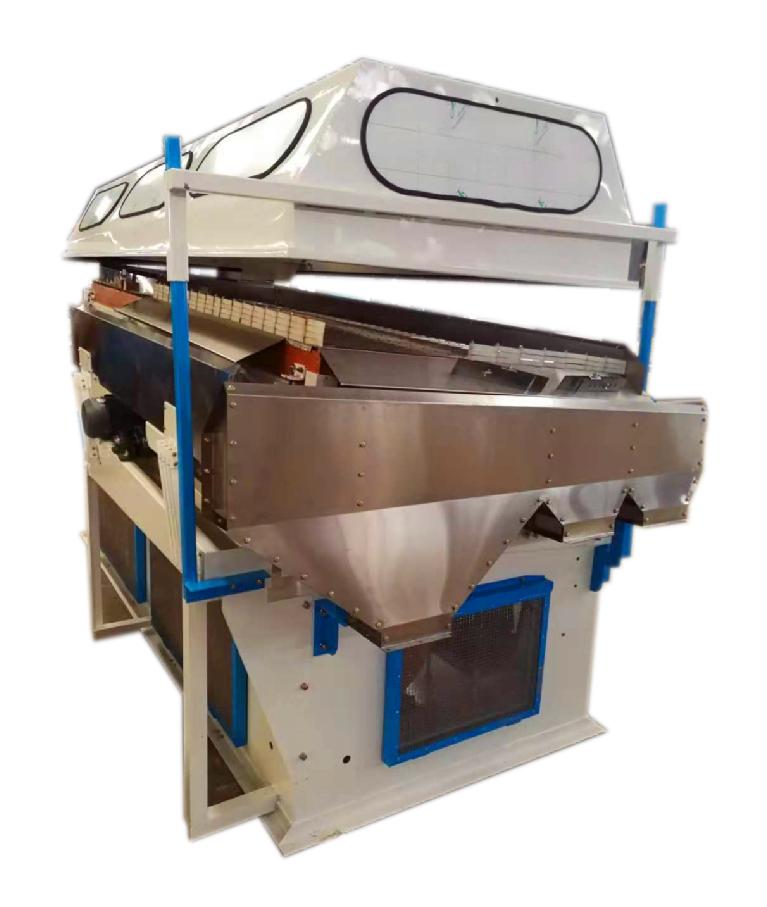

Structural Features:

1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.

Special Features:

1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.

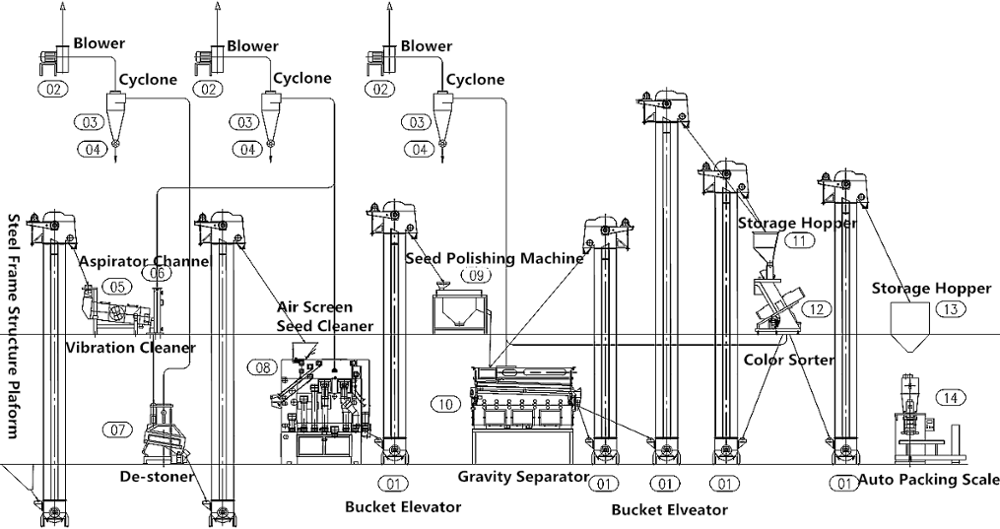

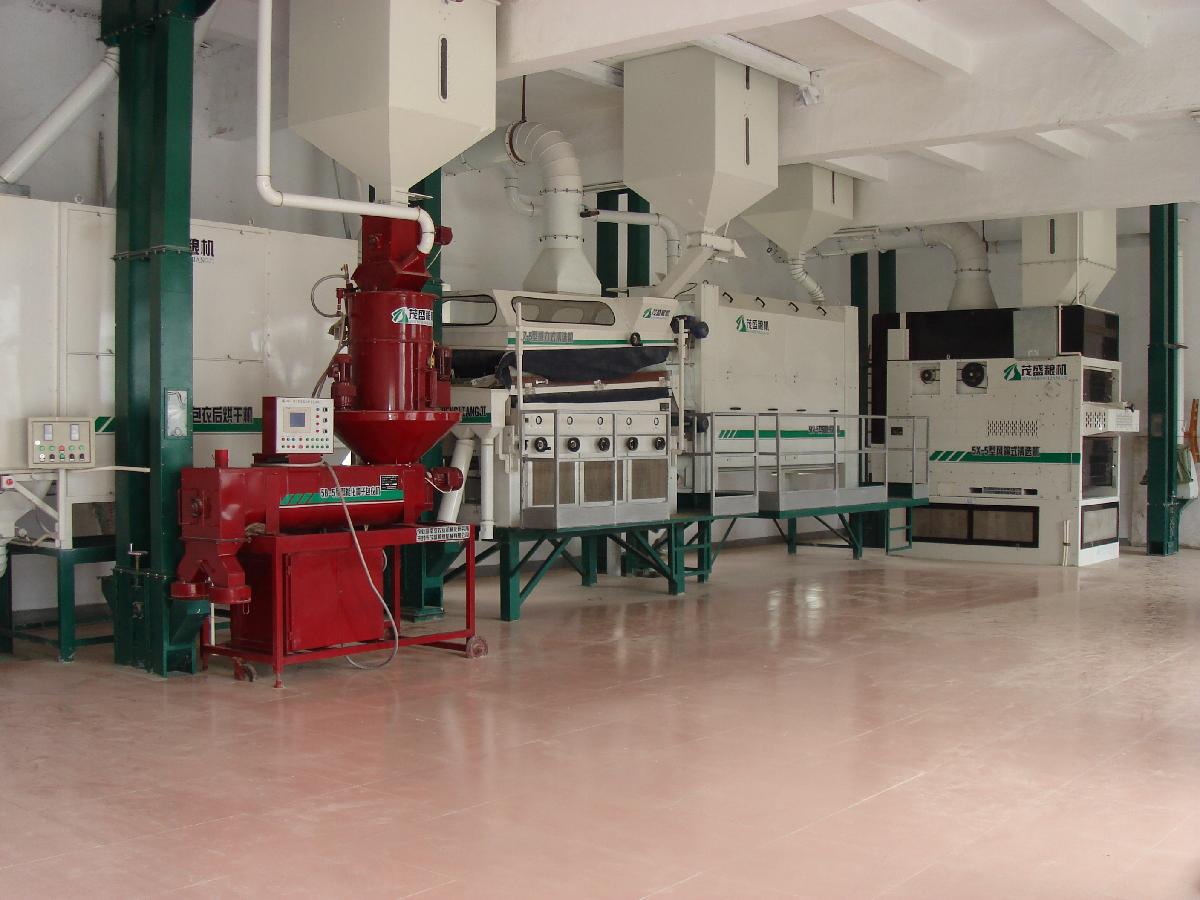

5XZ Seed Gravity Separator in Seed Cleaning Plants:

Corn Bean Gravity Separator Machine Bean Separator Sesame Seed Processing Machinery Wheat Cleaning Machine

Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator Maize Beans Gravity Table

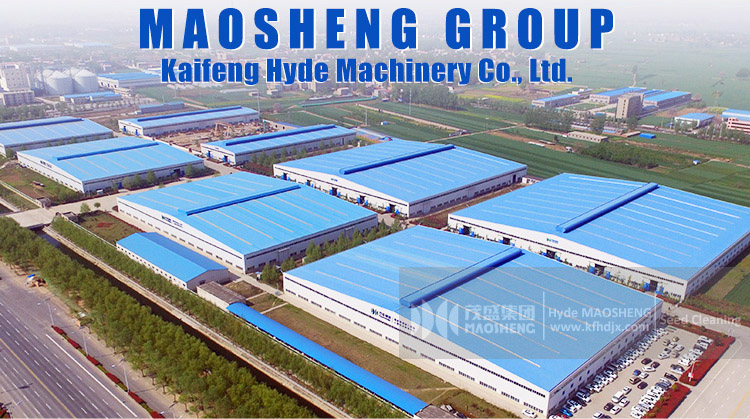

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013 and NoroGard Sweden in 2016.

Our partners and clients in China:

Honors of Maosheng Group Hyde Machinery:

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.

Member of 13 China national standards DRAFTER in grain industry. 75 patents including 4 inventions (till 2017).

Why choose us?

Pre-sales Service:

1. Technical Consulting Service

Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit

Before placing orders, customers are warmly welcome to visit Hyde and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.

In-sales Service:

1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.

A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special requirements.
