1.Dust-proof, oil-proof.
2.OEM order Supported
3.400-2000mm diameter
4.Long service life
5. High precision
High Efficiency Vibrating Sifter Machine for Corn Starch
--Working Principle of High Efficiency Vibrating Sifter Machine for Corn starch :
The ultrasonic vibrating wave (mechanic wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion, friction ,wedging etc and improves sieving and cleaning efficiency.
--Application Range of High Efficiency Vibrating Sifter Machine for Corn starch
1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering:removal of solids from liquids and slurries.
3. Product reclamation:removal of the solids from waste product or clarification of waste liquor for further use.
4. Screening :separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning:cleaning of wastewater or remobving the solids from recirculating liquid.
--Features of High Efficiency Vibrating Sifter Machine for Corn starch
1. Ultrasonic self-cleaning function can prevent the sieve cloth of 50~625 mesh being plugged, and prolong the life span of siev e mesh.
2. Can exactly separate micro particles of similar size.
3. During work process,the machine temperature won't rise,suitable for sieving medicine powder and its original materials, thermosetting coatings and so on.
4. It can be used with single layer or multilayer. A set of intelligent ultrasonic generator can be used with three controllers at the same time.
5. This kind machine has the function of being able to effectively control the sieving granularity scale, which can realize the high precision sieving to achieve the best sieving effect.
--OEM orderSupported of High Efficiency Vibrating Sifter Machine for Corn starch
Pls provide the follow information for us.
1.what's the capacity you required?
2.what's the material will be separated and the density?
3.How many layers do you need?
4.What's the sieve mesh size of every layer?
5.What's the particle size distribution?
-- Technical Parameters of High Efficiency Vibrating Sifter Machine for Corn starch
| Technical data: |
||||||||
| Model |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
XZS- |
| Diameter(mm) |
500 |
600 |
800 |
970 |
1170 |
1470 |
1770 |
1970 |
| Layer |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-3 |
1-3 |
| Mesh size(mm) |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
0.02-20 |
| Rated speed(rpm) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
| Power (kw) |
0.12 |
0.18 |
0.36 |
0.5 |
1.1 |
1.1 |
1.5 |
1.5 |
| Amplitude |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |
3-5 |

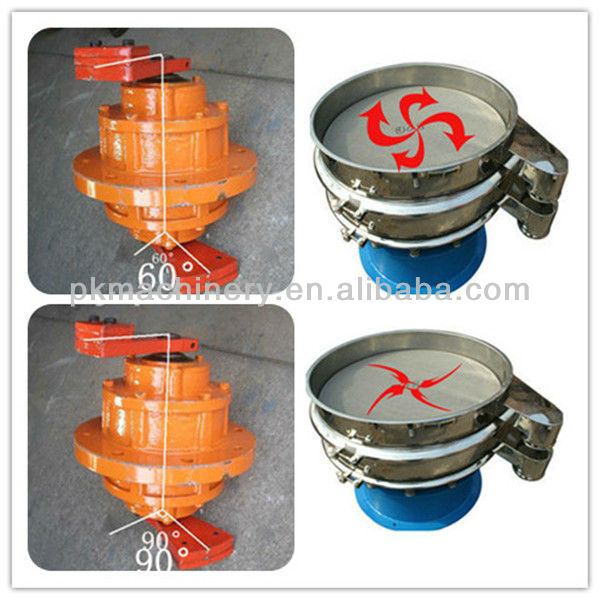

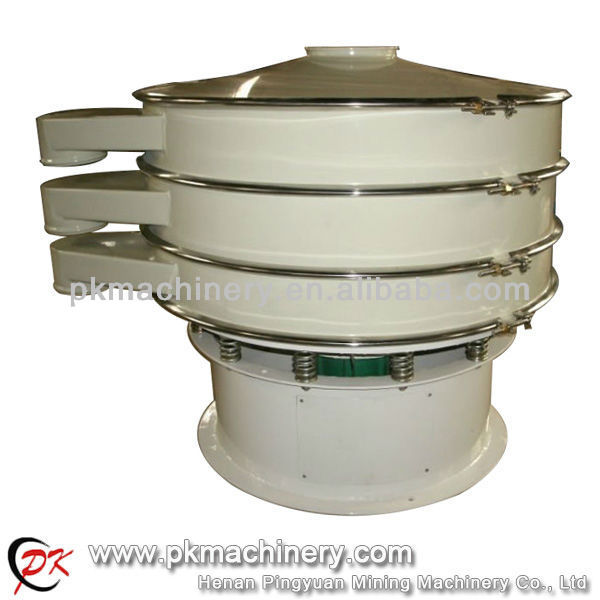

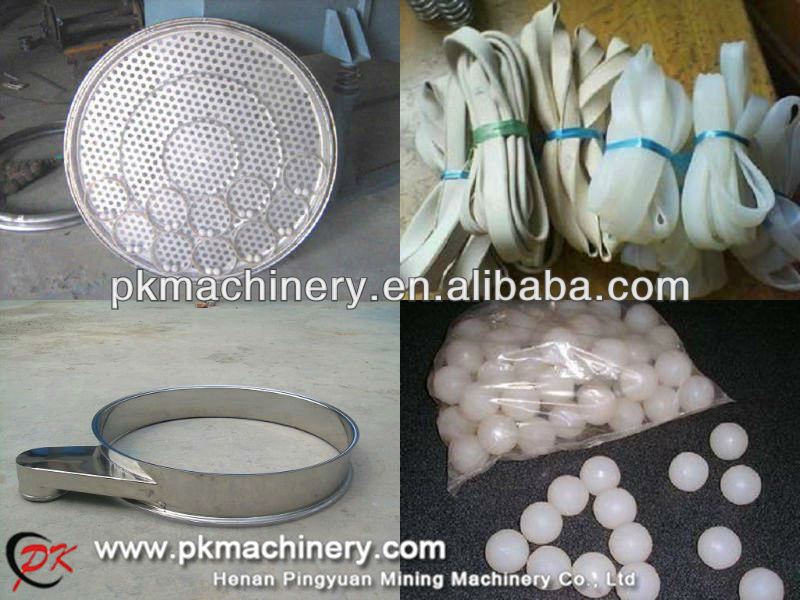

--Product image of High Efficiency Vibrating Sifter Machine for Corn starch
High Efficiency Vibrating Sifter Machine for Corn starch
High Efficiency Vibrating Sifter Machine for Corn starch
--Company Profile
Henan Pingyuan Mining Machinery Co., Ltd has been mainly engaged in mining machinery for many years,such as vibrating screen, belt Conveyor, vibrating feeder, bucket elevator, screw conveyor etc. In recent years,the equipment with different designs have been successfully exported to more than sixty countries, such as North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market etc
Teel us your needs!
Our engineers will choice the most suitable type for you immediately!
welcome to our factory!
| Condition: |
New
|
Type: |
Separating Plant
|
Product Type: |
Clay Slurry
|
| Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
PK
|
Model Number: |
XZS
|
| Voltage: |
380V or other
|
Power(W): |
According to your requirements
|
Weight: |
According to the model you choose
|
| Dimension(L*W*H): |
According to the model you choose
|
Certification: |
CE TUV SGS BV
|
Warranty: |
1year (wearing parts excluded)
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Color: |
customized
|
certificate: |
CE,ISO9001:2008
|
| Layer: |
1~5
|
OEM supported or not: |
Supported
|
Diameter: |
400-2000mm
|
| Feeding Granularity: |
30mm-500mesh
|
Application: |
Powder
|
cleaner: |
Bouncing ball/Cleaning ball
|
| Guarantee: |
12 months
|
Driven Device: |
Motor
|
