High Efficient Fluid Drying Machine,China HYWELL price supplier

High Efficient Fluid Drying Machine

FOB Price:Price can be negotiated

Production Capacity:3-5 set per month

Payment Terms: FOB

Update Time:2016-11-22

Contact Supplier

Product Description

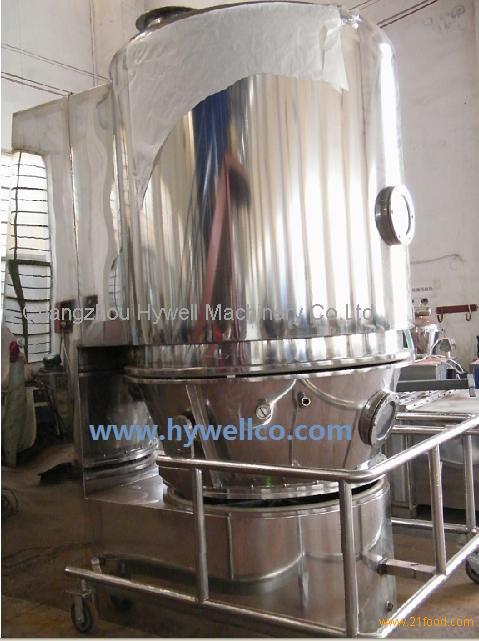

High Efficient Fluid Drying Machine

1. High Efficient Fluid Drying Machine made by all stainless steel.

2. High Efficient Fluid Drying Machine reach GMP

3. High Efficient Fluid Drying Machine is Medicine Granule Dryer

4. High Efficient Fluid Drying Machine is Particle Material Dryer

5. High Efficient Fluid Drying Machine is Chinese Granule Dryer

High Efficient Fluid Drying Machine Principle

When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

High Efficient Fluid Drying Machine Features

1. The structure of fluid bed is round so as to avoid the dead angle

2. The main machine is designed 20% higher than common design, the fluidizing space is expanded to guarantee the flow height of material so that the load of bag deduster be effectively decreased.

High Efficient Fluid Drying Machine Application

1. Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing

2. Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on
3. The raw material that large in granule and small in block and having adhesive property
4. Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.

Model	GFG-200	GFG-300	GFG-400	GFG-500	GFG-650
Bin capacity(L)	200	300	400	500	650
Production capacity(Kg/time)	30-60	50-100	60-120	70-150	100-200
inlet air temp(ºC)	50-100	50-100	50-100	50-100	50-100
Blower power(kw)	11	15	18.5	22	30
Steirring power(kw)	1.1	1.5	1.5	1.5	1.5
Steam consumption(kg/h)	1440	170	210	240	280
Compressed-air consumption(m3/h)	0.6	0.6	0.6	0.9	0.9
overall dimensions(mm)	2800x1350x2700	2900x1450x2700	3100x1650x2900	3100x1650x3000	3200x1750x3100
