1.High efficiency wih compact structure
2.Easy operation and maintenance
3.No material left over in machine
4.ISO,CE,SGS,BV
High precision COCOA POWDER sieving equipment
--- Product Introduction
High precision cocoa powder sieving equipment is a equipment working on the principle of rotary motion using low powered motor, rotary vibrating screen to separate bulk solid materials from solids and slurries, utilizing multi-plane, inertial vibration that causes particles to pass through apertures in the screen or to travel across the screen surface in controlled pathways. Stainless steel ultra fine powder vibratory screen handles dry/wet screening of particles from 30mm down to 500 mesh in size. The rotary vibrating classifier ranges in diameter from 400mm to 2000mm, with single or multiple screening decks(up to five).
--- Working Principle
High precision cocoa powder sieving equipment turns the rotary movement of the motor into horizontal, vertical, inclined three dimensional movement by the use of eccentric hammer installed top and bottom of motor shaft. Then this movement is transferred to the screen surface,which makes material do external expansion involute motion on the screen. In practical applications, the trajectories of the materials on the sieving machine can be change by adjusting the phase angle on both top and bottom of motor to achieve different screening operations.
--- Structure
High precision cocoa powder sieving equipment is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
--- Features
1. With a small volume and the light weight, it is easy to install and move.
2. With a special mesh frame design and a long life for mesh. And it is easy to change and clean mesh.
3. With bounce ball under the mesh, it can prevent the mesh from blocking.
4. All- closed design, no dust pollution.
5. Different particles are graded eduction automatically, so the auto-operation can be realized.
6. The outlet’s location can be adjusted to anywhere you need. It is very easy to form producing line.
7. Low consumption and noise. Environmental protecting and energy conservation.

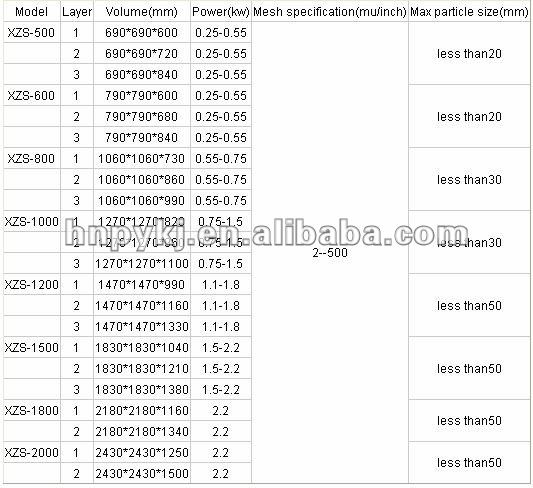

--- Technical Parameters
--- Custormers'' Notes
Could you tell us the following specification of product you choose?
1. Material (name)that you want to process, with the density, water content(%).
2. The necessary process quantity(per hour)
3. Material contact part, SS304, SS316L and Q235 for option by your material.
4. The different dimension of the machine can be designed for you.
5. Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.
--- More Pictures of cocoa powder sieving equipment
Spare parts

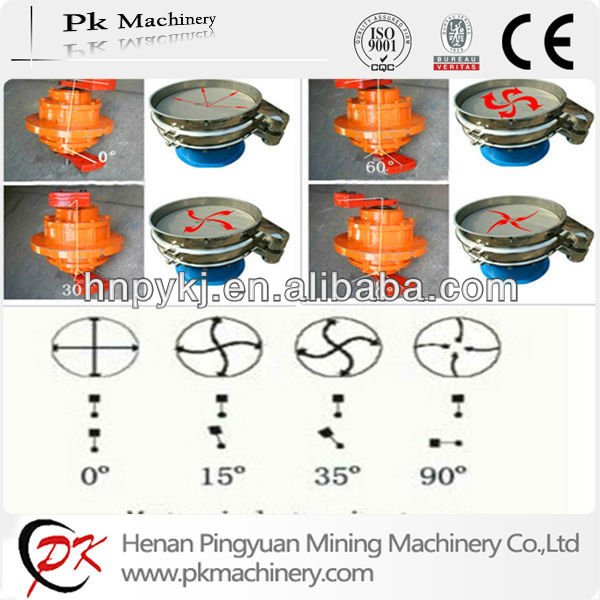

The relationship between eccentric block and the the movement of materials on the screen surface

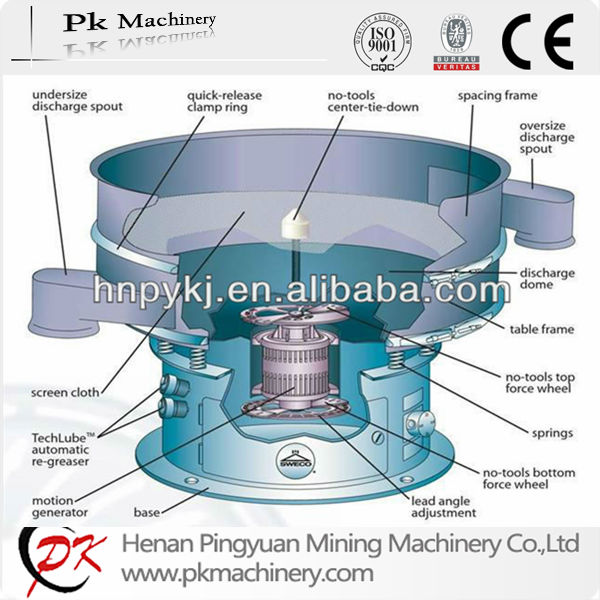

Sketch Map

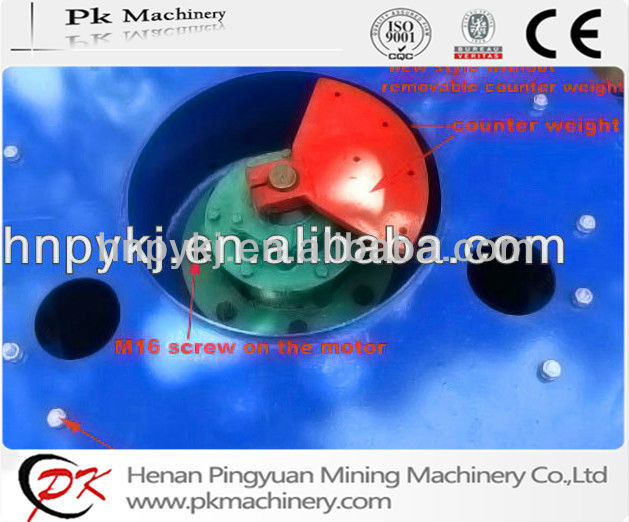

Details
Complete Machine
Factory pictures
| Condition: |
New
|
Type: |
Circular,cocoa powder sieving equipment
|
Application: |
chemical,Separation,classification,scalping,dewatering
|
| Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
PK
|
Model Number: |
XZS
|
| Voltage: |
As per your requirement
|
Power(W): |
As per your requirement
|
Dimension(L*W*H): |
As per your requirement
|
| Weight: |
As per your requirement
|
Certification: |
BV,CE, SGS, ISO9001,ISO9001:2008 ,CE ,BV
|
Warranty: |
12 months
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Brand: |
PK
|
color: |
As per your requirement
|
| Material: |
Carbon steel, stainless steel
|
Diameter: |
400-2000mm
|
Feeding Granularity: |
30mm-500mesh
|
| Applicable Material: |
Flour,salt,sugar,milk,nuts,seeds,grains,oil,fruit juice
|
Product name: |
High precision cocoa powder sieving equipment
|
