high precision rotary sieve separator for black pepper,China HENG YU price supplier

high precision rotary sieve separator for black pepper

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Month remark: urgent

Payment Terms: US $600 - 5,600 / Set

Update Time:2022-08-10

Contact Supplier

Product Description

1.High precision degree
2.Stainless steel 304
3.Good sealing performance
4.Available in different capacity
5.BV, CE & ISO

Circular Micron Mesh Grading Sieve for Silicon Powder

Separator for Black Pepper" data-width="602" data-height="363" ori-width="602" ori-height="363" />

What can we do for you?

1. Improves your product quality

2. Increases your productivity

3. Reduces your costs

4. Operator friendly

More Features

A. Mature technology, stable structure, high performance at a good price.

B. Stainless steel 304 sieves with long service life.

C. The thickness of our plate is up to the international standard

D. Quickly change the screen in less than 5 minutes.

E. Three functions of our machine, such as grading particles into different levels, remove the

impurity from powder, separate solid from liquid.

F. Sort material into muti-levels at one operation.

G. IP55 protection level motor and higher or lubrication free motor as request.

Technical Parameters

Model	Diameter	Screen surface		Screen opening	Power	Deck
	Diameter	Diameter	Area		Power
	(mm)	(mm)	(m ² )		(kw)
HY-400	400	360	0.1017	5-500mesh	0.18	1-4
HY-600	600	560	0.2461		0.25-0.55	1-4
HY-800	800	760	0.4534		0.55-0.75	1-4
HY-1000	1000	930	0.6789		0.75-1.5	1-4
HY-1200	1200	1130	1.0023		1.10-1.75	1-4
HY-1500	1500	1430	1.6052		1.50-2.20	1-4
HY-1800	1800	1730	2.3494		2.20-3.0	1-4

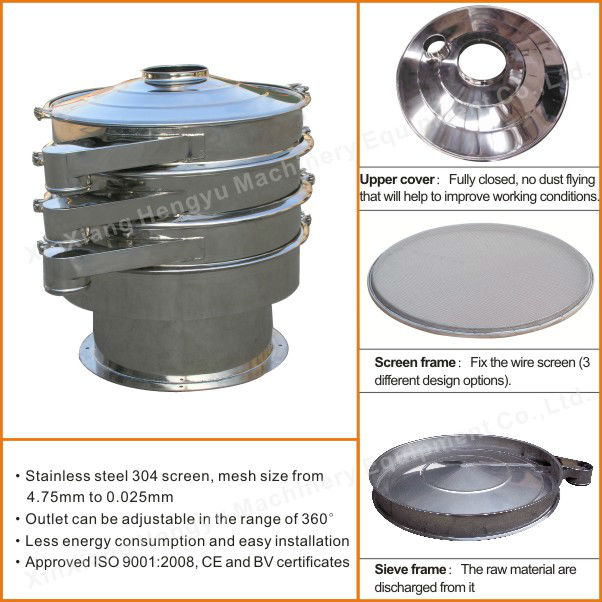

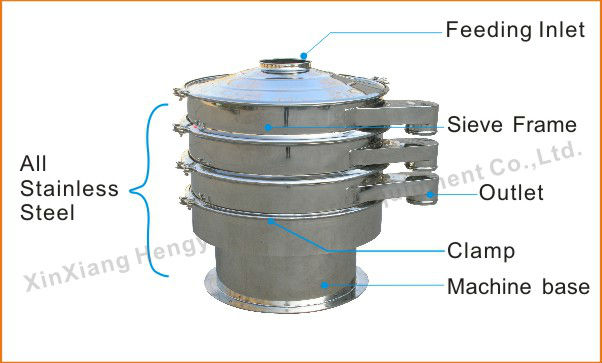

Structure of rotary sieve separator

See the pictures to know more information of the model

You can choose the models with two ways

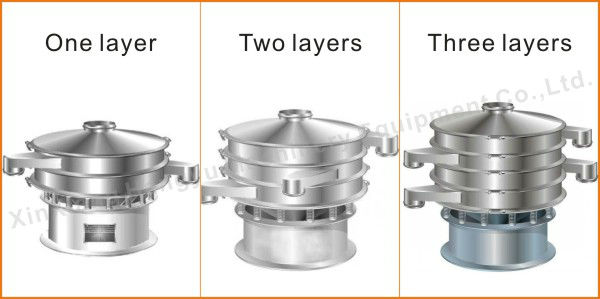

1. Option on deck number, depend on your aim also:

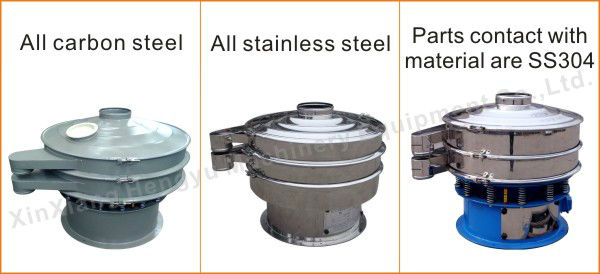

2. Option on material, depend on your processing materials

Contact the sales consult to get more information

Welcome to our website, we are happy to solve the screening problem together with you!

Condition:	New	Type:	Circular,circular	Application:	rotary sieve separator
Place of Origin:	Henan China (Mainland)	Brand Name:	HENG YU	Model Number:	HY-1200
Voltage:	as request	Power(W):	1.75kw	Dimension(LWH):	1360x1360x1050mm
Weight:	325kg	Certification:	BV, CE and ISO9001:2008	Warranty:	12 month
After-sales Service Provided:	Engineers available to service machinery overseas	Product name:	high precision rotary sieve separator for black pepper	Deck/Layer:	single deck
Screen mesh size:	5-500 mesh	Surfaces:	polished surface	Driving:	vertical vibrating motor
Green product:	sealed type, no powder flying	Structure:	mature technology, stable structure	Price:	high performance at a good price
Customization:	acceptable

Company Profile

Name: Xinxiang Hengyu Machinery Equipment Co., Ltd.

Main Products: Linear Vibrating Sieve,Round Vibrating Sieve,Ultrasonic Vibratory Separator,Tumbler Screening Machine,450 Type Vibratory Separator

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2005

Main Markets: Domestic Market, Southeast Asia, North America, Southern Europe, Northern Europe

Address: No. 8 Hengyu Street, Middle of Qinglong Road, Xinxiang County

1) Manufacture sieving and conveying equipment
2) 4 years Gold Supplier certificated, 9 years of OEM and ODM experience
3) 28 years of experience of one engineer, 22 years of experience of one engineer
4) 119,097 square meters workshop area
5) Monthly production capacities: 150-200 sets
6) All goods examined before delivery by 4 QC staff
7) Delivery time within 5 working days
8) Exported to 20 counties and regions
9) ISO 9001:2008, CE, BV more
