1.High precosion rotary COCOA POWDER sieve
2.Certificate: ISO9001:2008, CE, BV
3.Long service life and high quality
High precosion rotary cocoa powder sieve Introduction
Xinxiang Hengyu Machinery Equipment Co., Ltd manufacture vibratory screen , linear vibrating screen, ultrasonic vibrating sieve, slurry and glaze vibrating sifter, test sieve shaker, high frequency vibratory separator.
The working principle of cocoa powder sieve 1.Vibrating power source: vertical vibrating motor. 2.There are two eccentric blocks on the motor’s upper and down. The eccentric blocks make cubic element movement( horizontal , up-down, and tilting). By changing the eccentric block’s included angle (the upper and down), the motion material moves on the mesh ill be changed. So that the screening target will be realized.
The techinical parameters of cocoa powder sieve
The function of cocoa powder sieve
1. Size classification: separation of particles into groups of comparable size from the materials. 2. Gravity filtering: removal of solids from liquids and slurries. 3. Product reclamation: removal of the solids from waste product or clarification of waste liquid for further use. 4. Screening: separation of a few oversize particles from a quantity of materials. 5. Liquid cleaning: cleaning of wastewater or removing the solids from recalculating liquid.
Application in
♦ Dry classification

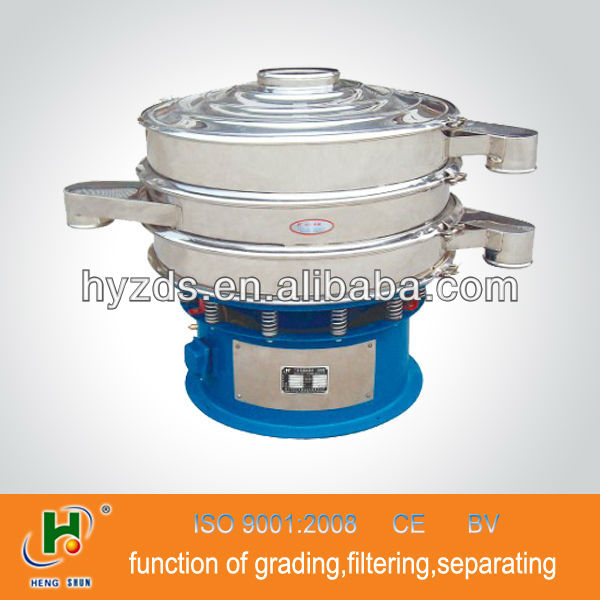

The pictures of cocoa powder sieve
The certifications of powder sieve
According to your different capacities, 7 standard models of cocoa powder sieve can be offered to you, if you need more communication please call us or email us asap. |
Condition: |
New
|
Type: |
Circular
|
Application: |
Ore
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
HENG SHUN
|
Model Number: |
HY-1000-2S
|
Voltage: |
220V,380V, or as your request
|
Power(W): |
1.5kw
|
Dimension(L*W*H): |
1160*1160*950mm
|
Weight: |
250kg
|
Certification: |
BV,CE,ISO
|
Warranty: |
one year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Power source: |
Vibration motor
|
Noise level: |
Low 60db
|
Function: |
Sieving, separating, grading
|
Customization: |
Accept
|
Cleaning system: |
Rubber ball
|
Capacity: |
From 300kg to 5t per hour
|
Screen mesh: |
5 - 500mesh
|
Business type: |
Manufacturer
|
Shape: |
Round
|
Certificate of origin: |
Accept
|
