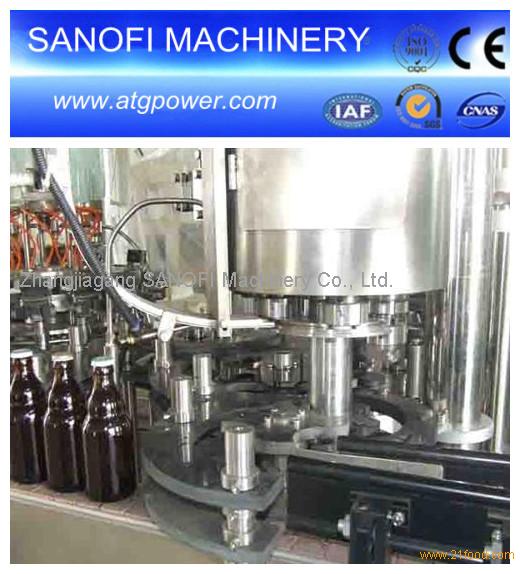

High Quality Beer Filling Machine

FOB Price:Price can be negotiated

Update Time:2022-11-03

Contact Supplier

Product Description

Filling Part

Filling Machine uses spring type mechanical device toelevate glass bottles, big bearings to support beer tank above filling valves.

The filling machine has the function of closeing fillingvalves when there is broken bottle, and washing away broken bottle. The ventpipe has automatic foam-removing device.

It is driven through gears inside the machine frame.

Link-wheels in rinser, filler and capper are transported inringed support of bottle-neck.

Capping Part

Capping part of the machine with highest precision.Stainless steel crown pressing plunger and mechanical mixing type magnet crownunscrambler ensure crowing clean and secure. Hopper, crown picking, and crownpressing all use magnet transportation. Crowning is secure and it has abilityof pressure unloading to reduce the broken bottle rate.

Crown distributing groove is equipped with downwards cappick-out device.

Technical Parameters:

Model	BGF18-6
Filling heads	18
Capping heads	6
Production capacity	3000-4000B/H
Applicable bottles	diameter 52-84mm, height 200-350mm
Aseptic air consumption	0.4m3/min(0.4-0.6Mpa)
CO2 consumption	18g/100l
Rated voltage	220V/380V
Control voltage	24V
Main motor power	1.2Kw
Hopper motor power	0.36Kw
Vacuum Pump motor power	0.75Kw
Overall dimensions	1700×1100×2300mm (L×W×H)
Total weight	2000Kg
