cocoa auto pack Machine
Suitable for powder,tiny granules,high precision,human packing
Auto-seal, auto-clip bag
High quality hotsell cocoa auto pack machine
1. Brief introduction:

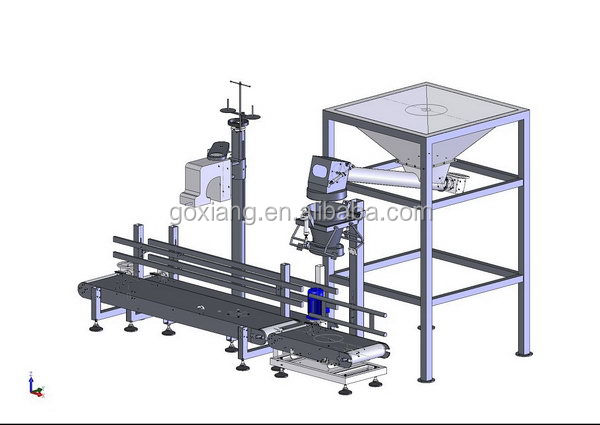

The GX-LD1 quantity-fixing packing machine for powder mainly by the quota weighting system, deliver belt and the sealing machine, the bag sewing closer, the conveyor belt in advance and so on composes.(customer can choice the sealing machine and the bag sewing closer to meet their product need).

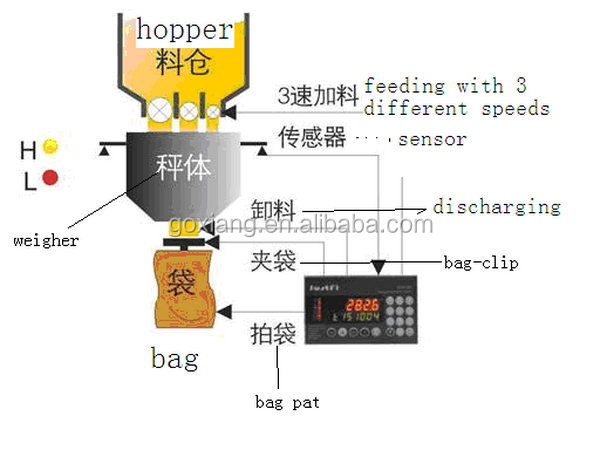

This Packaging Machine complete: the measurement, clamps work ,backfill, seal, seam package, transmission and so on. It is suitable for the material no matter easy to flow or the fluid bad, like powder granular materials , bread flour, feed, rice, legumes, chemical additive, white sugar, dye, laundry powder, industrial chemical,etc. The powdery material uses the two speed screw to feed the material, the granulated material uses the mode of vibrations to feed the material, can design for the request of customer packing material. The outward appearance of complete machine design is practical and artistic, the essential component uses the world or the domestic famous brand, it was quick, higher precision,suitable for heavy package.
2.Technical parameter:
Model | GX-LD1 |
Metering mode | Direct weighting |
Feeding mode | Double speed screw feed material |
Package weight | 5-25KG/10-50KG |
Package accuracy | ±0.2% |
Package rate | ≤3 bags/min |
Power supply | 380V/50Hz |
Total power | 1.2Kw |
Overall dimensions | 3000 (change follow the deliver belt )×1600×2100 mm |
Wish we can do a serious job for your esteemed company: +86 187 2120 6379
cocoa auto pack machine
Type: |
Other
|
Condition: |
New
|
Application: |
powder and small grain white sugar,Flour, cement, starch
|
Packaging Type: |
bag
|
Packaging Material: |
All suitable
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
380V
|
Power: |
1.2KW
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
GOFLYING
|
Model Number: |
GX-LD1
|
Weight: |
350kg
|
Dimension(L*W*H): |
3000*1600*2100mm
|
Certification: |
CE&ISO9001
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
cocoa auto pack machine
|
Other name: |
high quality cocoa auto pack machine
|
Material: |
SS304
|
Guantee time: |
One year free
|
Certificate: |
CE&ISO9001
|
Brand: |
GOFLYING
|
