high quality instant coconut water powder filling machine,China JIERUISHI price supplier

high quality instant coconut water powder filling machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $4,000 - 6,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

instant coconut water powder filling machine
1)Stainless steel 304
2)Continuous and automatic
3)factor price

instant coconut water powder filling machine

CJ-M10 powder filling machine Including:

CJ-M10 edges sealing packig machine

CJ-M10 Auger filler

CJ-M10 Big auger Elevator

CJ-M10 finished products Conveyor

Application:

Suitable for all kinds of powder, such as: Flour, coffee powder, starch, spice, etc

Technical characteristics

PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
Servo control, high precision orientation, size more nicety.
External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
Close down type mechanism, defending powder into inside of machine.

Technical parameters:

Type	CJ-M10
Bag length	100-400mm(L)
Front bag width	75-130mm(W)
Side width	40-80mm
Width of roll film	5-10mm
Max width of roll film	460mm
Packing speed	30-40bags/min
Measuring range	3000ml(MAX)
Air consumption	0.65Mpa
Gas consumption	0.4m³/min
Power voltage	220VAC/50HZ
Power	5.5Kw
Dimension	(L)1500×(W)1220×(H)1800mm
Deadweight of machine	1200KG

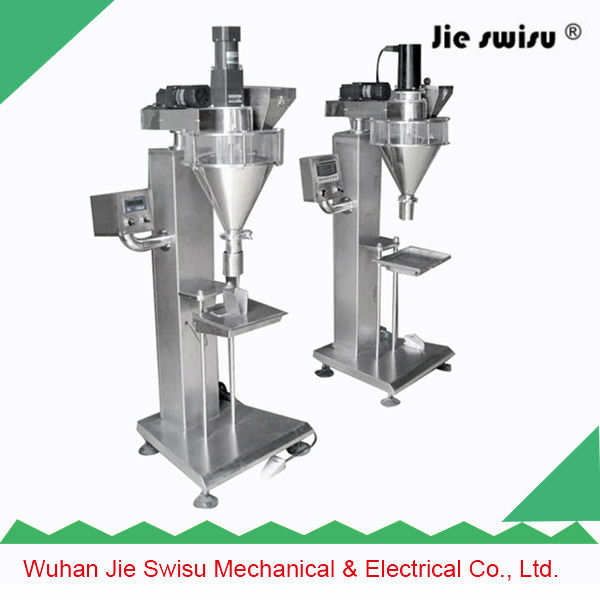

Auger Filler

Technical parameters

Filling Weight	10-1000g
Filling Accuracy	≤±1%
Filling Rate	40 - 120 times/min
Power Supply	3P / 220V-415V 50/60Hz
Total Power	1.9KW
Total Weight	200Kg
Overall Dimension	1060×600×1100mm
Hopper Volume	45L

Big Auger elevator

Technical parameters

Model	CJ-M10 Auger elevator
Charging Capacity	3 CBM/hours
Powder Supply	900W
Diameter of pipe	141mm
Hopper Volume	230L
Power Supply	3P 208-415V 50/60HZ
Total Weight	140 KG
Overall Dimensions of Hopper	(L)1023mm(W)823mm(H)870mm
Remark	Other charging capacity could be designed

Finished products conveyor

Technical parameters:

Model	CJ-M10 Finished Products Conveyor
Convey speed	Speed can be changed(fast or slow depends on your choice); Average speed: 30m/min
Power	220V/40W/50HZ
Belt	Food grade polypropylene(PP)
Weight of machine	100KG
Packaging size	1600mm ( L ) 550mm(W)1000mm(H)

Packing size of machines

Type	output(kg)	dimension(mm)	weight
CJ-A	<300	3700*1200	320KG
CJ-B	<500	4300*1300	380 KG
CJ-C	<800	4800*1300	750 KG
CJ-D	<1000	5200*1500	1200 KG
CJ-E	<1500	5400*1700	1800 KG
CJ-F	<2000	5800*1800	2400 KG
CJ-G	<4000	6500*1800	3500 KG

Type:	Filling Machine,powder filling machine	Condition:	New	Application:	Food,Medical,Chemical,Machinery & Hardware
Packaging Type:	Cartons,Cans,Bottles	Packaging Material:	Wood	Automatic Grade:	Semi-Automatic
Driven Type:	Electric	Voltage:	220v	Power:	15kw,5.5Kw
Place of Origin:	Hubei China (Mainland)	Brand Name:	JIERUISHI	Model Number:	CJ-M10
Weight:	1200KG	Certification:	CO	After-sales Service Provided:	Engineers available to service machinery overseas
origin:	Wuhan/China	material:	304SS	usage:	powder filling machine
Measuring range:	3000ml(MAX)	Air consumption:	0.65Mpa	Gas consumption:	0.4m³/min
Power voltage:	220VAC/50HZ	GARANTEE:	ONE YEAR
