High Quality Nature Spring Bottled Mineral Water Production Iine,China Beyond price supplier

High Quality Nature Spring Bottled Mineral Water Production Iine

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Year nature spring bo

Payment Terms: US $12,000 - 25,000 / Set

Update Time:2021-12-18

Contact Supplier

Product Description

nature spring bottled Mineral Water
1.high efficiency
2.CE certification
3.capacity:2000-20000bph

High Quality Nature Spring Bottled Mineral Water Production Iine

1. Main technical data of mineral water machine:

Model	CGF16/12/6	CGF18/18/6	CGF24/24/8	CGF32/32/12	CGF40/40/12	CGF48/48/12
Production Capacity:500ml(B/h)	3000-5000	6000	10000	14000	17000	20000
Suitable Bottle Standard:(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard:(mm)	φ50-φ110
Filling Pressure:(Mpa)	0.2-0.3
Installed Capacity:(L)	3.13	3.84	3.84	5.6	6.3	7.3
Filling Temperature:	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Overall Size:L×W×H(mm)	2400×1670 ×2350	2470×1970 ×2350	2865×2170 ×2350	3700×2570 ×2350	3800×2950 ×2400	4500×3400 ×2400
Total Weight:(kg)	2500	3000	4000	5000	6000	6500

2. Application of mineral water machine:

1. The key parts for washing, filling and sealing are made of high quality stainless material, with the features of advanced technology, completed system, reliable performance, easy in operation, etc

2. The separated Production Line is in straight line. The Filling Machine and capping machine can be changed

3. This line is widely used in filling all kinds of non-carbonated drinks, such as fruit juice, fruit wine, mineral water, tea, Chinese medicine and other liquid.

4. This series machine applies for rinsing, filling and capping all kinds of plastic bottles, such as PVC, PET bottles etc.

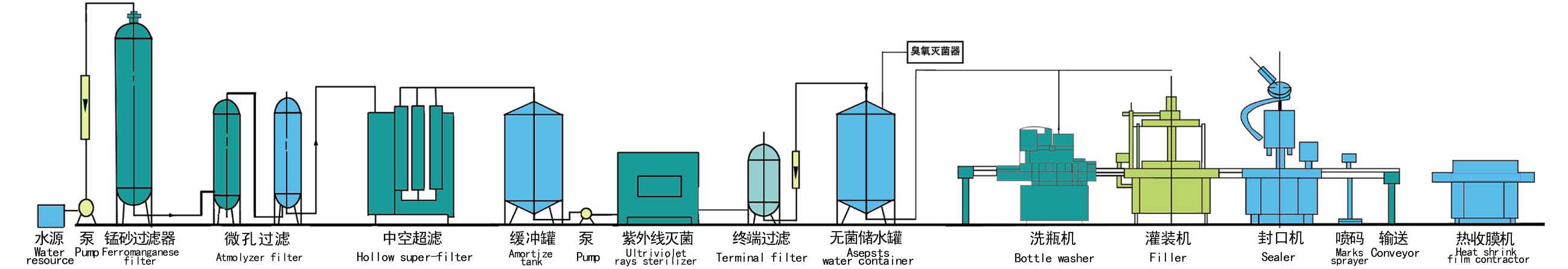

5. This production line is composed by auto bottle washing, filling machine, auto capping machine and conveyor system.

3. Filling part f eatures of mineral water machine:

1. 20 job memory for easy recall.

2. No bottle, no filling safety device.

3. Machine construction in Stainless Steel 304.

4. No change parts are required for different bottle sizes.

5. Diving type filling system prevents spillage during filling.

6. You can choose A type, B type or C type for different filling range.

7. Each rotary Lobe pump is driven by an individual motor for high accuracy liquid filling.

8. PLC combined with touch screen control system. Filling volume can be easily adjusted.

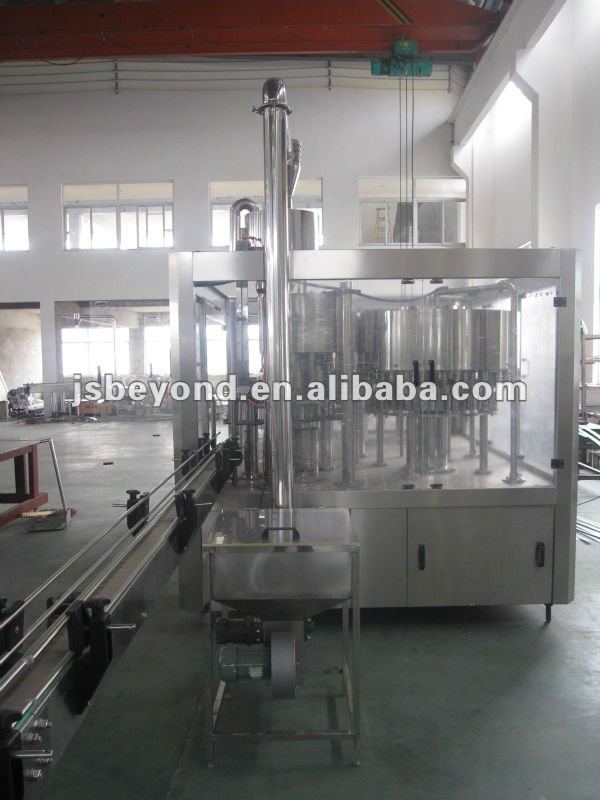

4. Monobloc picture of mineral water machine:

...

Type:	Mineral Water	Source:	Ground	Packaging:	Plastic Bottle
Certification:	ISO	Shelf Life:	1 year	Weight (kg):	2500kg
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Beyond	Model Number:	natural spring water
Machine:	nature spring bottled mineral water	Control:	PLC	Driven Type:	Electric
Power:	By order	Processing:	Filling Machine	Warranty:	1 year
Capacity:	Capacity	PLC:	Mitsubishi

Other Products

High Quality Nature Spring Bottled Mineral Water Production Iine

Matural Spring Water Line/Mineral Water Filling Factory

Company Profile

Name: Zhangjiagang Beyond Machinery Co., Ltd.

Main Products: Filling machine,water treatment,packing machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Southern Europe, Northern Europe, Central America, Western Europe, Eastern Asia

Address: sanxing industry park, jinfeng town,

Zhangjiagang Beyond Machinery Co., Ltd. is experienced in beverage filling and packing machinery such as water/juice/cola processing line. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry in China.

For beverage machine, we have the capacity of 2000-40000 BPH for hot filling (juice and tea filling) and mid-temp filling and aseptic cold filling lines; the capacity of 2000-40000 BPH for mineral water and purified water producing line; the capacity of 2000-36000 BPH for carbonated beverage and cold filling producing line; the capacity of 1000-8000BPH for vinegar and alcohol producing line; the capacity of 100-2000 BPH for 1 to 5 gallon barrel producing line; the capacity of 2000-10000 BPH for milk producing line; all kinds of water treatment equipment; PET perform inject and blowing-stretching machine; plate and tube UHT device, and CIP system.

We also carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sales and after-sales service. Our products are sold well around the world.

We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relationships with you in the near further.
