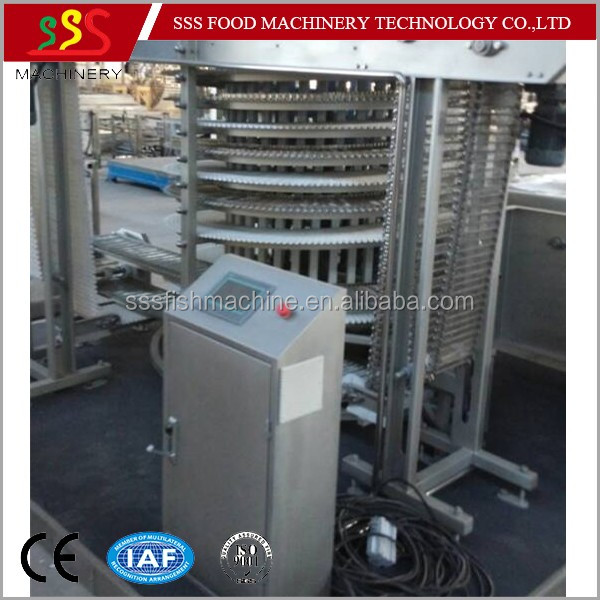

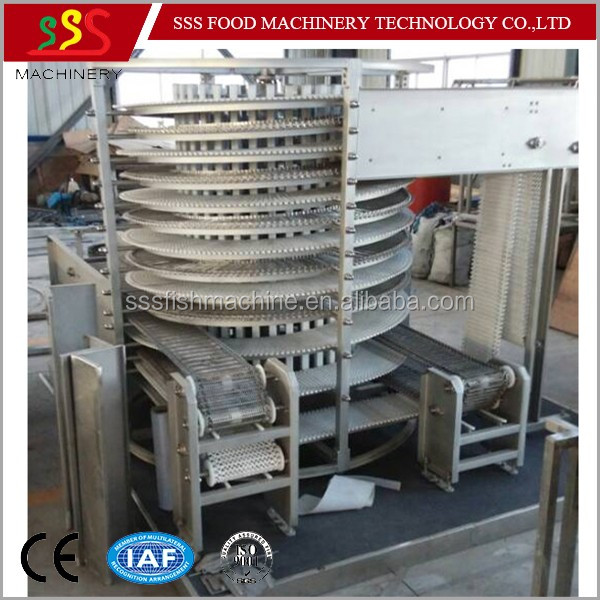

High Quality Spiral Freezer IQF Freezer for Fish Shrimp Meat Chicken Cake Seafood
1. freezing product and temperature
Freezing product: fish, meat, seafood, pastry, poultry, ice cream, etc.
Freezing capacity: 300kg/hour
Freezing method: IQF
Temperature of inlet: 15°C
Temperature of inlet: -18°C
Temperature of evaporation: -42°C
Temperature of inner: -35°C
Freezing time: 15-90 min (adjusted)
2. technical data
| Model | SSS-DLD300 |

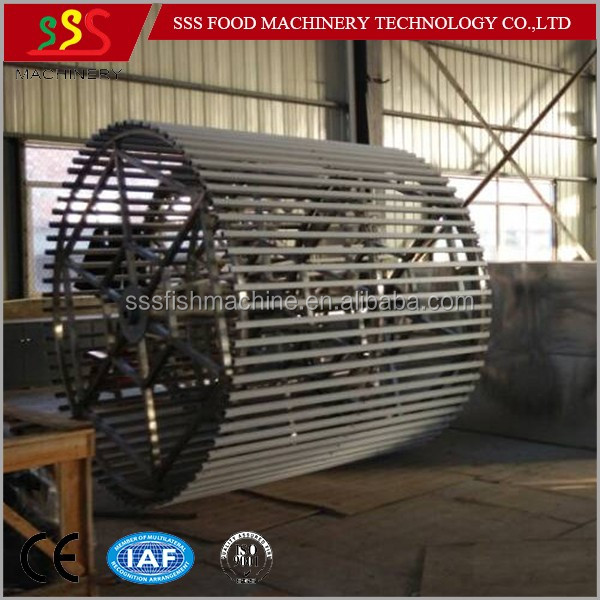

| diameter of tumbler | 2500mm |
| net height between layers | 200mm |
| belt width | 500mm |
| belt length | 185m |
| inlet length | 2300mm (equipped with cleaner and blower) |
| outlet length | 1000mm |
| freezer dimension | 7600x3700x3300mm |
| power | 11kw |
3. main characteristics
1) Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;
2) All components can fully meet the hygienic requirements of HACCP;
3) This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;
4) Driving control is made of fine stainless steel;
5) There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;

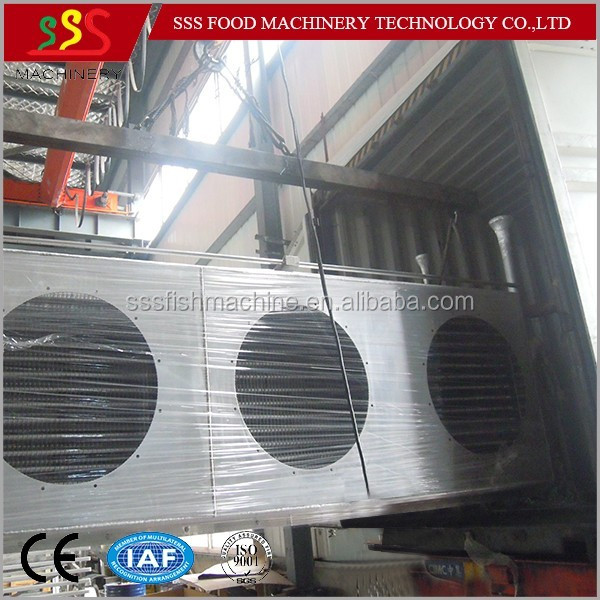

6) It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;
7) The bottom is made of stainless steel in 3mm thick,no leak and no risk of burst;
8) Main control components are from Schneider, and control box is made of stainless steel;
9) Reducer is from SEW, which can ensure high efficiency and long life.
4. This machine can be customized as per your requests.
web:www.sssfoodmachinery.com
1. Pre-sales service:
Sales person, project manager, technology engineer, accountant staff
Professional responsing-team: would be very fast and exactly to send your offers
2. Online/sale service
Super and solid quality
Fast delivery
Standard export package or as your demand
3. After-sales service
Assistance to build factory
Repairing and maintenance if any problem occur in warranty

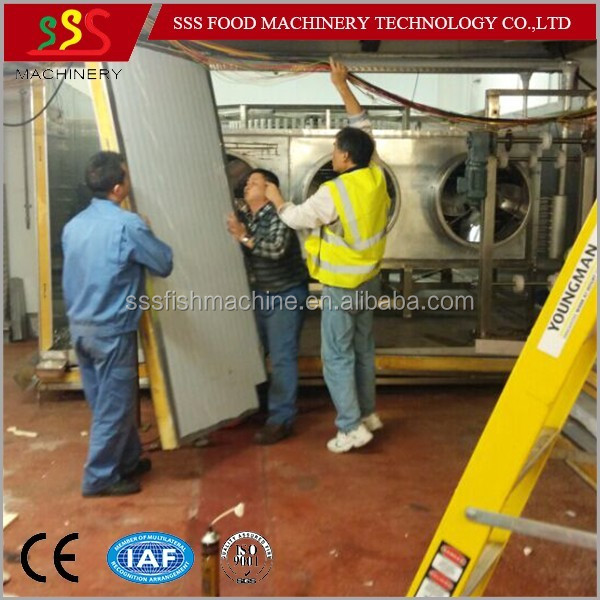

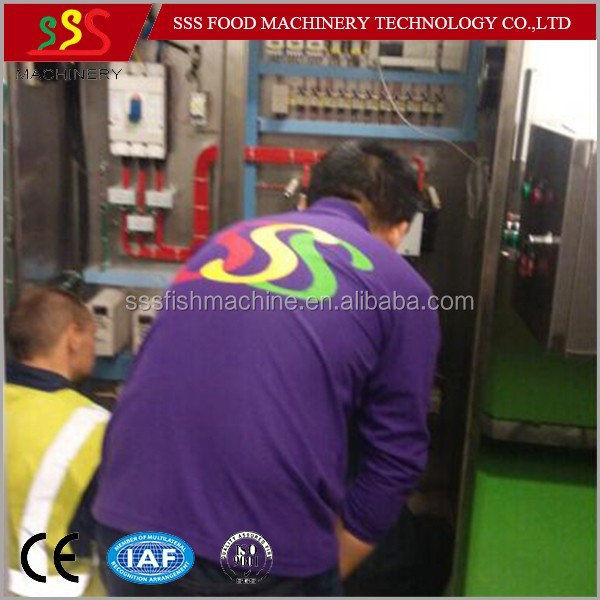

Installation and clerks training
Spare and wearing parts for free or with big discount
Any feedback of machines can be told us, and we will try our best to support
4. Other cooperation service
Technology knowledge share
Factory building advising
SSS FOOD MACHINERY TECHNOLOGY CO.,LTD.is located in Chaohu City, Anhui Province.The city,named after one of the five biggest freshwater lakes in China,is known for its richness in aquatic resources and products.
We are an industrial and trading company,specialized in fish processing and food frying machinery.Our service ranges from design and manufacture to sale as well as consultation.We offer Fish Filleting Machines,Fish Skinners,Scalers,Multi-Functional Auto Continuous Fryers,etc.Our senior engineers have more than 20 years' professional experience in the field.Taking advantage of advanced technology and innovative design conception as well as rich experience in fish processing machinery,we have been providing the highest level equipment for clients from all over the world. Our main markets are EuropeAmerica,New Zealand,Southeast Asia,Israel,and so on.
Over the past 10 years,we have become a long-term supplier for many aquatic product companies and helped many fish and food plants establish their production lines.Based on superior quality,competitive price and the best service,we have gained great approval from customers.
Today,SSS FOOD MACHINERY TECHNOLOGY CO.,LTD.will continuously stick to the core principle of "Sincerity,Service and Success"and offer the best machines for customers by virtue of keeping researching and developing.We are genuinely looking forward to cooperating with you and we hope to create a bright future with you together.
