Product Description

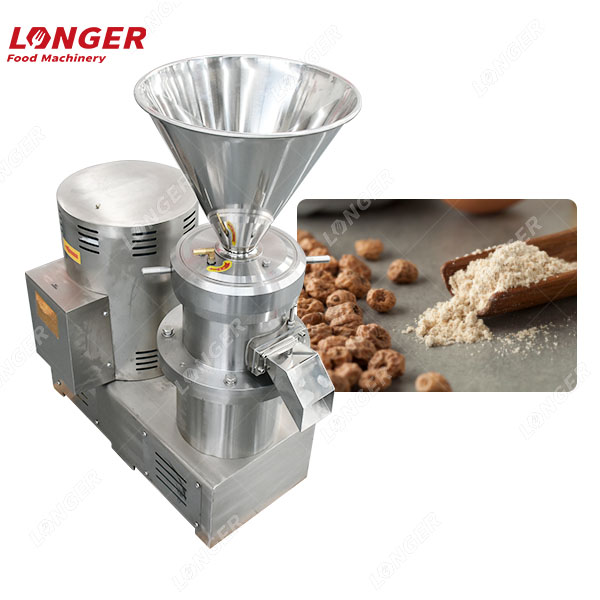

The colloid mill is composed of full stainless steel. The basic principle is to pass between the fixed and movable teeth that are relatively linked at high speed. Except for the motor and some parts of the colloid mill, all the parts in contact with the material are made of high-strength stainless steel. In particular, the key moving and static grinding discs are strengthened, so they have good corrosion resistance and wear resistance, so that the processed materials are pollution-free, sanitary and pure.
The basic working principle of colloid mill is shearing, grinding and high speed stirring.Grinding depends on the relative motion of two tooth surfaces, one of which is rotating at high speed and the other is stationary, so that the material passing between the tooth surfaces is subject to a great shear force and friction force. Meanwhile, under the action of complex forces such as high-frequency vibration and high-speed vortex, the material can be effectively dispersed, floating, crushed and homogenized.
Advantages of tahini making machine
1. The almond and peanut can be directly make into almond and peanut butter without pre-crushing.
2. It combines homogeneous machine, ball mill, three rollers machine,
shearing machine, mixer, etc a variety of mechanical performance.
3. Small in size, covering little space.
4. High yield and easy operation.
FAQ
Q1. Can I change the material of the stator and rotor?
A1: The material texture is soft. If the acid content is high, the 304 material can be used. It is generally not recommended to change the rotor material.
Q2. How is the discharge temperature?
A2: When grinding nuts, beans, long-term work monomer colloid milling temperature is 70-80 degrees Celsius, double colloid milling temperature is 100 degrees Celsius.
Q3. How to clean the machine?
A3: Clean the machine with water, dry it with a high-pressure air gun, keep it dry in a dry place, check the machine regularly and apply oil on the machine.
Q4. How to grind repeatedly?
A4: The colloid mill grinding nozzle can be changed to the circulating return pipe. The circulating return pipe is provided with a three-way valve. It can be discharged or cycled as needed. All models can be changed. The 80 and 110 return pipes are 25mm in diameter, 130/. 180 return pipe diameter 32mm.
Q5. How often to replace the fixed rotor?
A5: The nut material is generally grind 100-200T, the rotor must be replaced, for other materials, according to the hardness of the material and equipment using frequency.
Q6. How to use the cooling nozzles?
A6: The machine should be used cooling nozzles first, then start to grind material.
