High quality Touch Controller Fruit and Vegetable Dryer,China KINKAI price supplier

High quality Touch Controller Fruit and Vegetable Dryer
FOB Price:Price can be negotiated
Production Capacity:3000 Set/Sets per Year
Payment Terms: US $3,000 - 25,000 / Set
Update Time:2023-04-16
Product Description

1.New design energy saving Dryers;
2.PLC+touch screen controllers
3.Low temperature drying
4.Supply drying chamber

KINK AI Fruit and vegetable dryer  introduction:

1. New designed energy saving dryer with two times waste heat recovery
Adopt closed type circulating heating or cooling drying, drying performance better than ordinary heat pump dehumidification drying energy saving over 30%, no exhaust waste heat emissions, no noise pollution, environmental protection
2. Economical:
Heat pump dryer running cost just as 40% of oil dryer, 50% of coal burning boiler, 30% of electric boiler.Heat pump dehumidification drying method of the closed cycle, saving costs
3. Low temperature drying method(15-50°C/60°C/80°C),similar nature drying.
4. During drying, the material does not craze,does not distortions, non-discolouring,never degenerate, non-oxidize, drying completely,with good Rehydration, keep nutrient content;
5. Using our patented technology: circulating heating & dehumidification, broaden the application of a dehumidifier in industrial drying
6. Adopt international brand name compressor, expansion valve etc

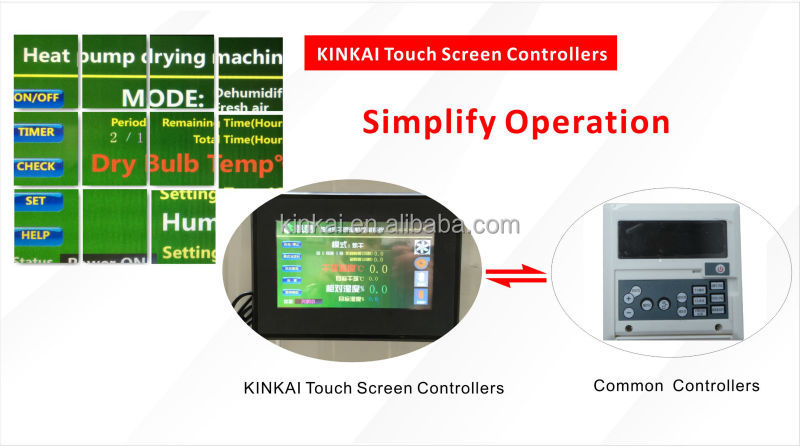

7. Adopt PLC+touch screen controllers, operation easily and more accurate
8. Adopt programmable control mode, can be set different drying curve, satisfy different kinds material drying methods
9. Multifunctions: heating drying / cooling drying / dehumidify
10.Many protection: high pressure protection,low pressure protection, overloading protection and phase protection etc
11.Power failure remember
12.Stable operation without being influenced by weather
13.Can supply dryer+drying chamber

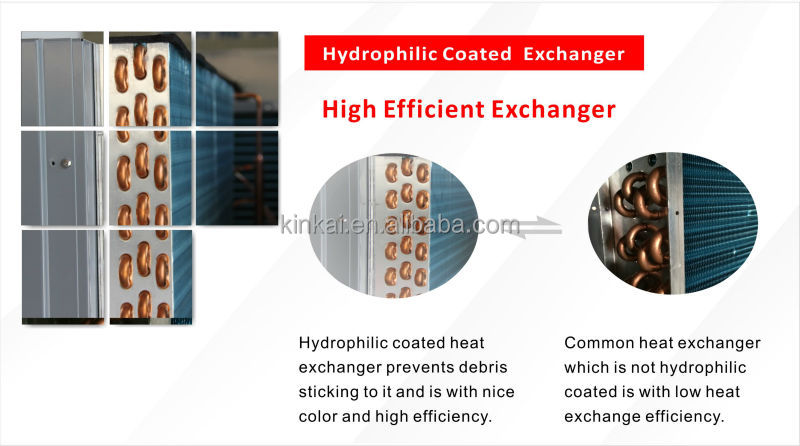

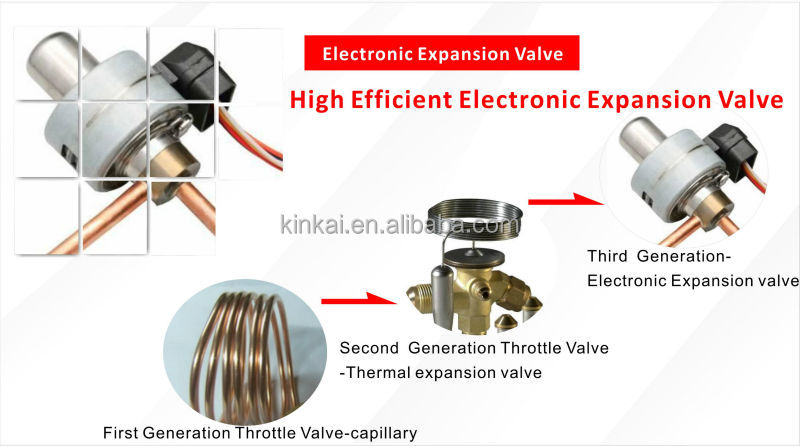

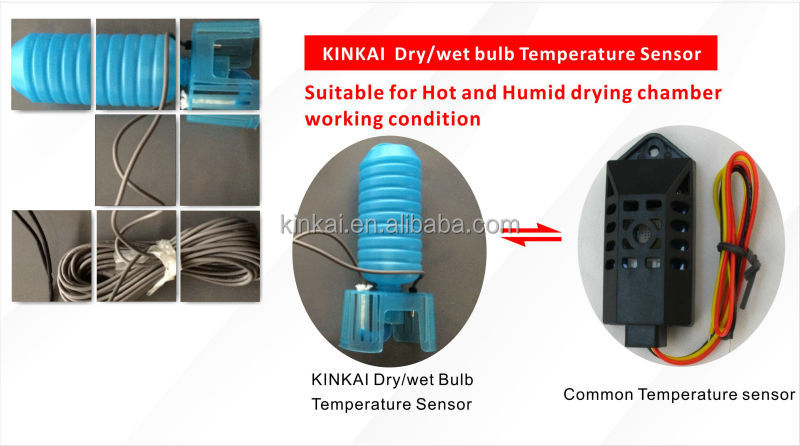

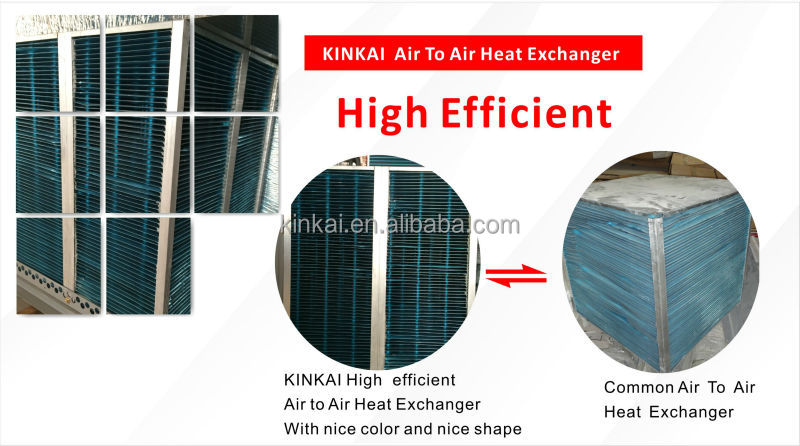

KINKAI Fruit and Vegetable Dryer Features:

High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer



KINKAI Fruit And Vegetable Dryer  Working Principle:

High quality Touch Controller Fruit and Vegetable Dryer



Technical Parameters



Model JK10RD
Power supply V/PH/HZ 380/3/50
Power input KW 10.8
Running current A 22.5
Auxiliary electric heater(option) KW 9
Heating capacity KW 35
Cooling capacity KW 25
Dehumidification amount L/H 40
Max. hot air Temperature °C 75
Working ambient temperature °C -10~45
Refrigerant Kg Mixture type/8.0
Compressor Type Scroll
Brand Copeland/Danfoss
Quantity 2
Noise dB(A) 70
Heat regenerator size mm 550*600*680
Fan motor for heat regenerator
(dehumidify)
Power input 550W
Wind volume 3500m3/H
Size(mm) 580*320*580
Wind valve Power input 6W
OPEN Exchange fresh air
CLOSE Drying
Size(mm) 720*640*125
Fan motor for Evaporator
(2 units)
Power input 780W/unit
Wind volume 2*10500m3/H
Rotate speed 1350R/Min
Hot air outlet mm 860*1485
Hot air return inlet mm 1050*1450
Dimension(L*W*H) mm 2100*1460*1590
Net weight Kg 480
Gross weight Kg 540

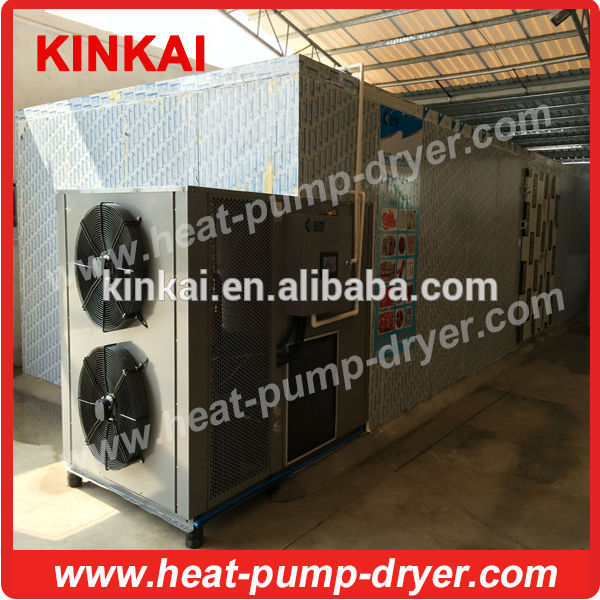

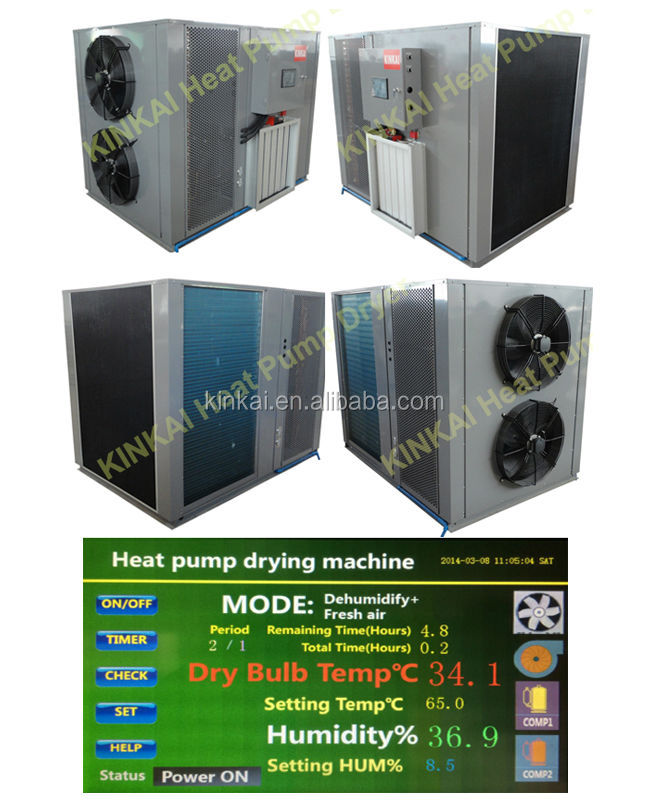

Machine pictures

  High quality Touch Controller Fruit and Vegetable Dryer

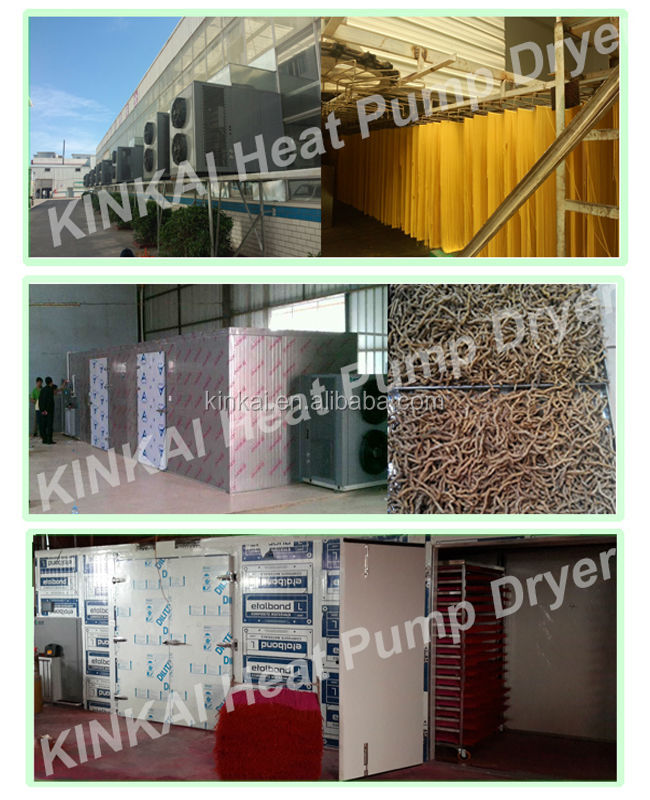

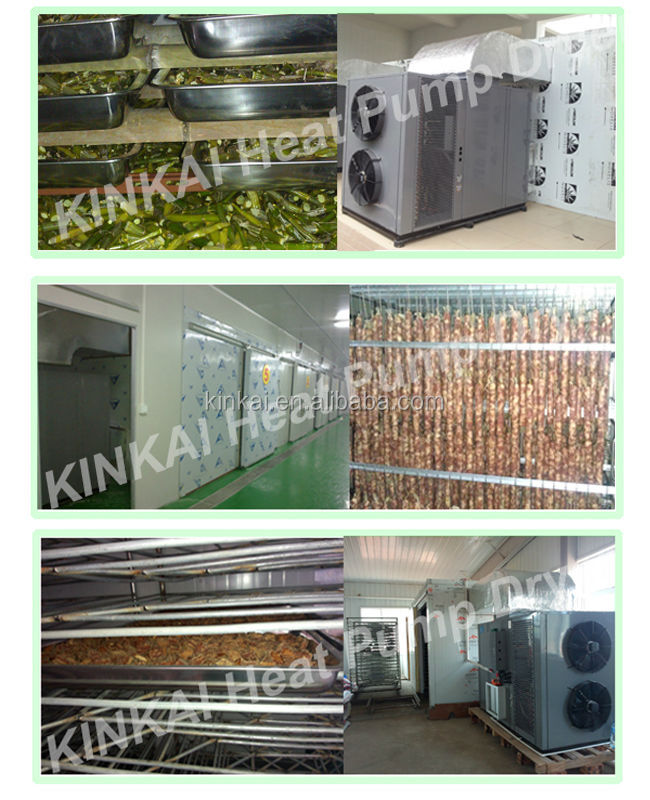

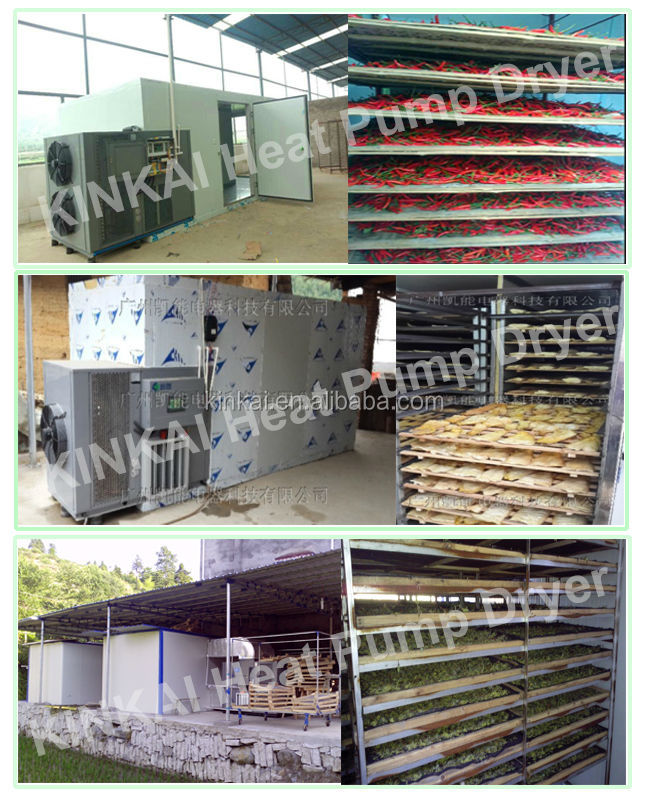

Drying Project Pictures

High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer High quality Touch Controller Fruit and Vegetable Dryer

Recommend dryer+drying chamber sizes

1.Single dryer+drying chamber
Product name Model Size Quantity Remarks
Drying machine JK10RD 35.0KW 1 Stainless steel body for option
Drying chamber S100mm(thickness:100mm) 6000 x 2800 x 2200mm 1
Drying chamber material Polyurethane(Two sides:steel) Steel sheet(thickness:0.326mm) /
Door S100mm(thickness:100mm) 1000 x 1800mm 1
Partition sheet Thickness:25mm 4300 x 2000mm 1
Fan motors 3 # 250W/unit 8
Suitable for 1000KG/batch



2. Double dryers+drying chamber
Product name Model Size Quantity Remarks
Drying machine JK10RD 35.0KW 2 Stainless steel body for option
Drying chamber S100mm(thickness:100mm) 10000 x 2800 x 2200mm 1
Drying chamber material Polyurethane(Two sides:steel) Steel sheet(thickness:0.326mm) /
Door S100mm(thickness:100mm) 1000 x 1800mm 4
Partition sheet Thickness:25mm 8300 x 2000mm 1
Fan motors 3 # 250W/unit 16
Suitable for 2000KG/batch



Remarks:The above recommend dryer+drying chamber sizes is just for your kindly reference,hope that can help you know which machine suitable for you. If the machine above can't meet your needs,please let us know,we have the other kind machines for you. Or you can visit our drying machine website.

High quality Touch Controller Fruit and Vegetable Dryer





Condition:
New
Place of Origin:
Guangdong China (Mainland)
Brand Name:
KINKAI
Model Number:
JK10RD
Type:
Dryer
Voltage:
380V
Power(W):
10.8KW
Weight:
408KG
Dimension(L*W*H):
2100*1460*1590mm
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
No overseas service provided
Power supply:
380V/3PH/50HZ
Heating capacity:
35KW
Cooling capacity:
25KW
Rated current:
22.5A
Dehumidify capacity:
40L/h
Auxiliary electric heater(option):
9.0KW
Max. hot air Temperature:
75℃
Working ambient temperature:
-10~45℃
Compressor Brand:
Copeland / Danfoss
