1.In mould cutting.
2.Low energy consumption
3.Contact multi-zone heating
4.Automatic stacker
5.Easy operation
1.Application scope :
All kinds of disposable container and other plastic products, such as fast food containers, dishes, trays, bowls, lids, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, cooling fishery products, toys, small hardware, clothes and all kinds of commodity,
2.Main Technical Parameter :
Model | TQA-520/580 |
Forming area | 520mm×580mm |
Forming height | 100mm |
Working speed | 25 cycles/min at max |
Suitable material | BOPS/OPS, PVC, HIPS, PET, PS,etc |
Overall dimension | About 5200mm x 1500mm x 2350mm |
Weight | About 2.5T |
3.Machine Characters:

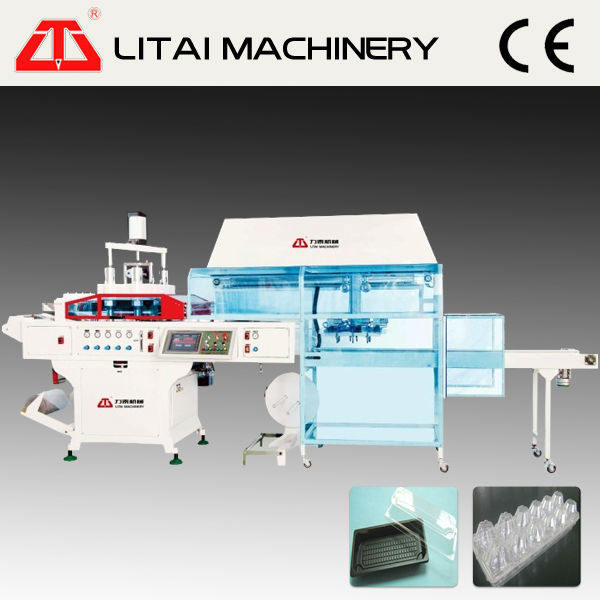

Machine showed at Exhibition Machine at our workshop
Robot stacking unit with adjustable grippers Automatic stacking
Touch Screen Main Electric in thermoforming machine
Heating Plate use 38 CrMoAlA Servo motor control transport
1. we has a professional deisgn department , who can develop high quality machine.
2. we has a professional after-sale department, give customer best service.

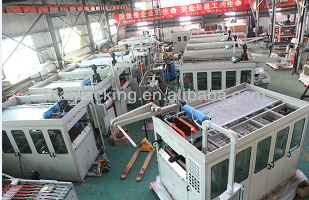

manufactutre workshop
exihibition enterprise honor
1.machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
2.gaurantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
Condition: |
New
|
Automatic Grade: |
Automatic
|
Usage: |
Plastic Forming Machine
|
Place of Origin: |
Zhejiang China (Mainland)
|
Brand Name: |
LITAI
|
Model Number: |
TQA-520/580
|
Voltage: |
According to requirements
|
Power(W): |
23kw
|
Dimension(L*W*H): |
L5200*H1500*H2350mm
|
Weight: |
About 2.5T
|
Certification: |
CE
|
Warranty: |
One year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Forming area: |
580 x 520 mm
|
Forming depth: |
100 mm
|
Suitable Material: |
Bops,Ps,Pet, Pvc,Hips
|
Feeding Sheet: |
Servo motor
|
Max.Forming speed: |
25cycles/min
|
Function: |
Forming&Cutting, Stacking
|
