Dear friends ,
welcome to our company site !

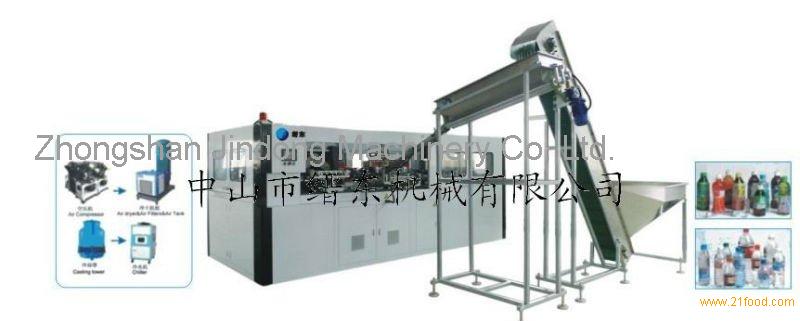

JD series automatic bottle blowing machines characteristics
1. High speed stretch plastic bottle blow molding machine(professional efficient)
2. 7600-8000pcs/h
3. Accessories for the world famous brand is more than 90%
4. Adjust infrared heating lamps based on touch the temperature, the operation is simple, convenient, strong penetrating power, bottles of embryo heated, heating uniform, rotating rapid and stable.
JD-08X Main technical parameters
| Composition |
Project |
Technical parameters |
| Products conditions |
Products maximum volume(ml) |
600mL |
| Products maximum diameter (MM) |
Φ70 |
|
| Products size bottle (MM) |
Φ12 ~ Φ38 |
|
| Products maximum height(MM) |
<240 |
|
| Suitable for embryo tube maximum height (MM) |
<115 |
|
| Shut the mould trip |
82 mm |
|
| Bottom-formwork trip |
50mm |
|
| Bottle spacing (MM) |
76.2 |
|
| Mouldstandardthickness (MM) |
168 |
|
| Production capacity (bottles/hour) |
7,600~8,000 |
|
| Mold cavity number |
8 |
|
| Heating part |
Heating unit |
4 |
| Heating lamp layer |
6 |
|
|
|
Germ tubes seat number (a) |
114 |
| Electrical parameters |
Voltage |
220/380V |
| Frequency |
50/60Hz |
|
| Use power |
24~28.8kw/h |
|
| Installed power |
50.5kw |
|
| Air (High-pressure gas consumption PET bottle volume on and calm) |
Low voltage compressed air pressure |
8~10bar |
| Low voltage compressed air gas consumption |
2.0~2.5m 3 /min |
|
| High-pressure compressed air pressure |
26~35bar |
|
| High-pressure compressed air gas consumption |
3.6~4.2m 3 /min |
|
| Cooling water |
Pressure |
3~4bar |
| Cooling water (temperature≤18 °C ) |
Temperature |
5m 3 /h |
| Weight |
Host\Heating machine\Body,etc |
7T |
| Equipment configuration dimensions |
Sixe (L×W×H) |
4850mm×2150mm×2100mm |
| Richard embryo machine (L×W×H) |
2550mm×2120mm×2900mm |
Zhongshan Jindong Machinery Co., Ltd. was founded in 1997 and is located in Zhongshan, the hometown of the great revolutionary forerunner Sun Yat-sen.
Our company mainly produces bottle blowing machines, molds for oil bottles, soy bottles, water bottles, juice bottles, medicine bottles, cosmetic bottles pesticide bottles and plastic products. We have 15 years of manufacturing experience. Our bottle blowing machines have been upgraded and our two-step semi-automatic bottle blowing machines, infrared turn plate bottle embryo heating machines, crystallization machines and all kinds of precision injection and blowing molds have been well praised by customers. We can design the products according to customers' requirements and produce the best products on the basis of advanced processing equipment and senior design level. Our products have been selling well in more than 50 countries in Asia, the Middle East, Africa, Australia and America. What's more, our sales network has spread all over the world.
In pursuit of customer satisfaction, we invite new and old customers to visit us for a commonly bright future. We provide clients with high-quality products, favorable price and attentive service.
