Highly advanced lining machine for tuna canning factory,Japan Sanyu Machinery Co., Ltd. price supplier

Highly advanced lining machine for tuna canning factory

( Made in Japan by Sanyu )

• Production speed up to 140 epm  for 18L Can Ends
• 15 Year Experiences
• Japan made quality, designed and manufactured by Sanyu Japan

This servo liner can make clean and perfect end lining by Sanyu's original programing software,

and an optional vision system detects defects accurately. We can also supply a vertical Oven

with the liner as below.

                         * The image picture above also includes an otional vision system and vertical oven.

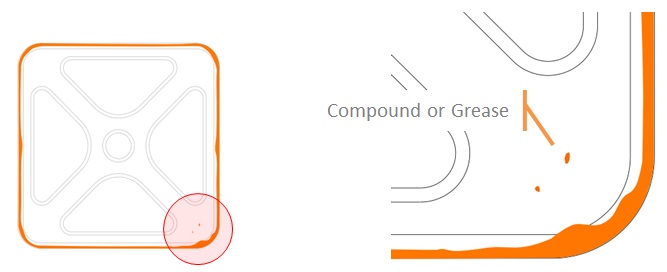

Problems with Mechanical Lining

Traditional mechanical lining machines can not control lining speed, especially on corners.

Compound "squeeze-out" or "on shoulder" problems on ends can cause fatal internal contamination.

Defective lining can cause fatal product recalls. The demand of clean cans has been increasing in the fields

such as;

- Automobile Paints

- High Quality Engine Oil

- Lubrication for Precise Electrical Parts

- Insulation Chemicals

- Food Products such as oil, sauce, batter, etc

Sanyu's Original Servo Lining Technology

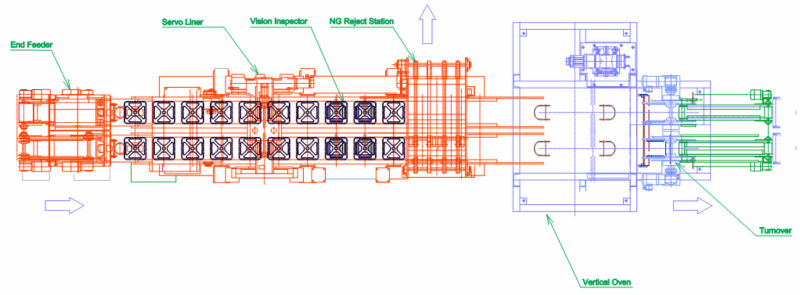

Full Complete Line

Not only a liner, but we can provide a perfect production line, including feeder, vision inspection with automatic reject conveyor, optimized air circulation vertical oven and fully automatic stacker.

Nozzle Cleaning System (Patented)

Vision Inspection System (Optional)

Quick Change-Over

Compoud Saving

Because of the stable lining, you can reduce compound consumption, for instance, 3000 ends by 1 Gallon compound can usage.

Capacity                               Up to 140 epm with 2 lanes

Nozzle Track Precision      Within +/- 0.1 mm

Inspection Methood          Vision system (Optional)

Work Piece Transport       Servo driven indexed transport

Machine Size (mm)           1700 x 3700 x 1400 (WDH) for liner

* Note: FOB Price above is only for a servo lining machine, not a complete line.

Award: Can of he Year

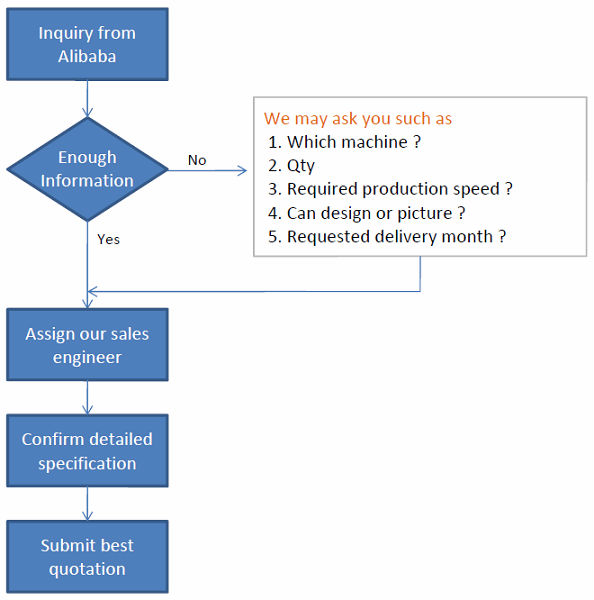

Order Flow:

  Within 6 - 8 months after receipt of firm order, down payment, and drawing approval

Sanyu Machinery has been engaged in can making machinery business for more than

60 years in Japan. Sanyu has installed over 2,000 machines worldwide, and our

“Japan Made Quality machines have been well recognized and used worldwide.

Address: 123-1 Ozumi Yaizu Shizuoka Japan 425-0072
Tel: +81-54-629-4900
