Hot fruit juice filling line,China Zhonguan price supplier

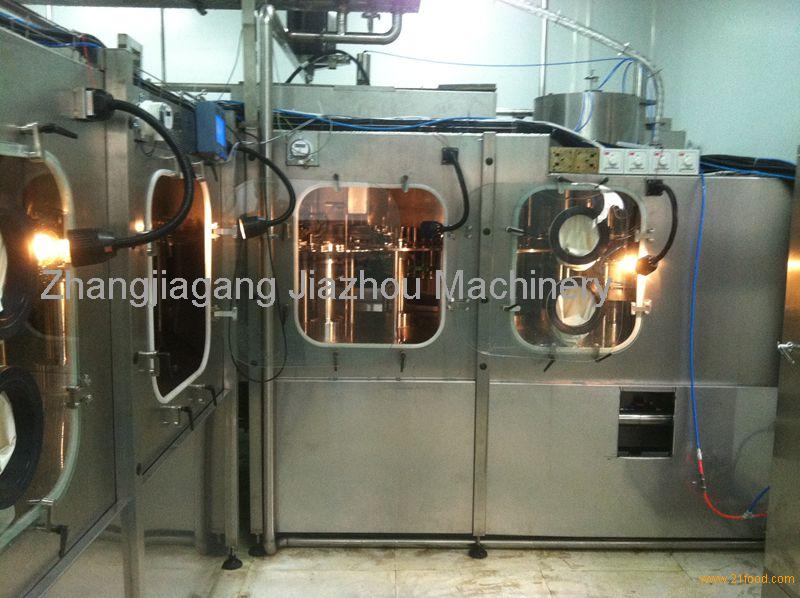

Hot fruit juice filling line

FOB Price:Price can be negotiated

Production Capacity:15sets

Payment Terms: FOB shanghai

Update Time:2023-04-12

Contact Supplier

Product Description

This Juice filling Machine is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.

Main Technical Data
Model	RCGF12125	RCGF18186	RCGF24248	RCGF323210	RCGF404012	RCGF505012	RCGF606015	RCGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	7680×6640 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150

Other Products

Automatic carbonated Soft Drink filling line

High speed Juice production line

600BPH 5gallon drinking water filling line

cola rinser-filler-capper 3 in 1 filling machine

Company Profile

Name: Zhangjiagang Jiazhou Machinery

Main Products: mineral water filling line,juice/tea drink filling line,Carbonated drink filling line,beverage machinery,beverage production line,5BGF beer filling machine

Business Type: Manufacture

Total Employees: 20 ~ 50

Established Year: 2006

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: yujia bridge,Jinfeng Town ,Zhangjiang,China

Zhangjiagang Zhonguan Machinery Co., Ltd. is engaged in the professional development of food and beverage machinery manufacturer. Companies adhere to market-oriented, science and technology as the leading quality of the main line services for the protection, established a perfect quality assurance system. The company has import and agent all kinds of goods and technology import and export business, and contract the Tim Key works.
　　Our main products: all kinds of series of carbonated drinks, mineral water, pure water, fruit juice, tea, soy milk, wine and other food liquids bottled, canned, bottled, canned, etc. cup production line equipment and drinking water, mineral water water, pure water and other kinds of water treatment equipment. Which, CGF series, RCGF series, DCGF Series Trinity bottling lines and QGF bottled beverage production line, QHS series drink mixer, both digestion and absorption of Germany, Italy, Japan, made of advanced technology, product maturity, quality, not only selling domestic 29 provinces, municipalities and autonomous regions, and exported to Russia, Kyrgyzstan, Ecuador, Malaysia, Indonesia, Philippines, Vietnam, Libya, Kenya and other countries and regions, the majority of users. Meanwhile, the company can provide customers with technology consulting, plant graphic design, installation and commissioning, technical training.
　　
