YULONG® MBBR bio media
-- MBBR/ISBAS™(Integrated Suspended Biofilm and Activated Sludge)
-- ISBAS™ process combines the YULONG® Biofilm technology and activated sludge in the same tank.
We started to cooperated with China Academy of science (CAS) in 2001 and successfully developed YULONG® MBBR bio media in 2007.
-- The ISBAS™ is especialy suitable for municipal wastewater but also be used for some industrial applications.
-- We design, professional manufacture and after-sales service of our products in China,
-- Excellent Doctor teams could provide you reliable technical support and devise tailor-made sollution for your actual wastewater project.
-- We have rich experience in doing a lot of successful projects (in pharmaceutical, food industry, etc.,) relying on MBBR technology
-- The future potential of MBBR process technology has been proved to be quite optimistic because of the characters of saving footprint (The land become more expensive because of over development of real estate.) We would like to stand by you to develop more market by using our CORE technology MBBR/ISBAS™.
| Model | YL-Ⅰ | YL-Ⅱ | YL-Ⅲ |
| Size(Φmm) | 10×10 | 25×12 | 35×17 |
| Specific Gravity(g/cm3) | >0.96 | >0.96 | >0.96 |
| Bulk Density(piece/m3) | 365000 | 95000 | 58000 |
| Efficient Surface(m2/m3) | >850 | >500 | >350 |
| Voidage Ratio(%) | >85 | >90 | >92 |
| Dosage Ratio(%) | 15~60 | 15-70 | 15~50 |
| Biofilm Forming Time(day) | 3~15 | 3~15 | 3~15 |
| Nitrification Efficiency(g NH4-N/m3.day) | 400~1200 | 400~1200 | 300~800 |
| BOD5 Oxidation Efficiency(g BOD5/m3.day) | 2000~10000 | 2000~10000 | 1000~5000 |
| COD oxidation efficiency(g COD/m3.day) | 2000~15000 | 2000~15000 | 1000~10000 |
| Applicable Temperature(℃) | 5~40 | 5~40 | 5~40 |
| Service Life(year) | >15 | >15 | >15 |

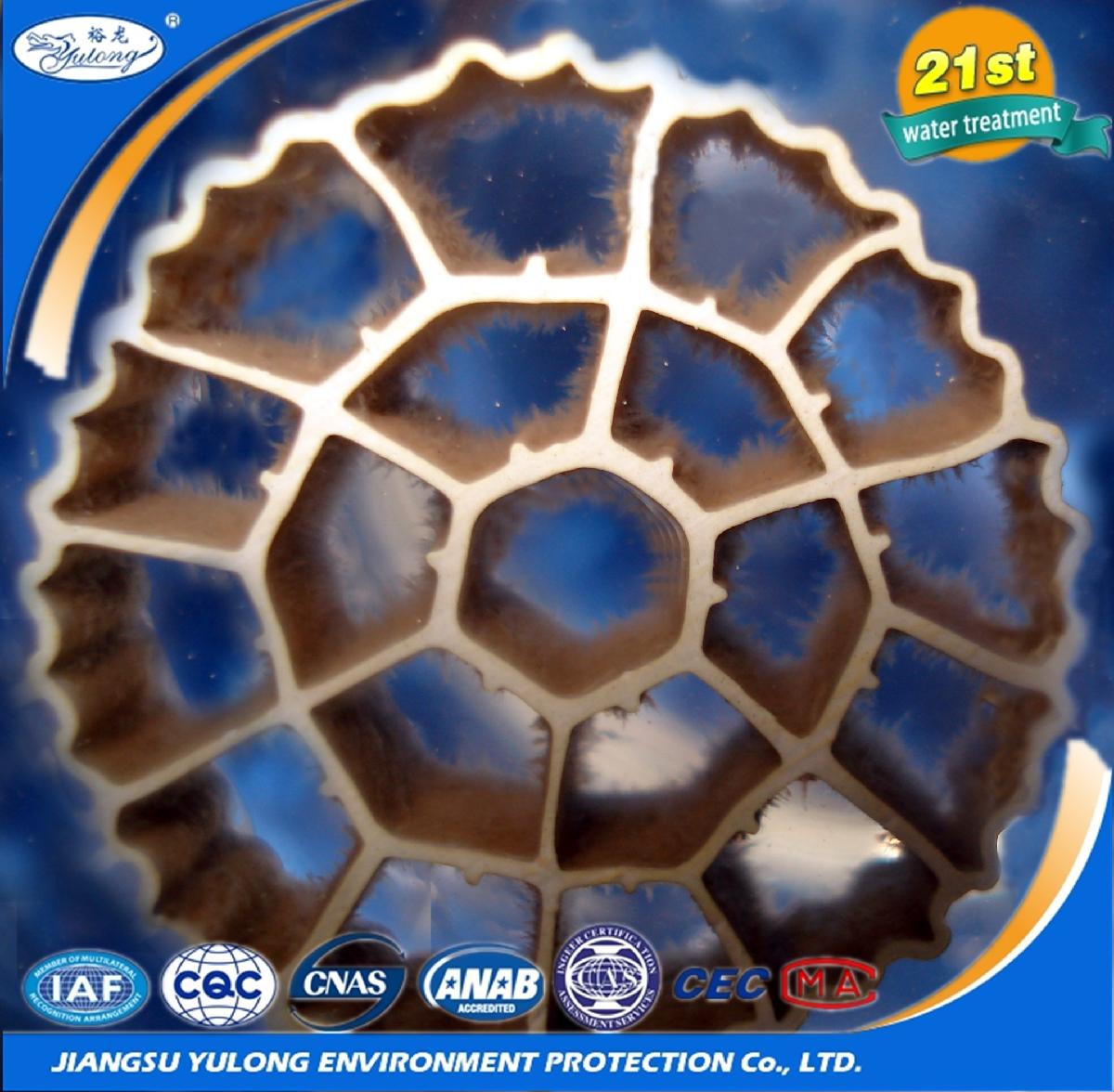

YULONG® MBBR media and ISBAS™ use virgin Polyethylene media with high-effective surface areas to grow biofilm.

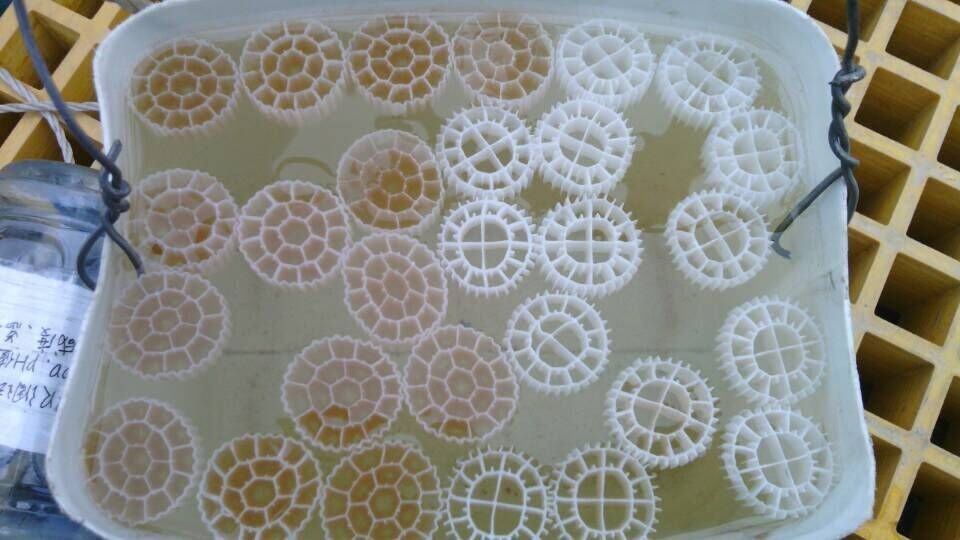

working for 1 year YL-ll Oxic media, biomass:6kg/m3
Features:
1) Bioflim forming time is 3~15 days, the fastest is only 2 days. Do not culture of bacteria in advance. The formula scientific substance support the growth of heterotrophic and autotrophic microorganism within its cells
2) Special Surface Treatment
- Larger and Roughness Inner Surface to Enhance Microble cell Adhension and Biofilm Forming Rapidly
3) Good Hydrophilicity
- Add Hydrophilic Groups to Improves Biofilm Formation and Biomass
4)The surface of our MBBR media is with positive Charge which promote Microorganism Growth , the study report most of microorganisms take negative charge.
5)Biomass (g/m2) 10 - 20
6)High efficience removal of BOD5,COD, TSS etc,

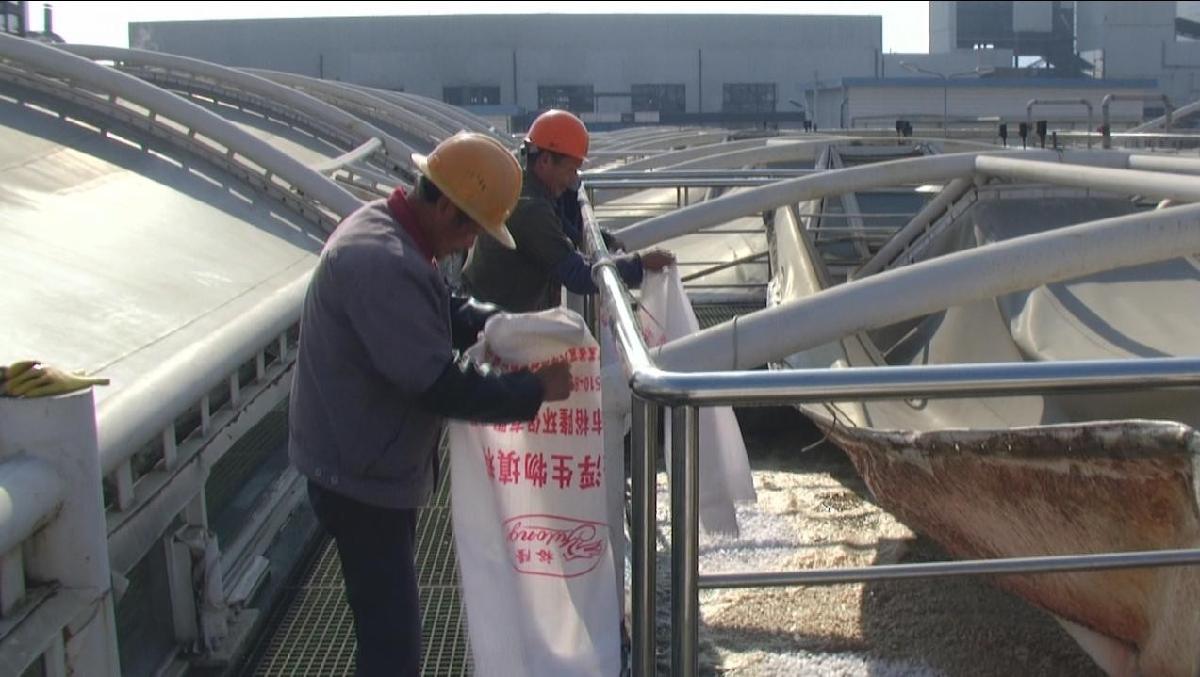

Mainly manufacturing medicines like vitamin, antibiotics and rifamycin. Sewage from this plant is very hard to be treated for its quite complex composition and more than 4% salinity. Upgrading and retrofitting by using YULONG®MBBR bio media, and processing capacity more than doubled.
JIANGSU YULONG ENVIRONMENT PROTECTION CO.,LTD, which is founded in 1995. Our company is engaged in waste water treatment for 21 years. We are a national high-tech enterprise with strong technology team, has been engaging in environment protection industry and related products R&D, production, investment operation, etc.
Standard export,woven package or Carton as your required, 90*45*30(cm)
3-14 working days after received the payment
|
|
|
|
|
|
|
|
|
|
|
|
