Welded wire fence
1.Wire:2.0-6.0mm
2.Mesh opening:50*100, 75*150mm
3.Material:Galvanized/PVC Coated
4.ISO9001
HOT SALE Welded wire fence (commerical type 4/5mm x 200x50mm)
High rigidity
Heavy welded mesh panels with rectangular meshes and horizontal reinforcements guarantee a very high level of rigidity.
Complete system
The system consist of panels in various heights supported by several types of posts, each with a specific fixing system. All Types are available with adapted accessories.
Characters:
- Material : Iron, Low carbon steel
- Surface Finish: Electro galvanized, Hot-dipped galvanzied, PVC coated, Powder coated
- Bending: 1 bends, 2 bends, 3 bends, 4 bends are available
- Gates: double gate or single gate are available
-Colors: customizd various colors such as green, white, blue, grey, black etc
Specification:
Panel Width (m) |
1.8, 2.0, 2.5, 3.0 etc or customized |
Panel Height (m) |
1.5, 1.8, 2.0, 2.2, 2.5, 3.0 etc or customized |
Mesh Hole (mm) |
50x200 as standard 50x100, 55x100, 55x200, 65x100, 65x200 etc |
Wire Diameter (mm) (vertical/horizontal) |
4.0/4.0, 4.0/5.0, 5.0/5.0, 5.0/6.0, 6.0/6.0 |
Post (mm) |
round post, square post, easy post or becaclip post |
Post length (m) |
0.8-3.0 or customized |

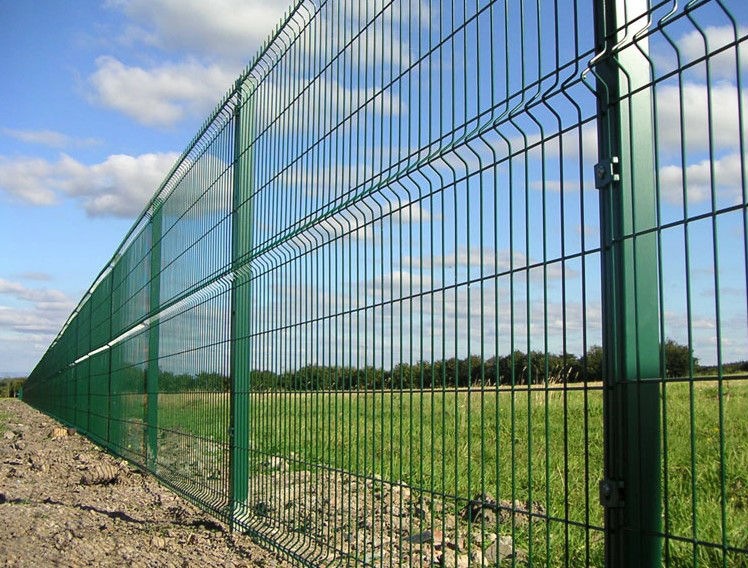

Applications:
1. Public building fence
2. Private place fence, Where visibility is desirable
3. Residential perimeter fence
4. In parks, Zoos and nature reserves
Company Information:
Type: |
Fencing, Trellis & Gates
|
Place of Origin: |
Hebei China (Mainland)
|
Brand Name: |
Jingshengwei
|
Model Number: |
SW-200
|
Frame Material: |
Metal
|
Metal Type: |
Iron
|
Pressure Treated Wood Type: |
Heat Treated
|
Frame Finishing: |
Powder Coated
|
Feature: |
Easily Assembled,Pressure Treated Timbers,Renewable Sources
|
Product name: |
HOT SALE Welded wire fence (commerical type 4/5mm x 200x50mm)
|
Mesh opening: |
50*100, 75*150mm
|
standard height: |
1.5-2.5m
|
standard length: |
1.5-3.0m
|
curves number: |
usually 1-4
|
Post style: |
Peach post, square post and holand post"> Peach post, square post and holand post
|
post installation: |
buried under ground or with flank feet
|
Character: |
Nice appearance corrosion resistance
|
Material: |
Low carbon galvanized steel wire
|
Wire Mesh Fence Color: |
Dark green RAL6005, grassland green RAL 6032
|
