Hot Tack Testing Machine,China Cell price supplier

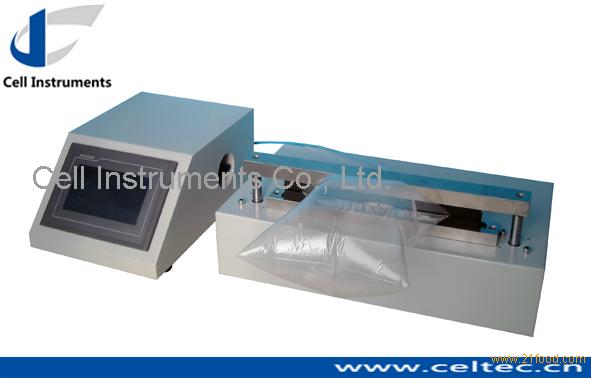

Hot Tack Testing Machine

FOB Price:Price can be negotiated

Production Capacity:100 sets/months

Update Time:2021-12-08

Contact Supplier

Product Description

Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature.

Hot Tack Tester Features

1. Hot tack, heat seal, peeling and tensile test items are available

2. P.I.D. temperature control

3. 7 inch TFT touching screen operation

4. PLC control

5. Aluminum encapsulated sealing jaws

6. Multi-group parameter saving

7. Any testing speed adjustable

8. Auto zeroing, overload and over travel protection

9. Manual and foot switch

10. RS 232 port

11. professional software

Technical Specifications

Items	Parameters
Sealing Temperature	Ambient~250℃
Temp Accuracy	±0.2℃
Heat Seal Dwell Time	0.1~9999s
Hot Tack Dwell Time	0.1~9999s
Sealing Pressure	0.15MPa~0.7MPa
Sealing Jaws	50mmx10mm Teflon Coated
Sealing Jaws Heating	Double Heating
Load Cell	200N(Optional:30N50N100N500N)
Accuracy	0.5 F.S.
Resolution	0.01N
Stroke	500mm

Standards

ASTM F1921 Standard Test Methods for Hot Seal Strength (Hot Tack) of Thermoplastic Polymers and Blends Comprising the Sealing Surfaces of Flexible Webs

ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength

Other Products

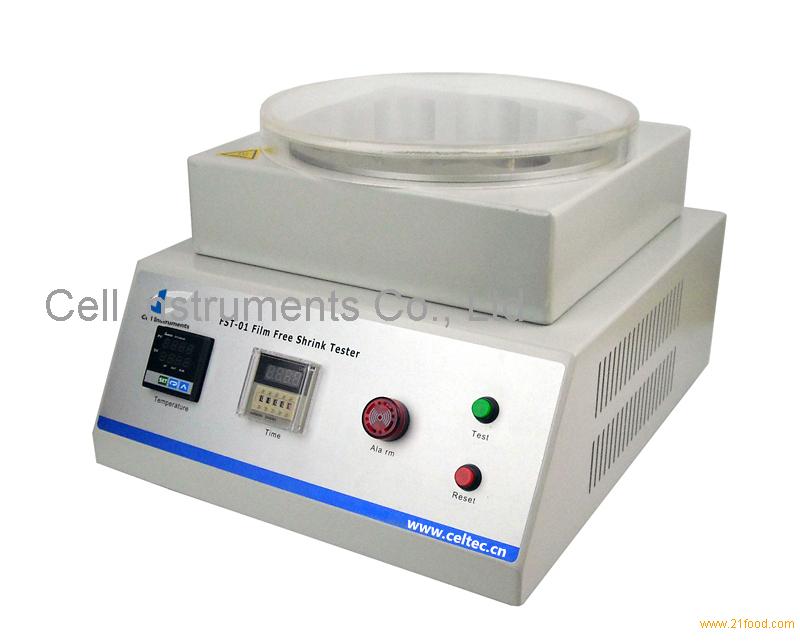

Film Shrinkage Tester
