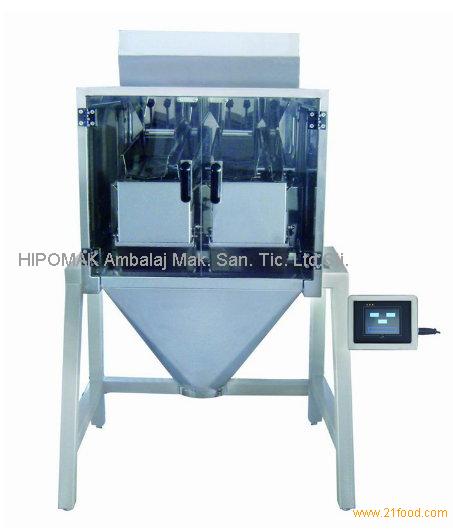

Linear weighers
For medium to large-sized granular products composed of a series of vibratory chutes designed to control the flow of the products towards the weighing cell. As soon as the programmed weight is reached, the vibratory pans come to an immediate halt and the weighing cell empties its contents into the forming tube. The dedicated operating software compensates for the “in flight” product.
SPECIFICATIONS:
- Pneumatic controlled Jaw (open-close)
- PLC Control System
- 4 small lineer vibrator
- 4 big lineer vibrator
- 4 load cell with weighing cup
System Content:
- Easy set up from one product to another
- Automatic cleaning and disposal
- Program can be freely adjusted according to production condition
Construction:
- the machine is rigit and massive..
- Body made of stainles steel ANSI 304 Cr-Ni
- All contact parts are made of Stainless steel
- easy assambly and deassembly and cleaning
• Compatible with CE standarts
| TECHNICAL SPECIFICATIONS
|
|
| Weing range: |
50-10000 gr. |
| Speed: |
30 w/min (depends on products specifications) |
| Power requirement: |
220V, 50Hz, mono faze |
| Accuracy: |
± 5 gr |
| Bucket size: |
7 liters |
HIPOMAK Ambalaj Mak. San. Tic. Ltd.Sti. has been producing vertical packing machines, multi-head weighers and linear weighers, filling units, food processing machines, vertical and Z type elevators, various conveyors and special projects since 1980. Since it was established HIPOMAK following and implementing new technology,have been pioneers on initiation and development of many innovations. Our main aim is to produce qualified and effective machines for presenting our customers much more qualified facilities appropriate for dveloping technology and international standardes. Wishing to be together for many years.
