Product Description

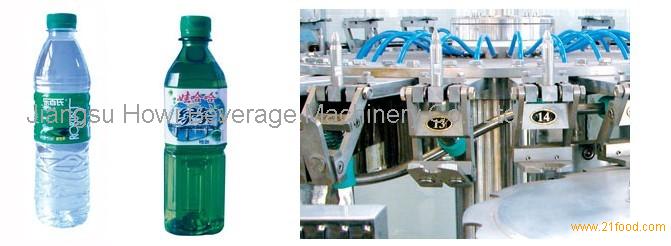

This model is suitable to water bottling line and suitable to bottle PET bottles
1.The bottle-necks are cramped and bottles are suspended during the operation proces. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles.
2.The most advanced technology from Japan and Italy is employed in the design.The gravity fixed liquid surface filling is used.The filling is fast,the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3.Spring cramps are used in the bottle washing proces.The empty bottles can be turned over 180* along the conveying rail.There are two times of internal and external washing,the efficiency of bottle washing is high.
4.The magnetic torque is used for screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed,and the caps will not be damaged,the capping is reliable.
5.The frequency changing technology is used to adjust the operation speed steplessly.The production capacity can be displayed digitally and can be adjusted ranging from 2000bottles to 4000bottle conveniently.
6.The frame is made of high quality stainless steel,covered by S.S.304,the filling valve parts direct contact with water are made in SUS304 stainless steel .The critical electronic components are from Mitsubishi,Omron,etc.,the pneumatic devices are also from iinternational famous brand
Main Technical Standards
| Model |
HW14-12-4 |
HW16-16-5 |
HW18-18-6 |
| Wahing heads |
14 |
16 |
18 |
| Filling heads |
12 |
16 |
18 |
| Capping heads |
4 |
5 |
6 |
| ProductionCapacity(b/h) |
3000(0.5L) |
5000(0.5L) |
8000(0.5L) |
| Motor Power(kw) |
3 |
3 |
3 |
Jiangsu Howi Machinery Co., Ltd. specializes in designing, producing and selling beverage machinery. Based on many years of research and production experience, we absorb advanced technology from at home and abroad to produce all kinds of large and medium Chinese-style beverage machinery.
We are sincerely providing customers with automatic washing, filling and sealing assembly lines for purified water, spring water, fruit juice drink, lactic acid drink, gas containing drink, wine, flavoring and rich mortar drink, complete water treatment devices and automatic washing, filling and sealing assembly lines for barreled drinking water. Moreover, we can meet customers' special needs.
Our company is located in Zhangjiagang City of Jiangsu Province. At present, our company occupies a land area of 30,000 square meters. We have an experienced team of developing and designing experts. Our company always takes the lead in technology, distinctive development and excellent service. In order to guarantee that our product quality adapts the international market, our company has passed the authentications of CE and ISO9001 international quality system successively. Our powerful economic strength and excellent teams of experts have laid a very good foundation for our product quality and after-sales service.
Zhangjiagang city Tianfang Glass Co.,Ltd was founded in 2003,covers an area of 30,000 square meters, more than 300 employees, with fixed assets of 3,000 million. Has a collection of scientific research, development, design, production and management in one efficient team, formed a solar glass production and processing, appliance glass, ultra thin tempered glass, screen printing equipment, glass and beverage cans and other machinery operating in one trade Integrated enterprise. The company has passed the CE and ISO9001: 2008 international quality system certification, the state 3C certification; was rated AAA grade enterprises, and achieved self-import and export rights.
We welcome all domestic and foreign customers, new and old, to come zealously to create magnificence hand in hand.
