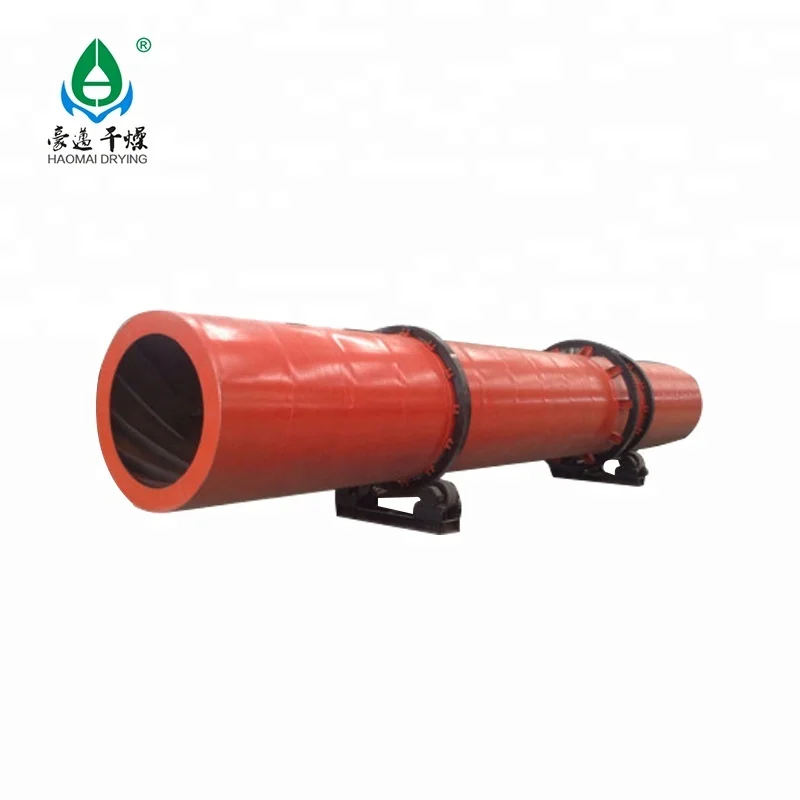

HZG High Efficiency Continuous Rotary Drum Dryer for Squash soybean

FOB Price:Price can be negotiated/set/sets

Min. Order: 1/set/sets/set/sets

Production Capacity:20 set/sets per Month

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Update Time:2023-04-23

Contact Supplier

Product Description

WORKING PRINCIPLE

Rotary Drum Drier is a kind of dryer with rotating cylinder body which is a little bit incline. The wet material is loaded from
 one end from the screw material adding device continuously, and is stirred by the bafflers that are uniformly distributed in the barrel.The material is uniformly distributed and dispersed in the dryer and fully contacts the hot air of counter flow. When the material passing through the cylinder inside surface, it will contact with the hot air circling inside and being dried .Most of the dried product will be discharged from the other end of the dryer. Small part of the fine granule goes into the cyclone separator with the exhaust air. The powder will be separated and collected, and the exhausted air will be ejected to the atmosphere. During the drying course, the material will slowly move to the lower end from the higher part recur to the slowness rotating of the cylinder

 APPLICATION
This dryer widely used in the following industries:
- Drying large particles and heavy material for chemical, mining, metallurgy and other industries, such as: mining, blast furnace slag, coal, metal powder, fertilizer, ammonium sulfate.
 - Drying powder or granular materials which have special requirements, such as: HP vesicant, lees residue, precipitated calcium carbonate, activated clay, magnetic powder, graphite, dregs.
 - Drying the material which required low-temperature and continuous drying process.

FEATURES

(1) Large throughput capacity and continuous operation

 (2) Simple configuration and easy to operate

 (3) Good adaptability of materials

 (4) Low energy consumption

 (5) Low maintenance cost

Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding
tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

Company Profile

Name: Changzhou Haomai Drying Equipment Co., LtdVerified

Main Products: HZG Series Rotaty Dryer,ZLG series Vibration Fluidized Bed Dryer,CT-C Hot Air Circulating Drying Oven

Business Type: Manufacture & Trade

Total Employees: 100 ~ 500

Established Year: 2011

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: Changzhou City, Jiangsu Province, China

Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pharmaceuticals, chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
