cream packing Machine
1 apply for :honey ,tomato sauce,chocolate paste
2 sanitary GMP Standard
3 1-2 head
4 CE GMP
cream filling machine,packing machine
I.CREAM Filling Machine
Description:
1)This machine is the semiautomatic paste filling machine,
which is the idea choice of using widely in Daily Chemical Industry,
Pharmaceutical Industry, Food Industry, Printing ink Industry and Coating Industry.
2)Filling head adopts anti-leakage and anti-pull device.
3)This machine has such features of affordable, high efficiency, and nice appearance.
4Suitable for filling liquid, paste, honey, sauce, granular in the industries of chemical,
foods, cosmetic, pharmaceutical, pesticide, lubricating oil etc.
Technical parameter:
| Machine model | CREAM filling machine CJ-PA100 |
CREAM filling machine CJ-PA300 |
CREAM filling machine CJ-PA500 |
CREAM filling machine CJ-PA1000 |
Paste filling machine CJ-PA3000 |
Paste filling machine CJ-PA5000 |
| Filling speed | 10-35n/min(take water as reference) | |||||
| Filling range | 10-100ml | 30-300ml | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml |
| Air pressure | 0.4~0.6mpa | |||||
| Filling error | ±1% | |||||
| Machine size | 806(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 880(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 1250(L) ×400(W) ×300(H)mm | 1390(L) ×420(W) ×380(H)6mm |
| Machine weight | 42 Kg | 45Kg | 48Kg | 52Kg | 64 Kg | 86 Kg |
| Origin | China, Wuhan Jie Swisu Mechanical & Electrical Co., Ltd. Skype:jrs_daisy |
|||||
one head:
Two heas:
Details:
Factory show:

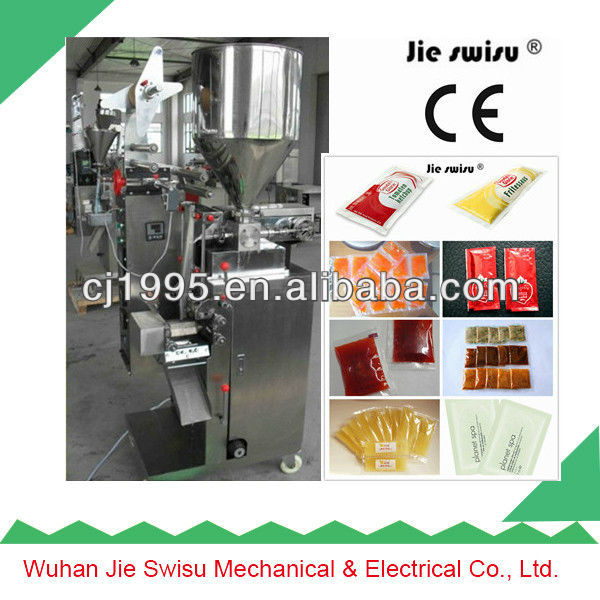

II.CREAM PACKING MACHINE
Automatic Liquid Packing Machine
Automatic Shampoo Packing Machine
Cream Packing Machine
Ketchup Packing Machine
This machine is suitable for automatic packaging of liquid of foods, medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil, fruit sauce,tomato ketchup and honey shower gel, skin lotion, toothpaste , cosmetic cream, fruit jam, edible oil, soy etc
Technique Performance
| Model |
CJL- 320 |
| Capcity |
40-60 bags/min |
| Range of measurement |
1-80ml |
| Bag size |
(L)40-160 (W)40-100mm |
| Power |
1850W |
| Voltage |
380V/50HZ 220V/50-60HZ |
| Packing material |
Paper/the polyethylene,nylon/polyethylene,tea Filter paper,etc |
| Net weight |
260kg |
| Overall dimensions |
800*800*2000 |
Full Features:
1) Be able to weight, bag-making, filling, sealing, cutting, lot number automatically.
2 ) It has color control system which can get the complete trade mark design
(Photo electricity control system).
3) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts
4) Intelligent temperature control by temperature controller to make heat balance better. Use bilingual display screen control system and stainless steel cabinet
5) Fine packaging performance, low noise, clear sealing texture and strong sealing performance
6) With safe plastic box on rotating blade to avoid hurting operators hands
7) Need to change new temperature controller, blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8) With printer (to be able to code the date and batch number) and rotating blade (be able to adjust the length of bag and shape of bag notch edge packing.
Our machine widely used for:
PACKING:
Welcome friends from all over the world :
Come on,dear friends,Contact us!
| Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Food
|
| Packaging Type: |
Cartons
|
Packaging Material: |
Wood
|
Automatic Grade: |
Semi-Automatic
|
| Driven Type: |
Pneumatic
|
Voltage: |
0.4-0.6MPa
|
Power: |
3KW
|
| Place of Origin: |
Hubei China (Mainland)
|
Brand Name: |
chaojie
|
Model Number: |
CJ-X
|
| Dimension(L*W*H): |
300*400*1200MM
|
Weight: |
120KG
|
Certification: |
CE OC
|
| After-sales Service Provided: |
Overseas service center available
|
Filling capacity: |
≤300-500pcs/h
|
pressure: |
0.4-0.6MPa
|
| Filling range(ml): |
2-50ml 10-150ml 30-300ml 50-500ml 100-1000ml
|
Package size(mm): |
950*420*380
|
Feeder size(mm): |
450*450*500
|
| Filling accuracy: |
±1%
|
Name: |
cream filling and packing machine
|
Apply for: |
cream packing machine
|
| Model: |
CJ-X
|
Certificate: |
CE GMP
|
