Instruments for determination of the oxygen air permeability (SYSTESTER China),China SYSTESTER price supplier

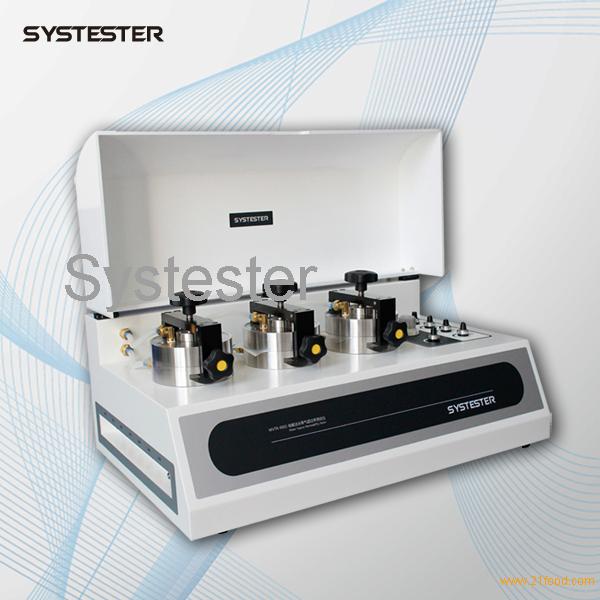

Instruments for determination of the oxygen air permeability (SYSTESTER China) is based on the coulometric sensor method and available for the Oxygen Permeability test of flexible films, sheeting and packages. It can test 3 specimens in one operation with independent results.

Features:

1: Coulometric sensor method

2: Patent technology, Computer control, Data curves display

3: 3 specimens test simultaneously and independently

4: One-button operation, test automatically in whole process

 5: Digital flow adjustment, Digital flow adjustment

6: 3 Chambers temperature sensor

 7: Chambers water bath technology

8: Environment temperature and humidity sensor inside

9: Unit based on embedded system,24bit Δ-Σ AD

10: Pressure, oxygen and  temperature overload protection

 11: Pressure, oxygen and  temperature overload protection

12: Supports DSM system (DSM, lab data management system)

Technical indexes

Test range：

Film:

0.01-6500 cm3/m2·d (Standard)

0.07-6,5000 cm3/m2·d (Optional)

Resolution: 0.001 cm3/m2·d

Package:

0.0001~62 cm3/pkg·d

Resolution: 0.00001 cm3/m2·d

Specimen size:

Film:

size: 150 mm * 94mm

Thickness: less 5mm

Package:

Max size: D120mm * 400mm

Standards

ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, ISO 15105-2, GB/T 19789,

JIS K7126-B, YBB 00082003

Configuration

Delivery:  Main unit, OX-TRANS software, Temperature controller, tank regulator, PCIE card, communication cable, sample cutter, vacuum grease.
